Product	Cabinet lighting/ Cabinet Puck Lights
Model	2R25-1224V-6CCT-Gold
Voltage	12-24V DC
Wattage	2.7W
LED Type	5050 SMD
Trim Color Finish	Gold
Luminous Flux	310 Lumens
Beam Angle	120°

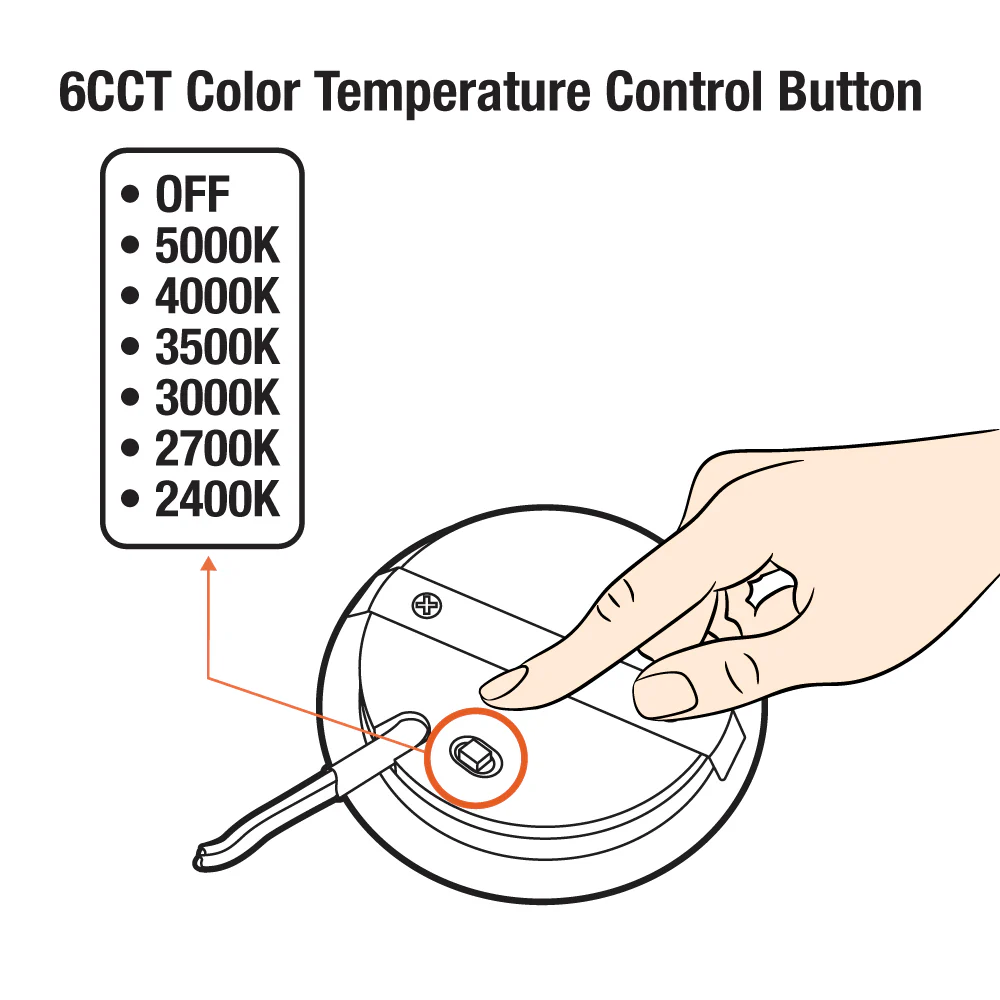

Adjustable Color Temperature	2400K (Sunset White)  2700K (Soft White)  3000K (Warm White)  3500K (Mid-Warm White)  4000K (Natural White)  5000K (Daylight)
Material	Aluminum
IP Rating	IP20 (Dry and Damp Locations)
Rendering Index	CRI>90
Dimmable	Yes on 12V
Wire length	39 inches (1 meter)
Installation Type	Both Flush Mount/ Recessed and Surface Mount Installation

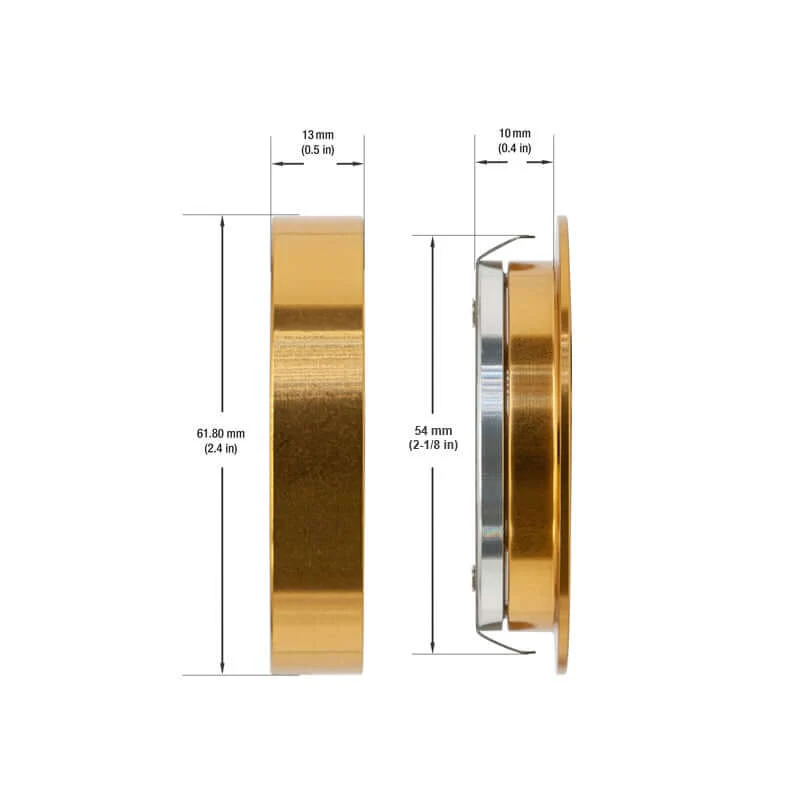

Dimensions	61.8 mm (2.4 in) Dia x 10 mm (0.4 in) Depth
Cut Size	54 mm (2-1/8 inch)
Certification

Features:

• Cabinet puck lights designed for modern kitchen cabinets, shelves, and wardrobes

• Powered by 12V or 24V voltage with a wattage of 2.7W

• Dimmable and have a wire length of 39 inches (1 meter)

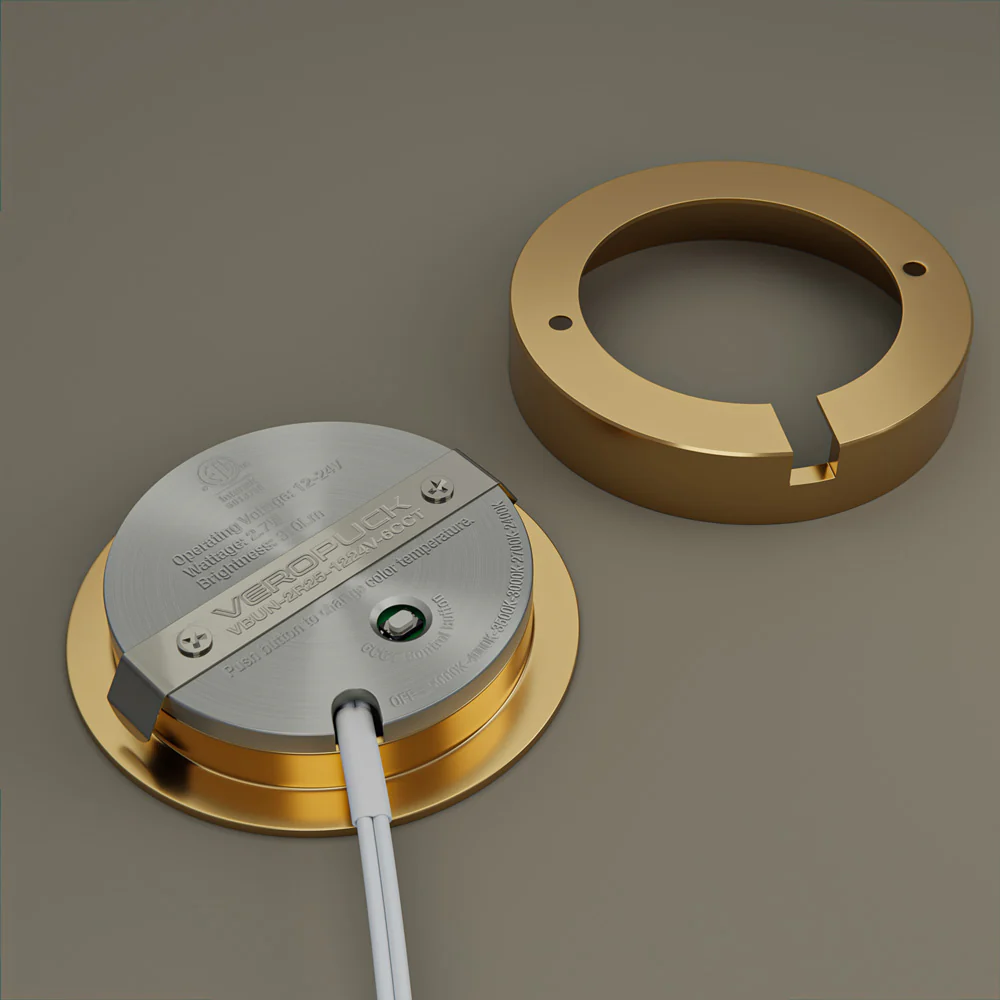

• Can be installed as both flush mount/recessed and surface mount installation types
• IP20 rated, providing protection from a large part of the body such as a hand, and applicable only for dry locations
• Come with push springs, making them easy to install for the flush mount feature
• Alternatively, they can be directly screwed onto the surface
• Compatible with dimmer controls that have the same input rating as the dimmable power supply driver it connects to
• Other low voltage dimmers are also compatible
• Come with 3 feet of wire AWG 22
