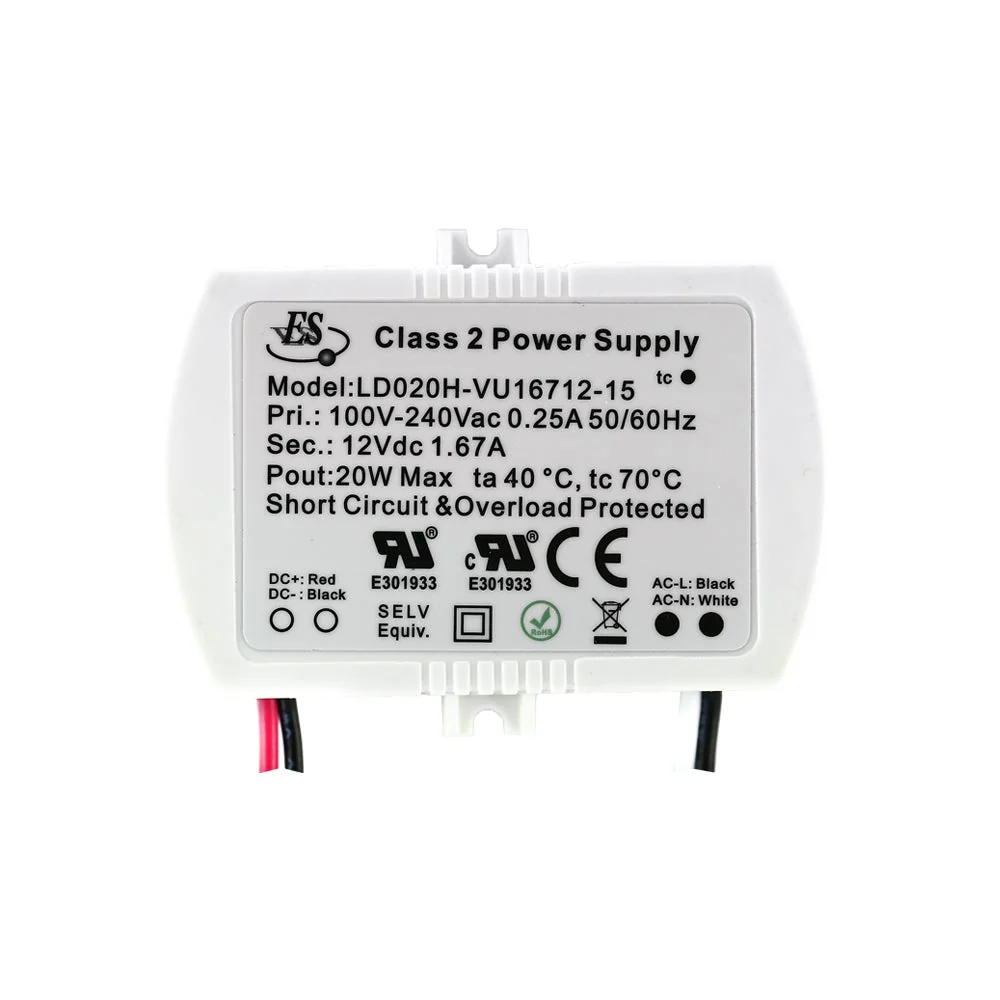

ES LD020H-VU16712-15 Constant Voltage LED Driver 12V 20W 1670mA
| Model | LD020H-VU16712-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output Regulated Current | 1.67A |
| Output Power | 20W max |
| Dimmable | No |
| IP Rating | IP20 |
| Dimensions | 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in) |
| Class Certification | Class 2/ Class II |
| Ambient temperature (Ta) | 40°C |
| Case Temperature (Tc) | 70°C |
| Certification |

|
| Short Circuit and Overload Protected |
| Applicable for dry and damp locations |
$6.39
Original: $21.29
-70%ES LD020H-VU16712-15 Constant Voltage LED Driver 12V 20W 1670mA—
$21.29
$6.39Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | LD020H-VU16712-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output Regulated Current | 1.67A |
| Output Power | 20W max |
| Dimmable | No |
| IP Rating | IP20 |
| Dimensions | 83 x 53 x 32mm (3.26 x 2.08 x 1.26 in) |
| Class Certification | Class 2/ Class II |
| Ambient temperature (Ta) | 40°C |
| Case Temperature (Tc) | 70°C |
| Certification |
|
| Short Circuit and Overload Protected |
| Applicable for dry and damp locations |
