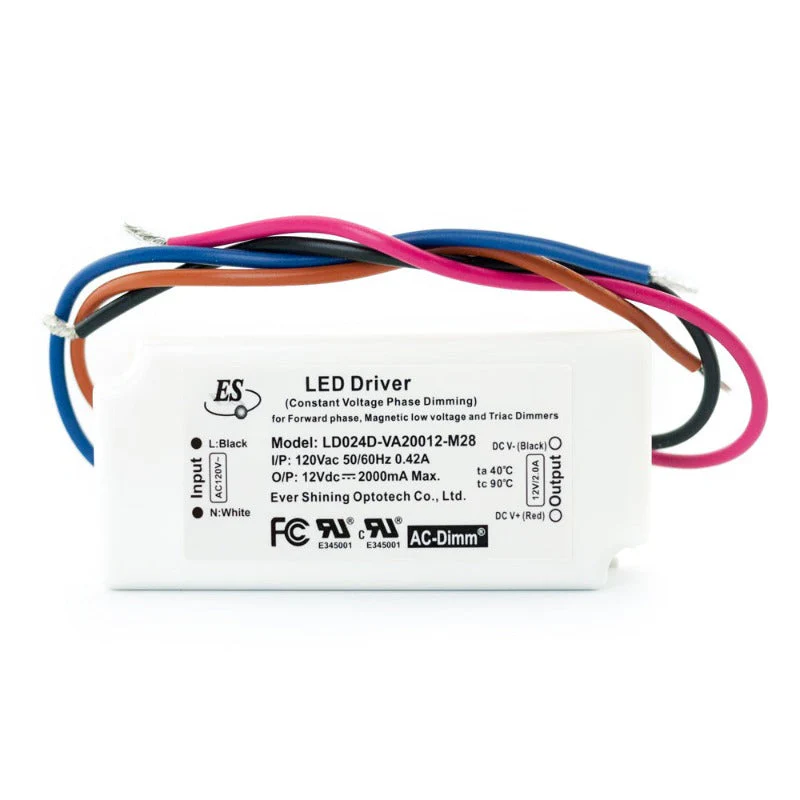

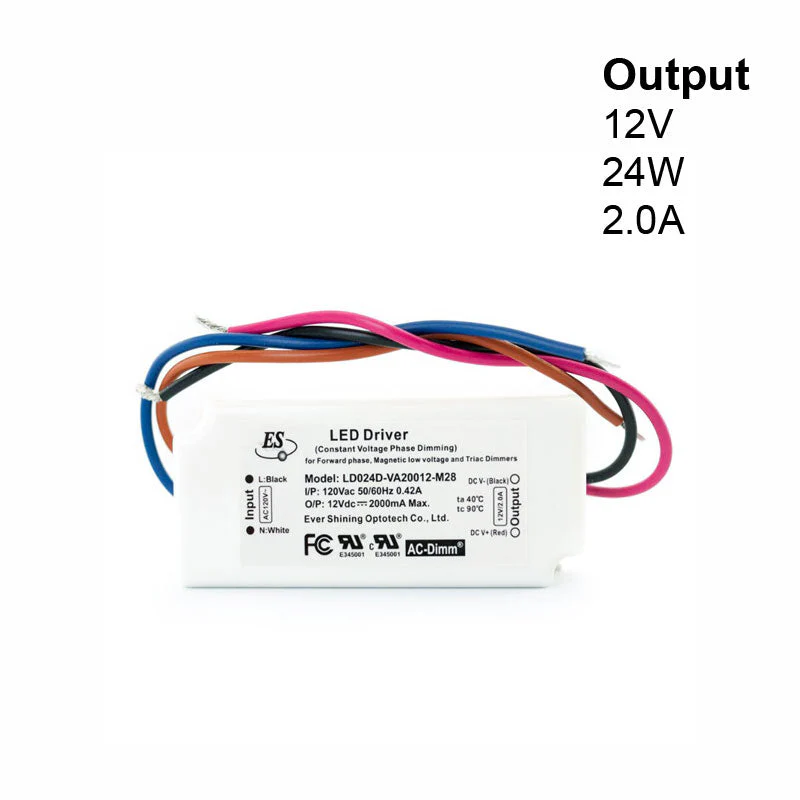

ES LD024D-VA20012-M28 Triac Dimmable Constant Voltage LED Driver, 12V 2A 24W
| Model | LD024D-VA20012-M28 |
| Input voltage | 120V AC |
| Input current | 0.42A |
| Frequency | 50-60Hz |
| Output voltage | 12V DC |
| Output regulated current | 2000mA |
| Output max Power | 24W max |
| Ambient Temperature (Ta) | 40°C |
| Case temperature (Tc) | 90°C |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage) |
| IP Rating | IP20 |

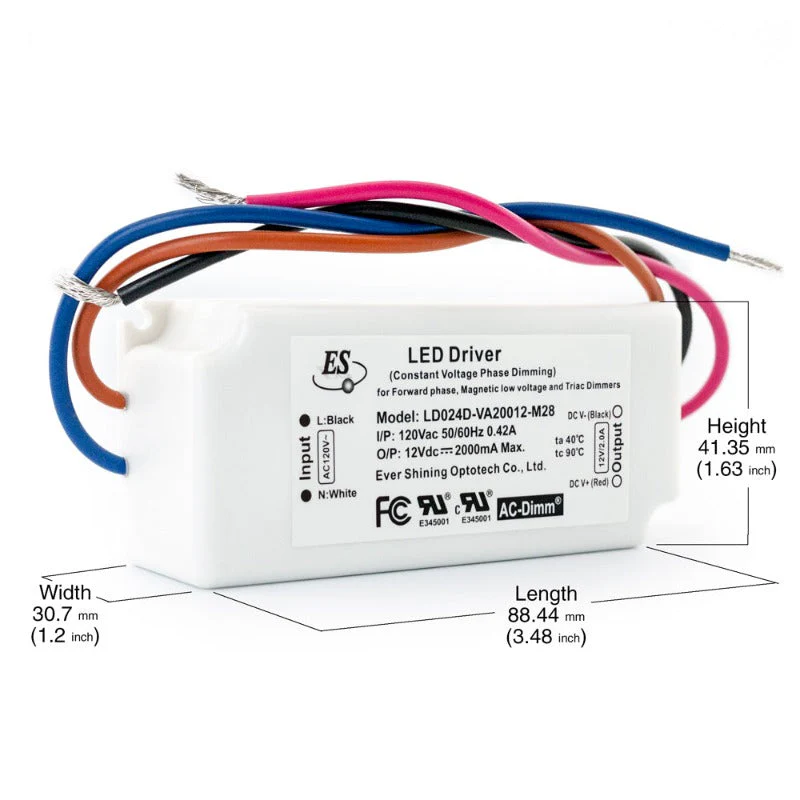

| Dimensions | 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in) |
| Certification |

|
| Applicable for Dry and Damp locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Product: ES LD024D-VA20012-M28 J-Box Triac Dimmable Constant Voltage LED Driver
- Input voltage: 120V AC
- Input current: 0.42A
- Frequency: 50-60Hz
- Output voltage: 12V DC
- Output regulated current: 2000mA
- Output max power: 24 W max
- Dimming options: Phase, Triac, or Magnetic Low Voltage dimmers
- IP rating: IP20 (suitable for indoor use)
- Ambient temperature range: up to 40°C
- Case temperature range: up to 90°C
- Dimensions: 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in)
- Certification: FCC certified
$12.11
Original: $40.38
-70%ES LD024D-VA20012-M28 Triac Dimmable Constant Voltage LED Driver, 12V 2A 24W—
$40.38
$12.11Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | LD024D-VA20012-M28 |
| Input voltage | 120V AC |
| Input current | 0.42A |
| Frequency | 50-60Hz |
| Output voltage | 12V DC |
| Output regulated current | 2000mA |
| Output max Power | 24W max |
| Ambient Temperature (Ta) | 40°C |
| Case temperature (Tc) | 90°C |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage) |
| IP Rating | IP20 |
| Dimensions | 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in) |
| Certification |
|
| Applicable for Dry and Damp locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Product: ES LD024D-VA20012-M28 J-Box Triac Dimmable Constant Voltage LED Driver
- Input voltage: 120V AC
- Input current: 0.42A
- Frequency: 50-60Hz
- Output voltage: 12V DC
- Output regulated current: 2000mA
- Output max power: 24 W max
- Dimming options: Phase, Triac, or Magnetic Low Voltage dimmers
- IP rating: IP20 (suitable for indoor use)
- Ambient temperature range: up to 40°C
- Case temperature range: up to 90°C
- Dimensions: 88.44 x 30.7 x 41.35mm (3.48 x 1.2 x 1.63in)
- Certification: FCC certified
