Model	B2
Voltage	3V (2*AAA Battery)
Transmission Frequency	2.4 GHz
Transmitting Power	6 dBm
Control Distance	30m
Working Temperature	-20~60°C
Standby Power	20uA
Dimensions	86mm (3.38 in) x 86mm (3.38in) x 19mm (0.73in)



Features:

• Each zone needs one Mi-Light controller for transmitting signals from the lights to the wireless panel controller.
• The panel looks aesthetically appealing with its tempered glass panel and touch screen IC.
• The panel has a high-precision touch screen and can be used in both residential and commercial applications like big/small businesses, hotels, stores, restaurants, etc.
• The control panel allows you to touch for setting the intensity and the color of white light. It is easy to use, and the expressive marking makes a good check. The panel can be easily attached to the wall. Thereby gaining elegance

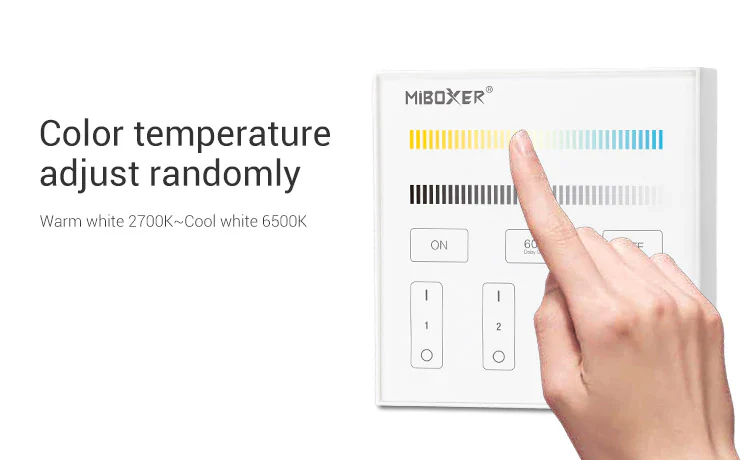

• The panel brings different white shades (2700K-6500K) and eliminates the need of crowding different color temperature LEDs
• It easily adapts to hybrid (Warm White to Cool White) dimmable LED lights or the dual white LED strips of 12V – 24V.

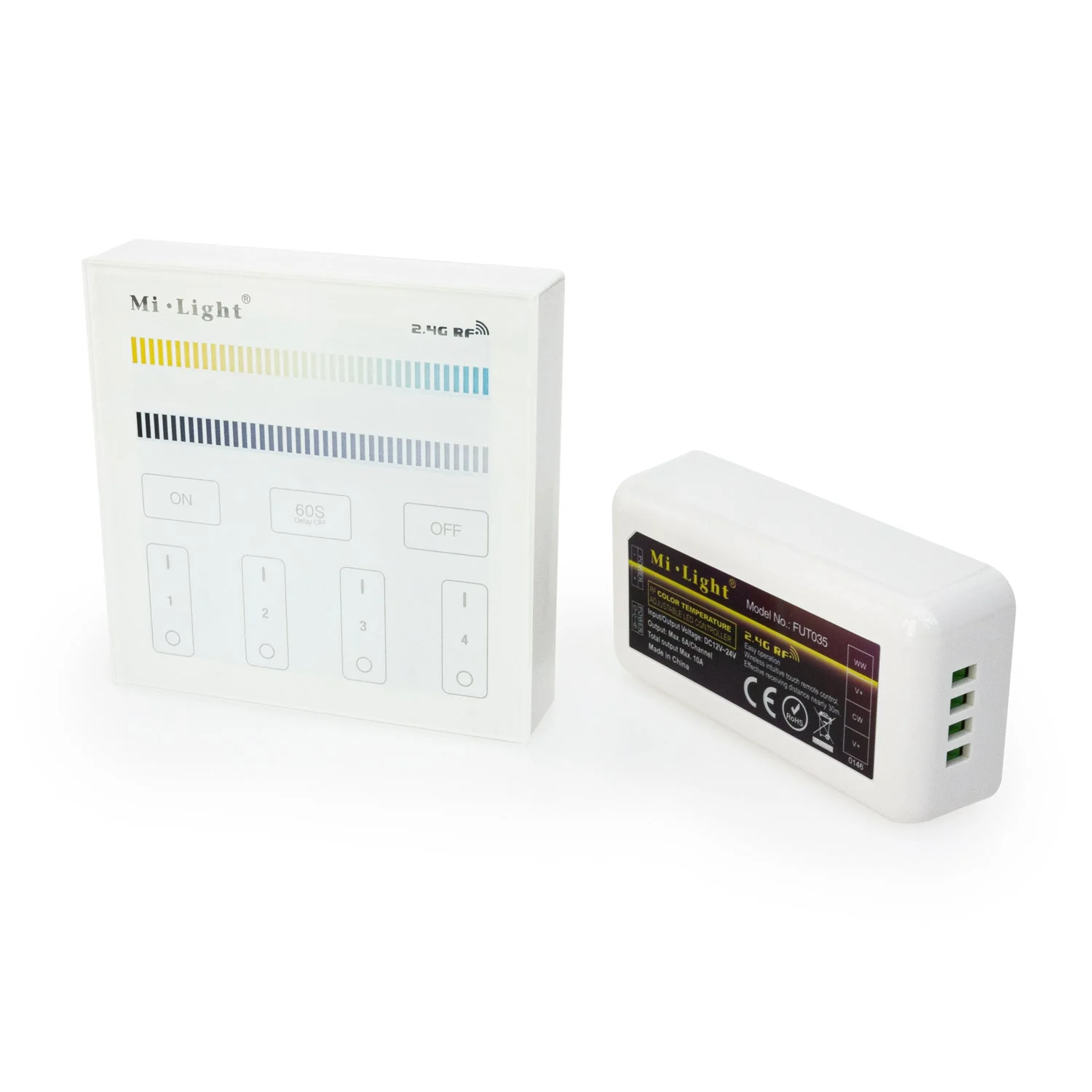

• Having this type of controller allows you to manage four separate zones. Each zone needs one FUT035 receiver for transmitting signals from the lights to the wireless panel controller.
• Mi-Light 4-Zone dual white B2 Panel Remote Controller is an innovative product, which is used to control dual white LED lighting in a wide temperature range.
• The Mi-light saves really large sums of money. Precise management allows the use of only the specific points of light needed at the time. The controller operates over a distance of thirty meters.

Link: Turn off the power, then turn on again 5 seconds, press ”I” 3 times within 3 seconds. The Led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again after 5 seconds, press “I” 5 times within 3 seconds. The Led light blinks 10 times swiftly when it is done.
