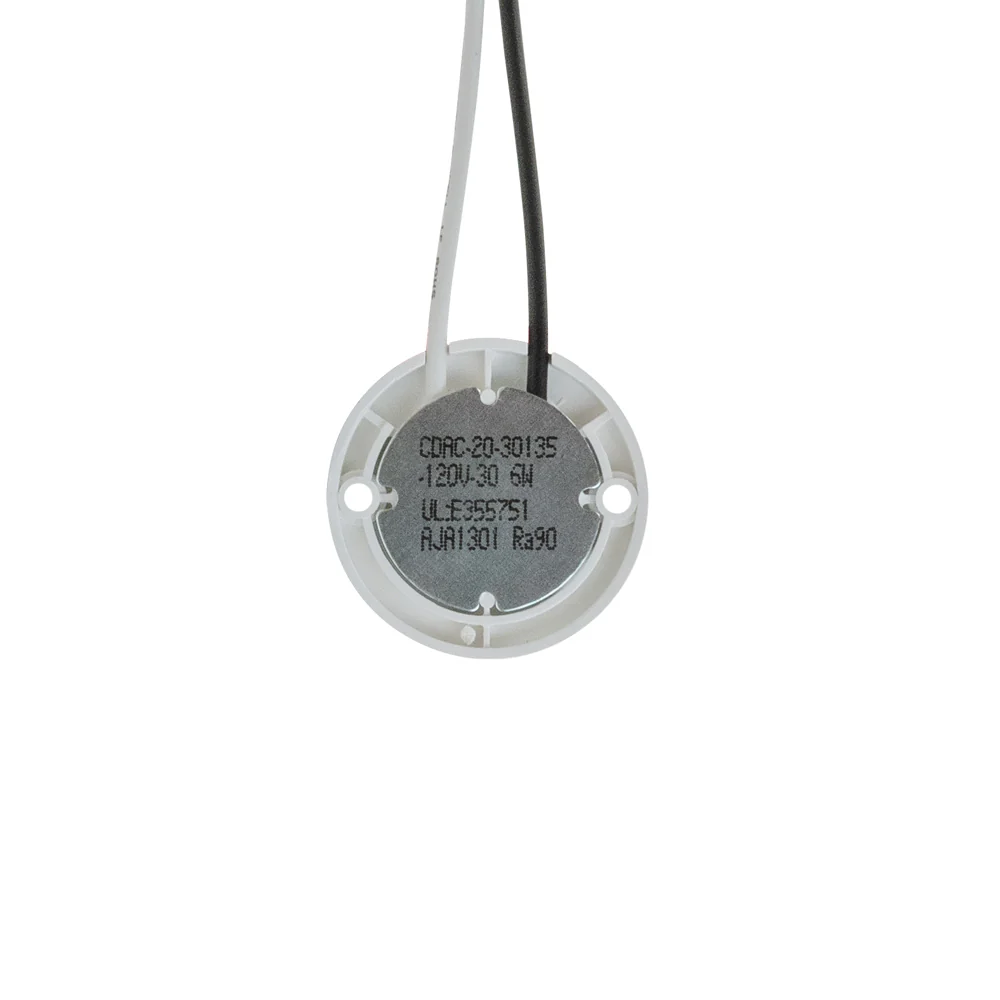

CDAC-20-30135-120V-30 COB Paragon LED Module with H42135AC LED Holder, 120V 6W 3000K
| Model | CDAC-20-30135-120V-30 |
| COB Holder Model No | H42135AC |
|
LED Type |
COB LED |
| No LED chips | 20 |
| Wattage: | 6W |
| Voltage: | 120V AC |
| Luminous Intensity | 420 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅42.3mm (1.66 in) x H5.88mm (0.23 in) |
| COB Module Outer Diameter | ∅27 mm (1.06 in) |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB LED Holder, Thermal Pad |
| Certifications |  |
Features:
- Low power consumption and high energy efficiency.
- Suitable for damp locations.
- An aluminum heat sink is required to prevent overheating, as failure to do so may result in serious luminous decay.
- COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
- Ground light fixtures during the design process.
- COB LEDs are commonly used in various types of luminaires.

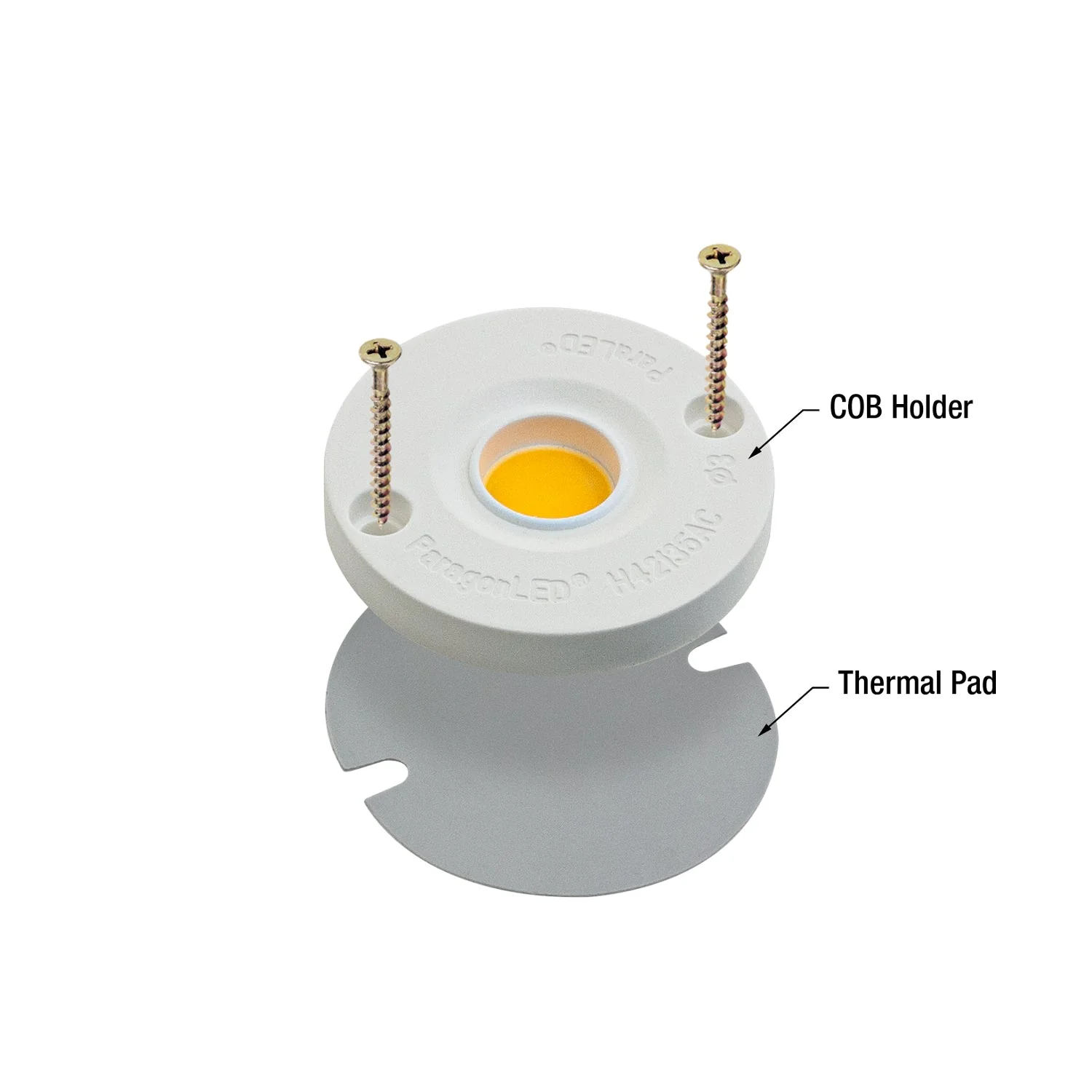

- The COB holder allows for mechanical securing, electrical connection, and pressing to a heat sink.
- The silicone grease thermal pad serves as a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
