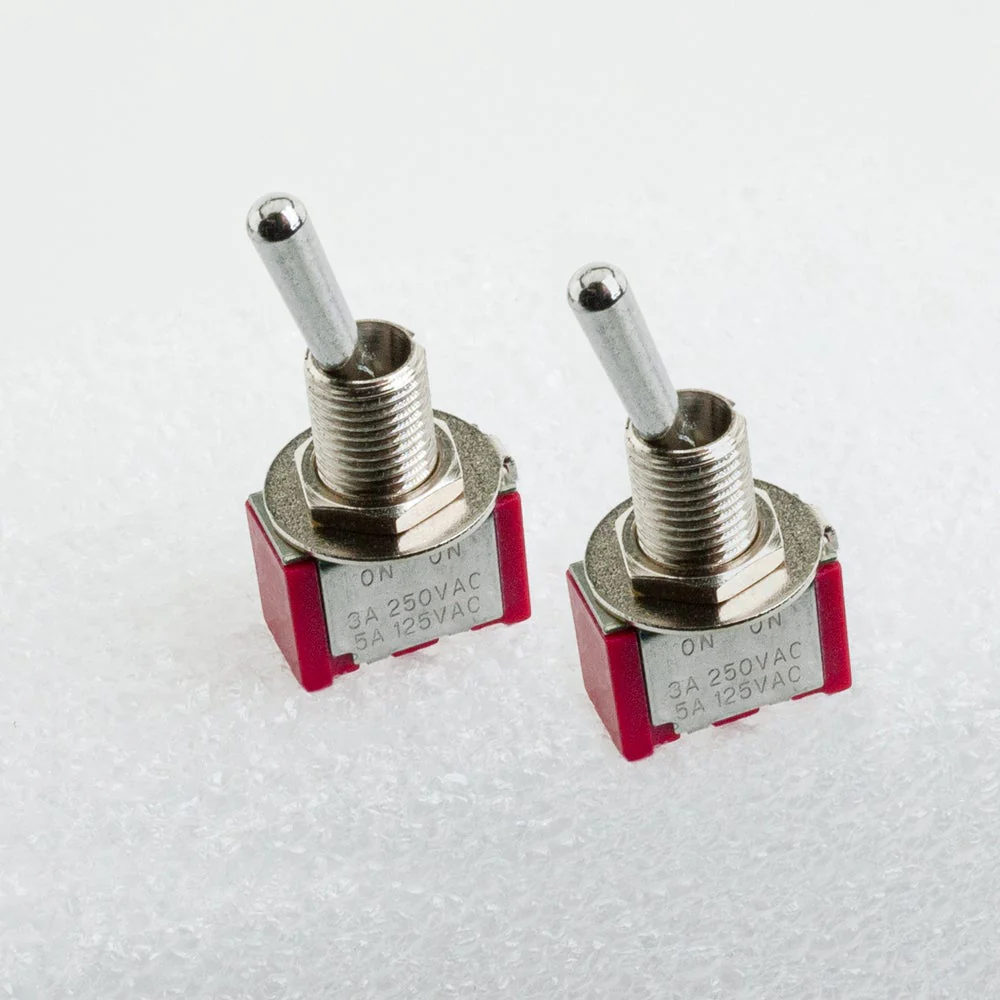

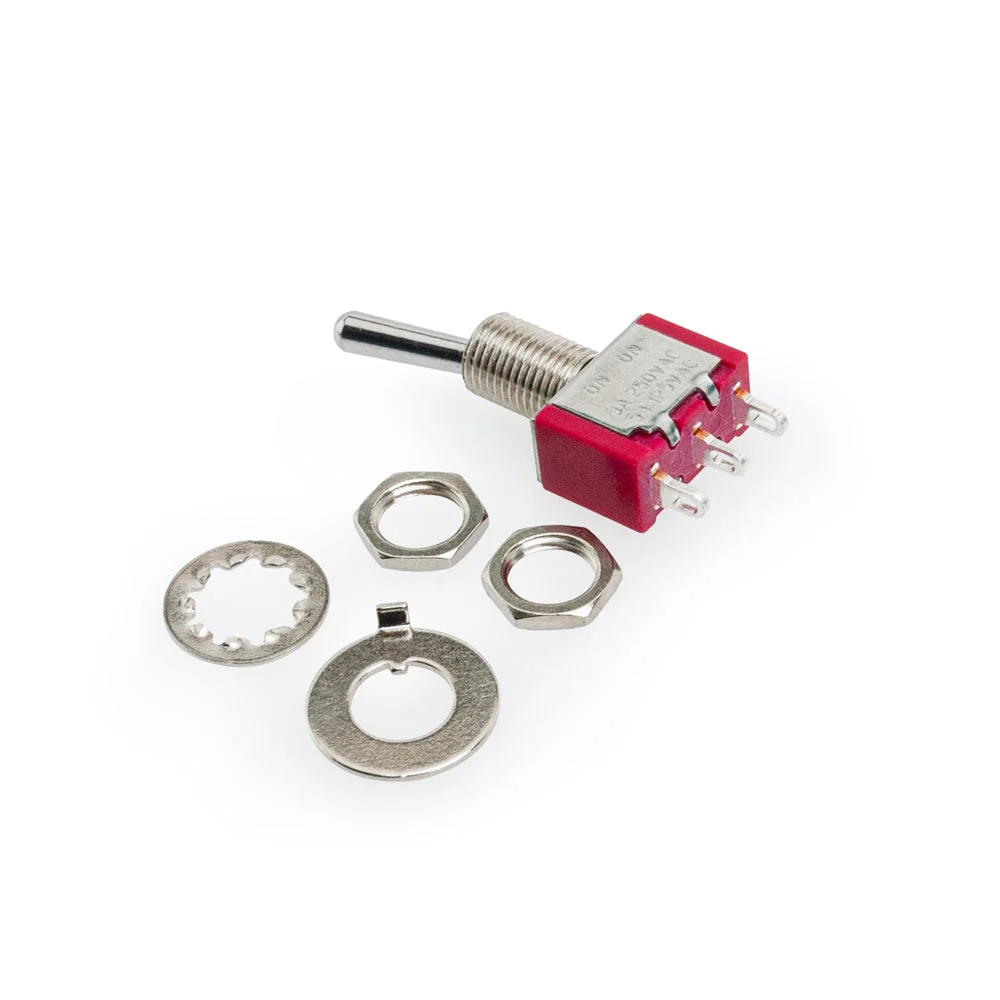

SPDT Toggle Switch 5A 125VAC On-On (Pack of 2)
| Voltage Rating | 125V AC at 5A • 250V AC at 3A |
| Actuator Material | Brass, Stainless Steel Coated |
| Case | Red Thermoplastic |
| Termination | Wire Lug |
| Circuit Type | SPDT |
| Switch Function | On-On |
| Dimension | Height 33mm (1.29in) Ø12mm (0.47in) |
Feature:
- ON-ON switch has three terminals, common and two switched, when one is on the other is off, and vice versa. (single pole, double throw).
- It is a single-pole, SP switches control only one electrical circuit with a double-throw (SPDT).
- Throw refers to the extreme position of the actuator, This switch closes a circuit in the Up position, as well as the Down position (On-On).
- These switches are well suited for designs requiring human interface via a toggle or rocker-style switch.
