Model	3V24S100D
Case Code	AM103
Input Voltage	347V AC
Input Current	0.34A
Frequency	50/60Hz
Output Voltage	24V DC
Output regulated Current	4.1A
Output Power	100W
Dimmable:	Yes (3 in 1 Dimming- PWM, 0-10V, resistance)
Waterproof	No (Damp locations only)
IP Rating	IP65
Dimensions	241.3 × 43.9× 32.37mm (9.5 x 1.73 x 1.27 in)
Class Certification	Class 2 / Type TL
Starting Temperature	-40°C
Certification

Features:

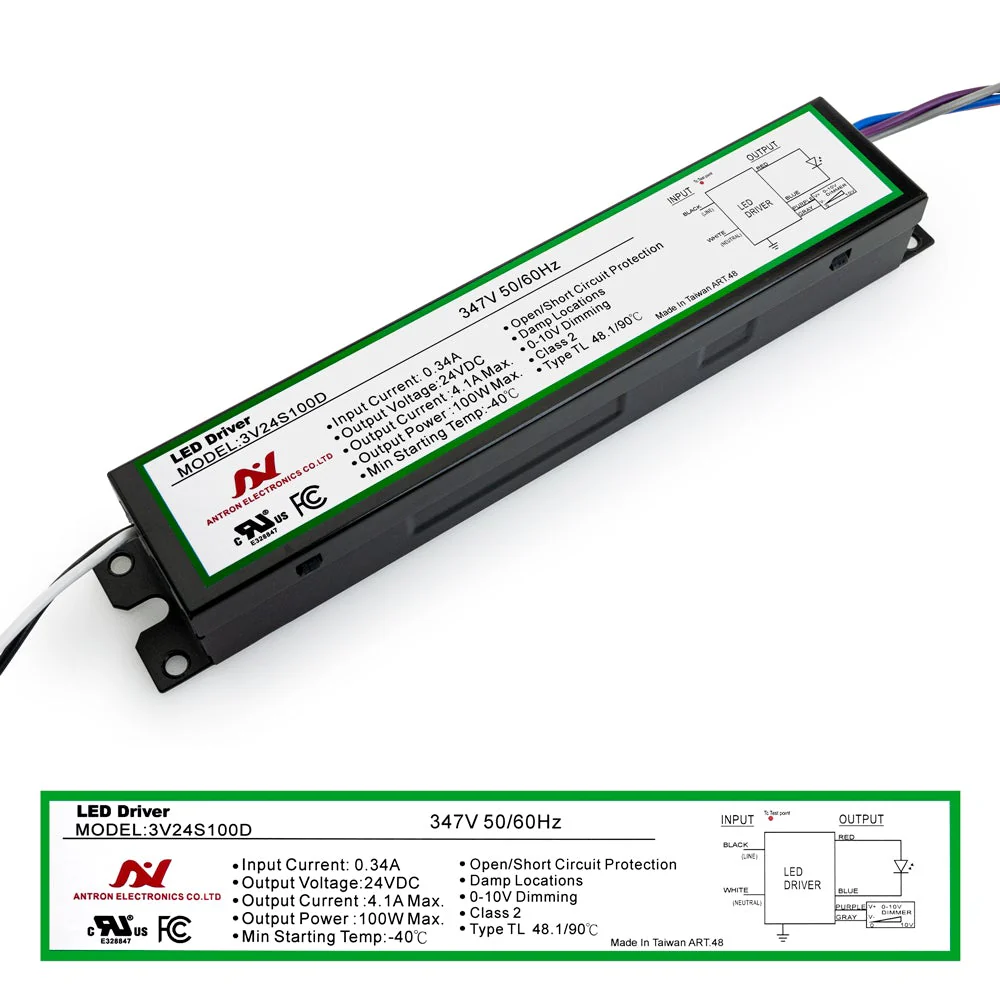

• The ANTORN 3V24S100D LED driver provides a constant voltage output of 24V DC for LED lighting systems.
• Model number: 3V24S100D, case code: AM103.
• Input voltage range: 347V AC, input current: 0.34A, frequency range: 50/60Hz.
• Output voltage: 24V DC, regulated current output: 4.1A, maximum output power: 100W.
• Designed for use in damp locations, not waterproof.
• Dimmable and supports 3 in 1 dimming techniques: PWM, 0-10V, and resistance dimming.
• Rated IP65, protected against dust and low-pressure water jets from any direction, suitable for outdoor applications.
• Class 2 / Type TL certified, designed with double insulation, safe for use in a Class 2 circuit.
• Starting temperature: -40°C, suitable for extreme cold environments.
• Dimensions: 241.3 × 43.9 × 32.37mm (9.5 x 1.73 x 1.27 in), compact and versatile for LED lighting systems.
