Model No	CBCC-24-20124-9V-30
COB Holder Model No	G21100110
LED Type	COB LED
Wattage	6W
Voltage	9V DC
Luminous Intensity	450 lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

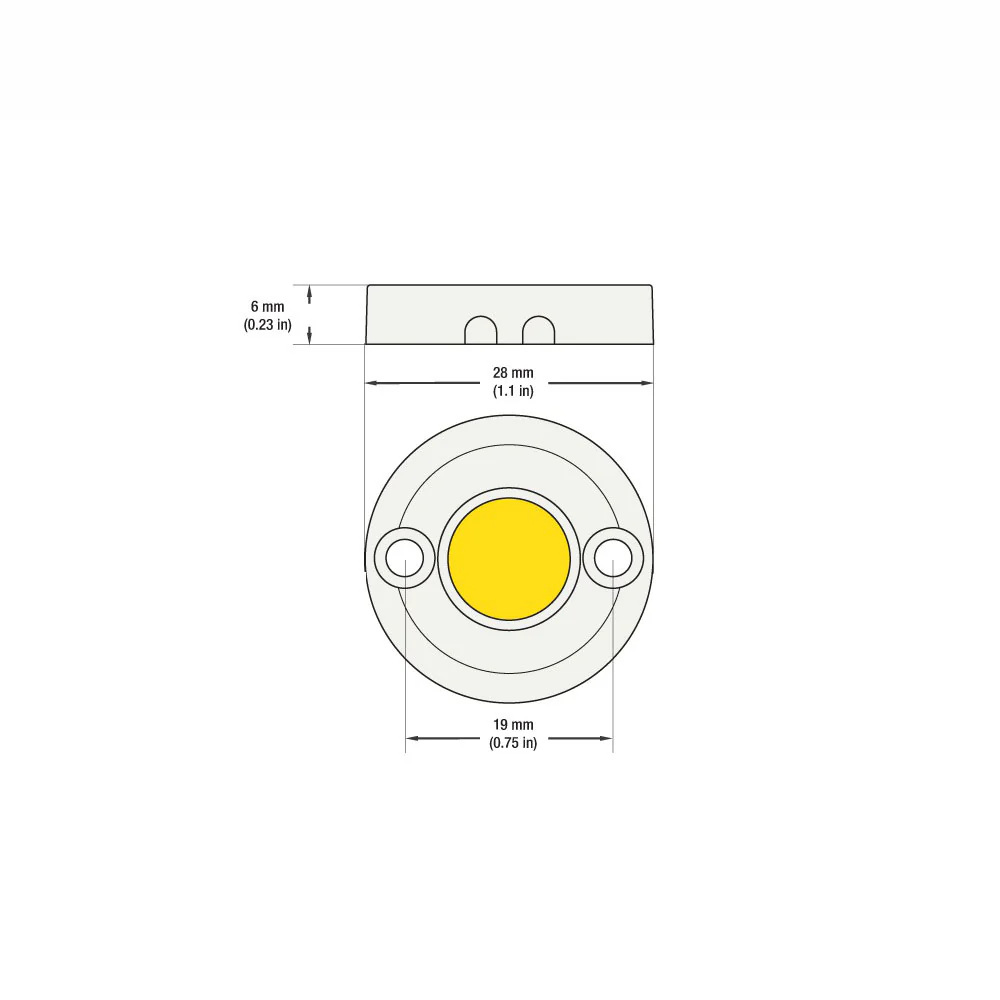

COB Holder Dimensions	∅28 x H6 mm (1.1 x 0.2 in)
COB Module Outer Diameter	∅12.3mm (0.4 in)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃

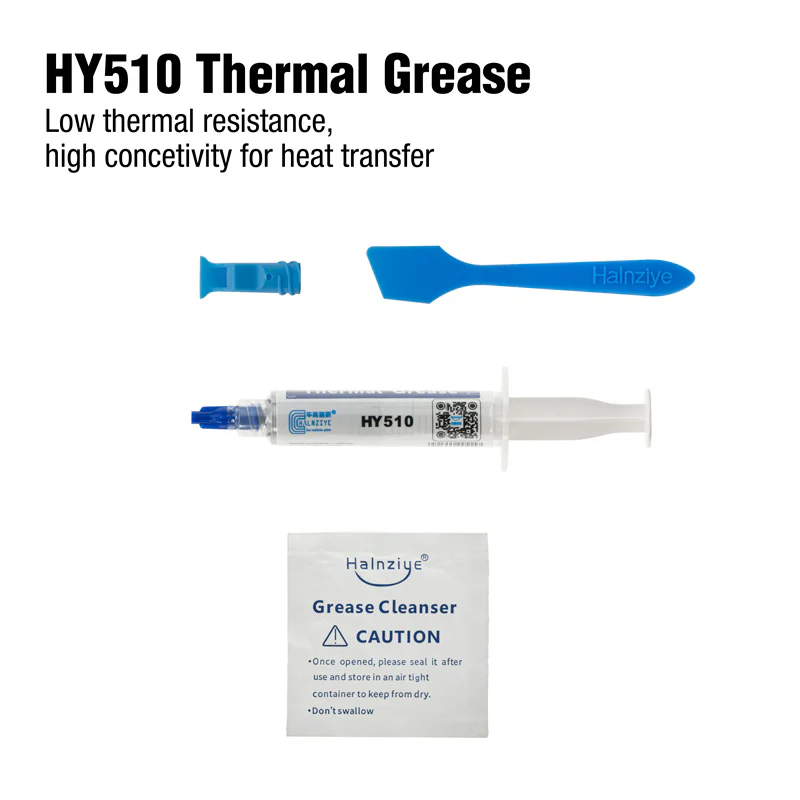

Included Content	COB Module, COB Holder, Thermal Grease HY510 (5gr)
Certifications

Features:

• Designed to be used with G21100110 LED Holder

• Operates on 9V DC with a power consumption of 6W
• Produces warm white light with color temperature of 3000K and CRI>90
• Dimmable and suitable for use in damp locations (IP20 rating)
• Requires aluminum heat sink to prevent overheating and luminous decay
• More energy-efficient and produces brighter and higher quality beam output than older LED technologies
• Suitable for use in almost every kind of luminaire
• Comes with COB Holder, Thermal Grease HY510 (5gr), and is UL certified
• Grounding light fixtures is essential for safe and efficient operation
• Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
