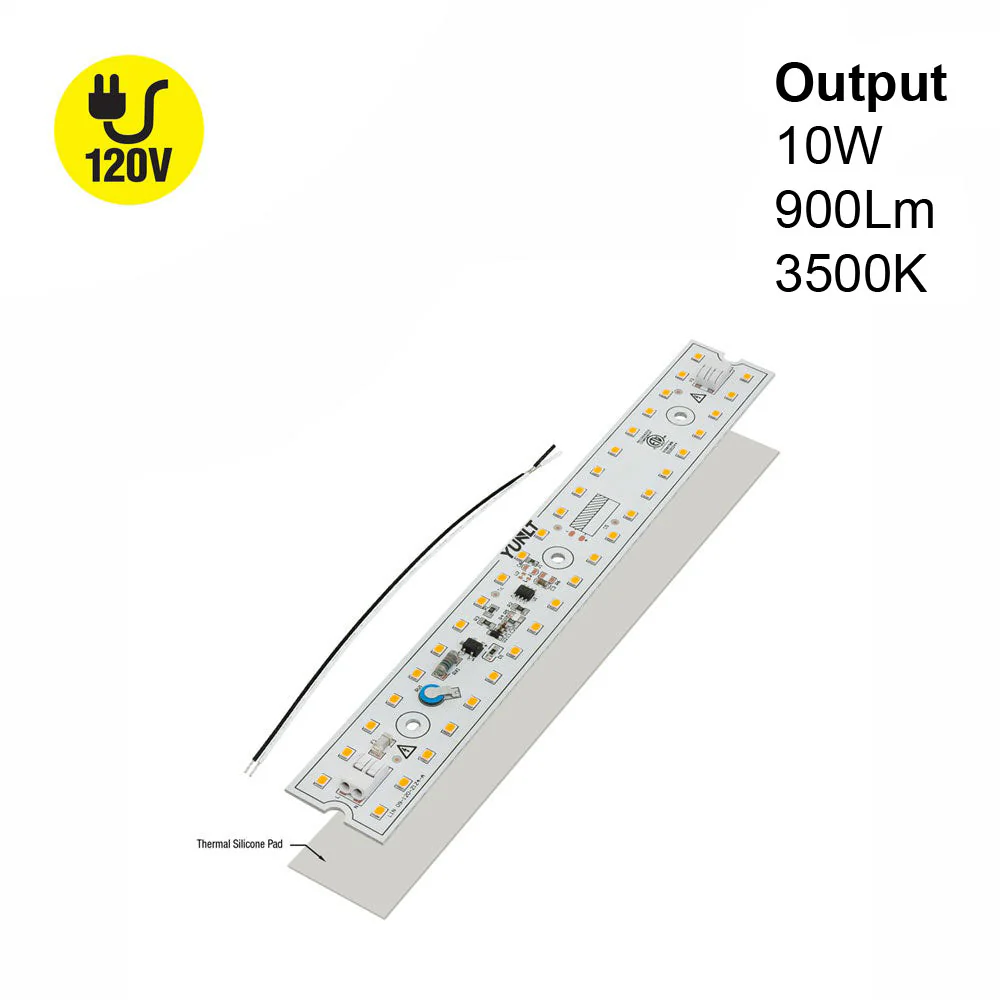

Product Description

Product	LED Module
Model No	LIN 09-010W-935-120-S3-Z1A
No of LEDs	40
Wattage	10W
Voltage	120V AC
Luminous Flux	900 lumens
Color Temperature	3500K (Mid-Warm White)
Rendering Index	CRI>90
Power Source	AC
Dimmable	Yes
Base Material	Aluminum
Package Components	LED Module Thermal Silicon Pad 6inch Black and White power feed

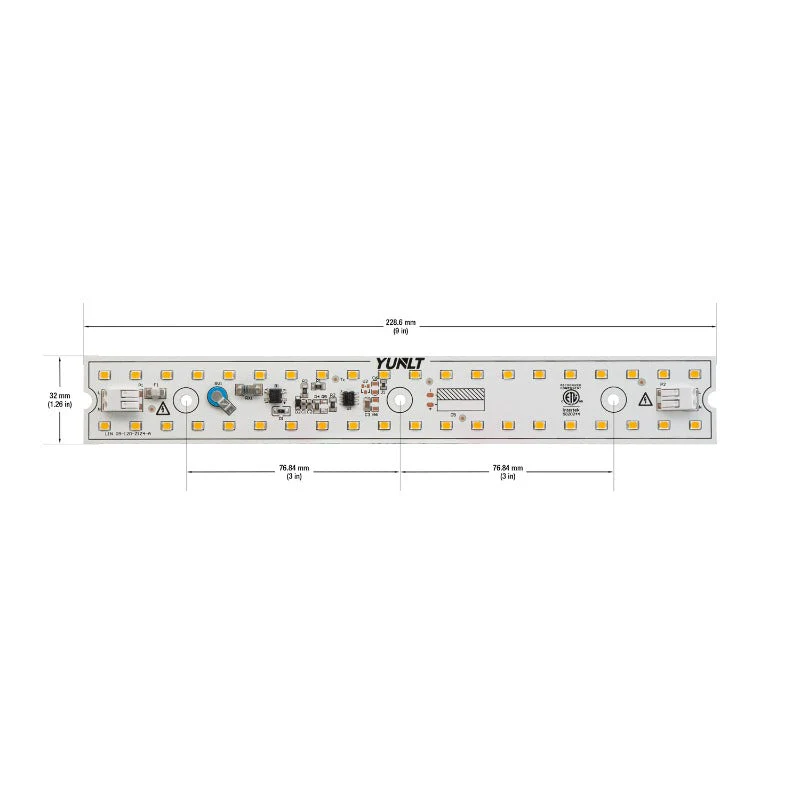

Dimensions	228.5mm (9 inch) x 32.0 mm (1.25 inch)
Diameter of the screw hole	3.5mm (0.13 in)
Height	6mm (0.23in)
Certification



Features:

• High-quality LED lighting product for various applications
• Made up of 40 individual LED lights with a total wattage of 10W and a luminous flux of 900 lumens
• Voltage input of 120V AC
• Emits Mid-warm white color temperature of 3500K, creating a comfortable and inviting environment
• High color rendering index (CRI) of over 90, ensuring accurate and vibrant colors
• Dimmable LED Module allows you to adjust the brightness to suit your needs
• Powered by AC for convenient and easy installation
• Base material made of aluminum, providing efficient heat dissipation and ensuring the product stays cool even after prolonged use
• Package components include LED module, thermal silicon pad, and 6-inch black and white power feed
• Dimensions of 228.5mm (9 inches) in length and 32.0mm (1.25 inches) in width, with a screw hole diameter of 3.5mm (0.13 inches)
• 9 inch Linear ZEGA LED Module 120V 10W 3500K
• Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
