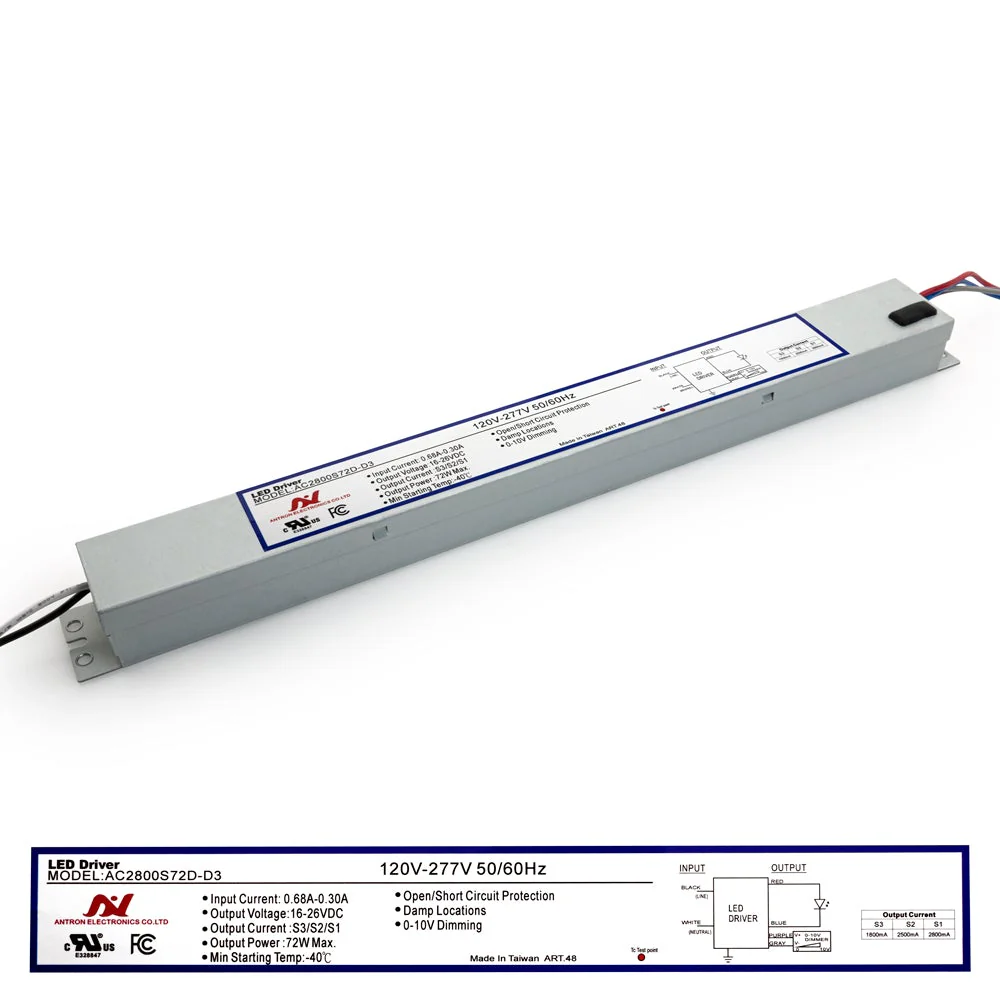

AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max
1 / 3
AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max
| Model | AC2800S72D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.68-0.3A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 16-26V |
| Output Power | 72W max |
| Output Regulated Current | Selectable current from 1800mA/ 2500mA/ 2800mA |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in) |
| Certification |
   |
Features
- The output current level can be adjusted from 1800ma, 2500ma, and 2800ma by the DIP switch.
- Customized current (power) options.
- Open/Short/Over-Voltage/Over Temp protection.
- Universal input voltage 120-277V AC
- Applicable for dry and damp locations
$16.52
Original: $55.07
-70%AC2800S72D-D3 Antron CC 0-10V Dimming LED Driver with Selectable Current 2800-2500-1800mA 16-26V 72W max—
$55.07
$16.52Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | AC2800S72D-D3 |
| Input Voltage | 120-277V AC |
| Input Current | 0.68-0.3A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 16-26V |
| Output Power | 72W max |
| Output Regulated Current | Selectable current from 1800mA/ 2500mA/ 2800mA |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Dimensions | 39.5 × 3.8 × 3 cm (15.56 x 1.5 x 1.16 in) |
| Certification |
|
Features
- The output current level can be adjusted from 1800ma, 2500ma, and 2800ma by the DIP switch.
- Customized current (power) options.
- Open/Short/Over-Voltage/Over Temp protection.
- Universal input voltage 120-277V AC
- Applicable for dry and damp locations
