ANTRON PAC1250S25DL Constant Current Programmable LED Driver with Custom Output Current 350-1250mA 15-55V 25W max

Product image 1
1 / 3

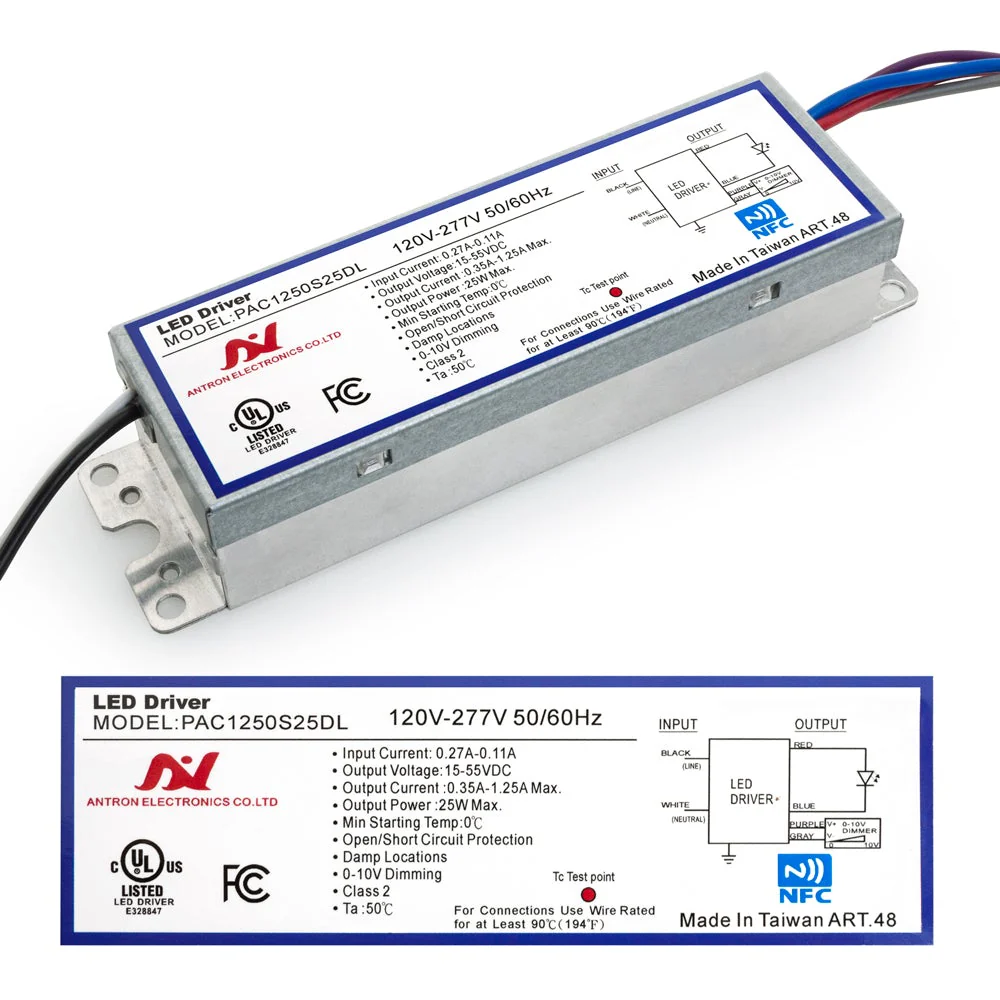

ANTRON PAC1250S25DL Constant Current Programmable LED Driver with Custom Output Current 350-1250mA 15-55V 25W max


Model PAC1250S25DL
Input Voltage 120-277V AC
Input Current 0.27A-0.11A
Output Voltage 15-55V
Output Power 25W max
Output regulated Current Range Programmable Output Current
350mA, 400mA, 450mA, 500mA, 550mA, 600mA,
650mA, 700mA, 750mA, 800mA, 850mA,900mA
950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA
Input Frequency 50/60 Hz
Dimmable 3 in 1 Dimming ( PWM, 1-10V, Resistance)
IP Rating IP20
Dimensions 15.87 × 4.4 × 3.24 cm (6.25 x 1.73 x 1.28 in)
Class Certification Class 2
Certification


Features:

  • It perfectly matches the LED lighting load and maximizes its performance with a single driver.
  • The programmable option allows you to create your custom output current for your desired LED lightings.
  • We can customize the desired output current for your driver to avoid the hassle of buying the programming wand or downloading the software. Contact us for more information.
  • Customized current (power) options with 3 in 1 Dimming ( PWM, 1-10V, Resistance, Dim to 1%, 10%, OFF)
  • Open/Short/Over-Voltage/Over Temp protection.
  • Universal input voltage 120-277 VAC
  • Applicable for dry and damp locations.
Note: Provide the desired output current in the notes while placing the order. The desired output current should be in the rated range of the driver.
$16.52

Original: $55.07

-70%
ANTRON PAC1250S25DL Constant Current Programmable LED Driver with Custom Output Current 350-1250mA 15-55V 25W max—

$55.07

$16.52

Product Information

Shipping & Returns

Description


Model PAC1250S25DL
Input Voltage 120-277V AC
Input Current 0.27A-0.11A
Output Voltage 15-55V
Output Power 25W max
Output regulated Current Range Programmable Output Current
350mA, 400mA, 450mA, 500mA, 550mA, 600mA,
650mA, 700mA, 750mA, 800mA, 850mA,900mA
950mA, 1000mA, 1050mA, 1100mA, 1150mA, 1200mA, 1250mA
Input Frequency 50/60 Hz
Dimmable 3 in 1 Dimming ( PWM, 1-10V, Resistance)
IP Rating IP20
Dimensions 15.87 × 4.4 × 3.24 cm (6.25 x 1.73 x 1.28 in)
Class Certification Class 2
Certification


Features:

  • It perfectly matches the LED lighting load and maximizes its performance with a single driver.
  • The programmable option allows you to create your custom output current for your desired LED lightings.
  • We can customize the desired output current for your driver to avoid the hassle of buying the programming wand or downloading the software. Contact us for more information.
  • Customized current (power) options with 3 in 1 Dimming ( PWM, 1-10V, Resistance, Dim to 1%, 10%, OFF)
  • Open/Short/Over-Voltage/Over Temp protection.
  • Universal input voltage 120-277 VAC
  • Applicable for dry and damp locations.
Note: Provide the desired output current in the notes while placing the order. The desired output current should be in the rated range of the driver.
