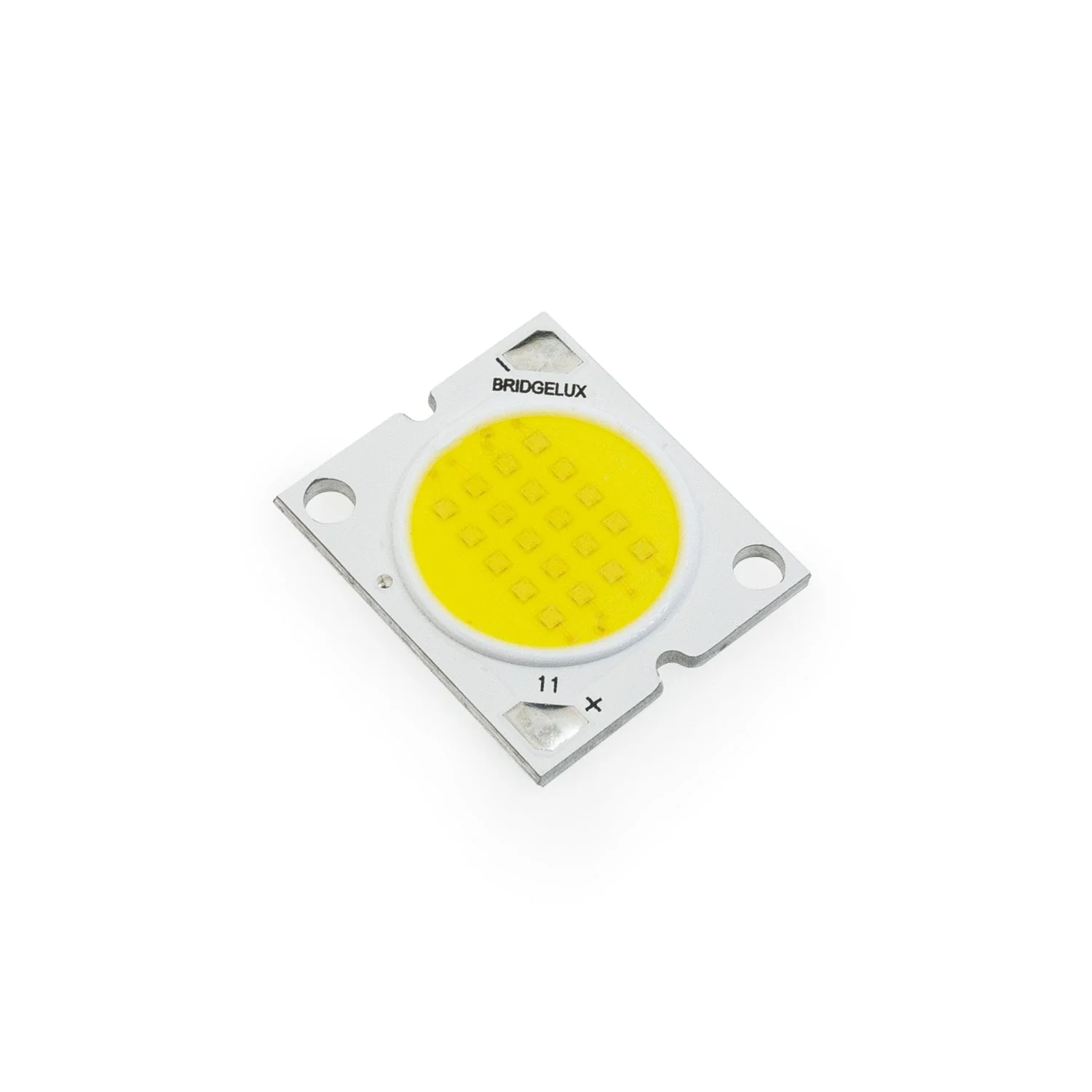

BXRA-56C1600-B Constant Current COB LED Module, 500mA 14.8W 5600K(Cool White)
| Model | BXRA-56C1600-B |
| Brand | Bridgelux |
|
Current |
500mA |
| Voltage Range | 22.6-32.6V |
| Typical Voltage | 29.6V |
| Power | 14.8W |
| LED Type | COB |
| Luminous Flux | 1725-1920 lumens |
| Efficacy | 128 Lm/W |
| Color Temperature | 5600K (Cool White) |
| Rendering Index | CRI>70 |
| Dimmable | Yes |
| Junction temperature (Tj) | 25ÂșC |
| Operating Case Temperature Max Range (Tc) | 105°C |
| Material | Metallic base |
| Soldering Temperature | 350ÂșC |
| Dimensions | 22.30 x 25.40 x 1.5mm (0.875 x 1 x 0.05in) |
Â
Features:
- Low power consumption, high energy efficiency.
- Use Thermal Grease or Thermal Pad for installation.
- It is a good DIY product for replacing the damaged LED of any fixture of the same voltage and wattage.
- Available in different color temperatures and wattage
- Bridgelux arrays are fully engineered devices that provide consistent thermal and optical performance on an engineered mechanical platform.
- This rectangle array is a general-purpose chip-on-board device serving a wide range of applications.
- The arrays incorporate several features to simplify design integration and assembly.
