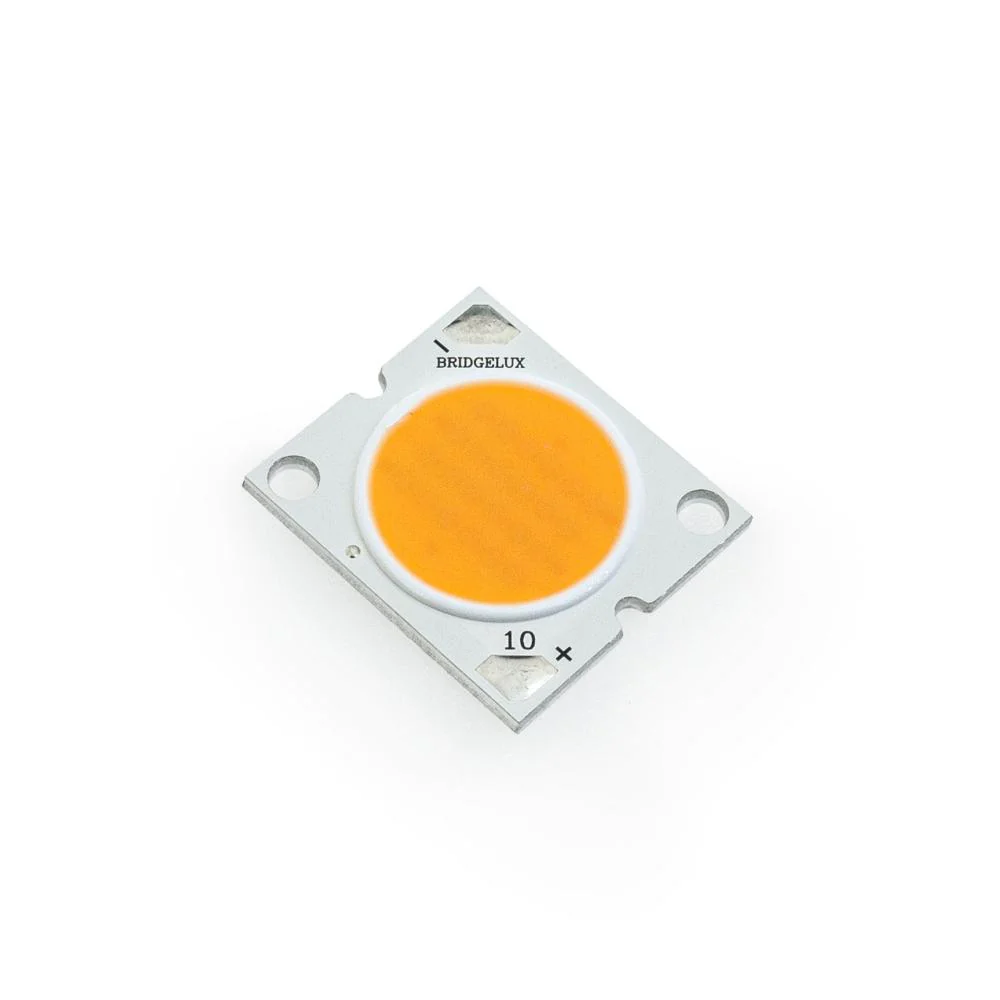

BXRA-27G2000-B-03 Constant Current COB LED Module, 700mA 25W 2700K(Soft White)

Product image 1
1 / 3

BXRA-27G2000-B-03 Constant Current COB LED Module, 700mA 25W 2700K(Soft White)

Model BXRA-27G2000-B-03
Brand Bridgelux
Current
 700mA
Voltage 32.6- 39.8V
Typical Voltage 37V
Power 25.9W
LED Type COB
Luminous Flux 1750-1975 lumens
Efficacy 76 lm/W
Color Temperature 2700K (Soft White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) (Max rating) 150ÂșC
Operating case temperature (Tc) (Max rating) 105ÂșC
Material Metallic base
Soldering Temperature: (Max rating) 350ÂșC
Dimensions 22.8 x 25.8 x 1.5mm (0.89 x 1.1 x 0.05in)



Features:

  • Low power consumption, high energy efficiency.
  • Also available in other color temperatures and brightnesses.
  • Has a lifespan of more than 48,000 hours.
  • Low heat generation and energy-efficient as compared to other incandescent, halogen, and fluorescent lamps.
  • Applicable for DIY projects, decorative lights, factory or industrial use, school projects, and also, DIY household lights.
  • Use Thermal Grease or Thermal Pad for installation.
$9.25

Original: $30.84

-70%
BXRA-27G2000-B-03 Constant Current COB LED Module, 700mA 25W 2700K(Soft White)—

$30.84

$9.25

Product Information

Shipping & Returns

Description

Model BXRA-27G2000-B-03
Brand Bridgelux
Current
 700mA
Voltage 32.6- 39.8V
Typical Voltage 37V
Power 25.9W
LED Type COB
Luminous Flux 1750-1975 lumens
Efficacy 76 lm/W
Color Temperature 2700K (Soft White)
Rendering Index CRI>90
Dimmable Yes
Junction temperature (Tj) (Max rating) 150ÂșC
Operating case temperature (Tc) (Max rating) 105ÂșC
Material Metallic base
Soldering Temperature: (Max rating) 350ÂșC
Dimensions 22.8 x 25.8 x 1.5mm (0.89 x 1.1 x 0.05in)



Features:

  • Low power consumption, high energy efficiency.
  • Also available in other color temperatures and brightnesses.
  • Has a lifespan of more than 48,000 hours.
  • Low heat generation and energy-efficient as compared to other incandescent, halogen, and fluorescent lamps.
  • Applicable for DIY projects, decorative lights, factory or industrial use, school projects, and also, DIY household lights.
  • Use Thermal Grease or Thermal Pad for installation.
