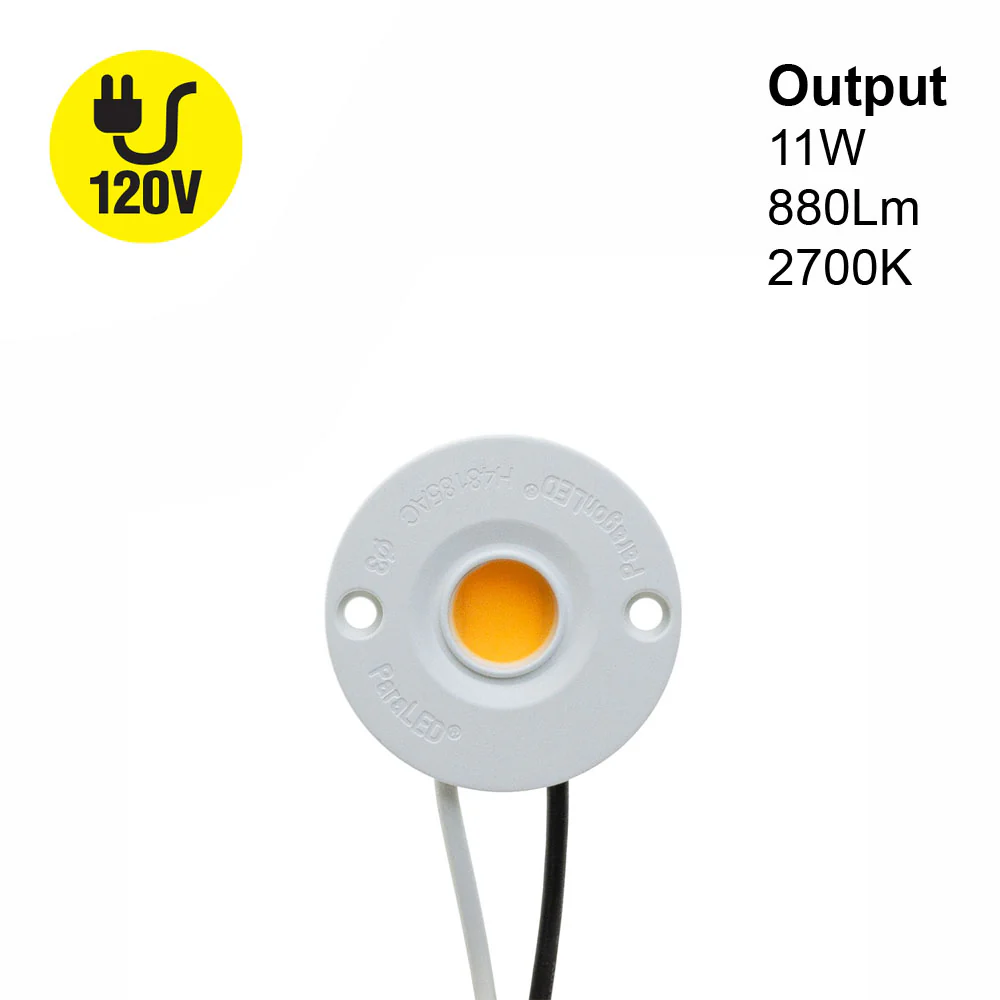

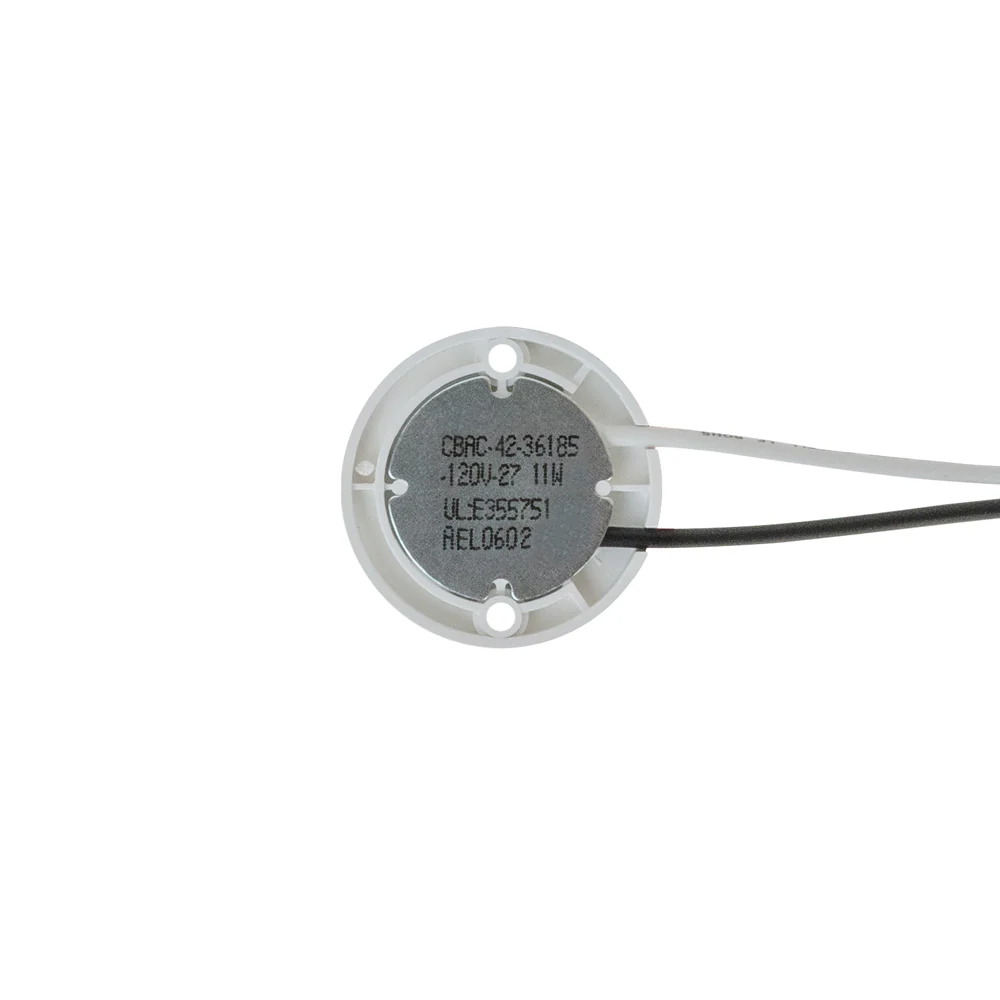

Model No	CBAC-42-36185-120V-27
COB Holder Model No	H48185
LED Type	COB LED
Wattage	11W
Voltage	120V AC
Power Factor	PF>0.98
Color Temperature	2700K (Soft White)
Brightness	880 Lumens
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)
COB Holder Dimensions	∅42.3mm (1.6 in) x H5.88mm (0.23 in)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

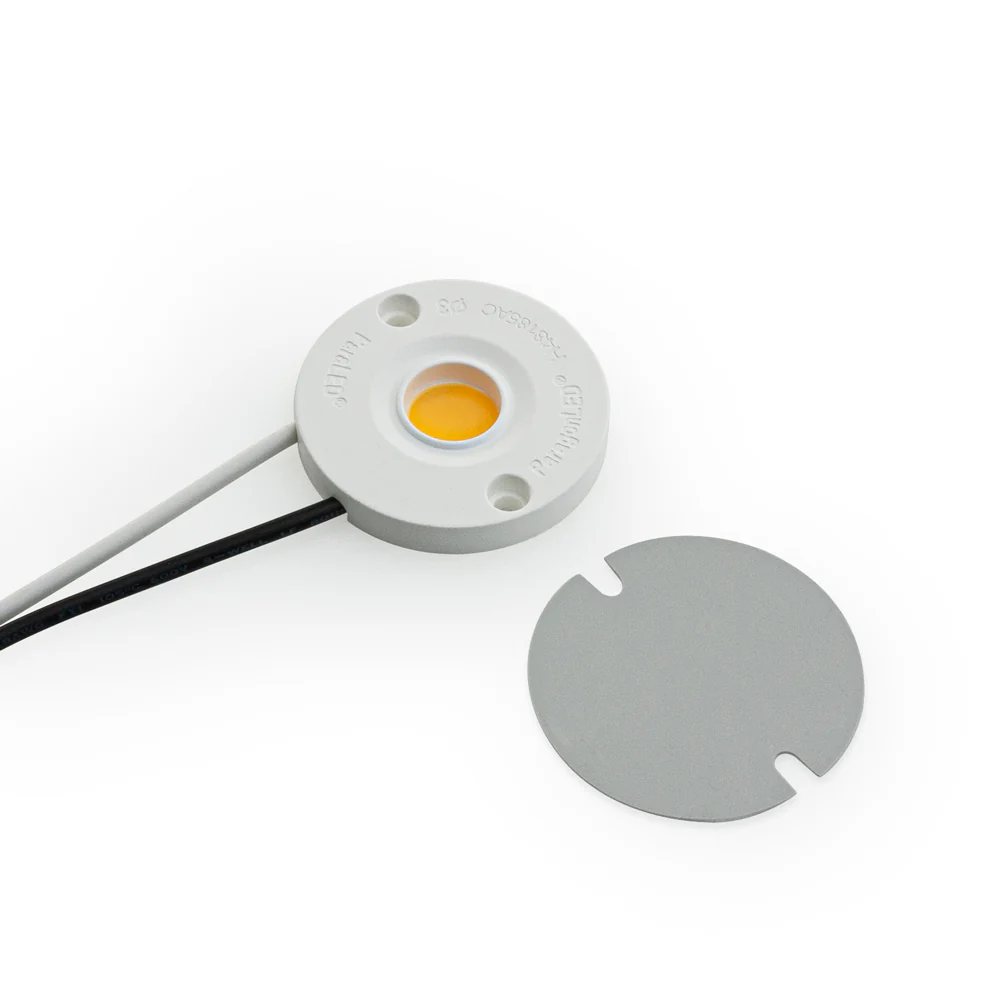

Included Content	COB Module, PC lampshade (Diffuser), COB LED Array Holder, Thermal Pad
Certifications

Features:

• COB LED module designed for indoor use with a power consumption of 11W and a voltage rating of 120V AC
• Color temperature of 2700K, producing a soft white light
• Dimmable module with a high color rendering index of over 90, ensuring accurate color display

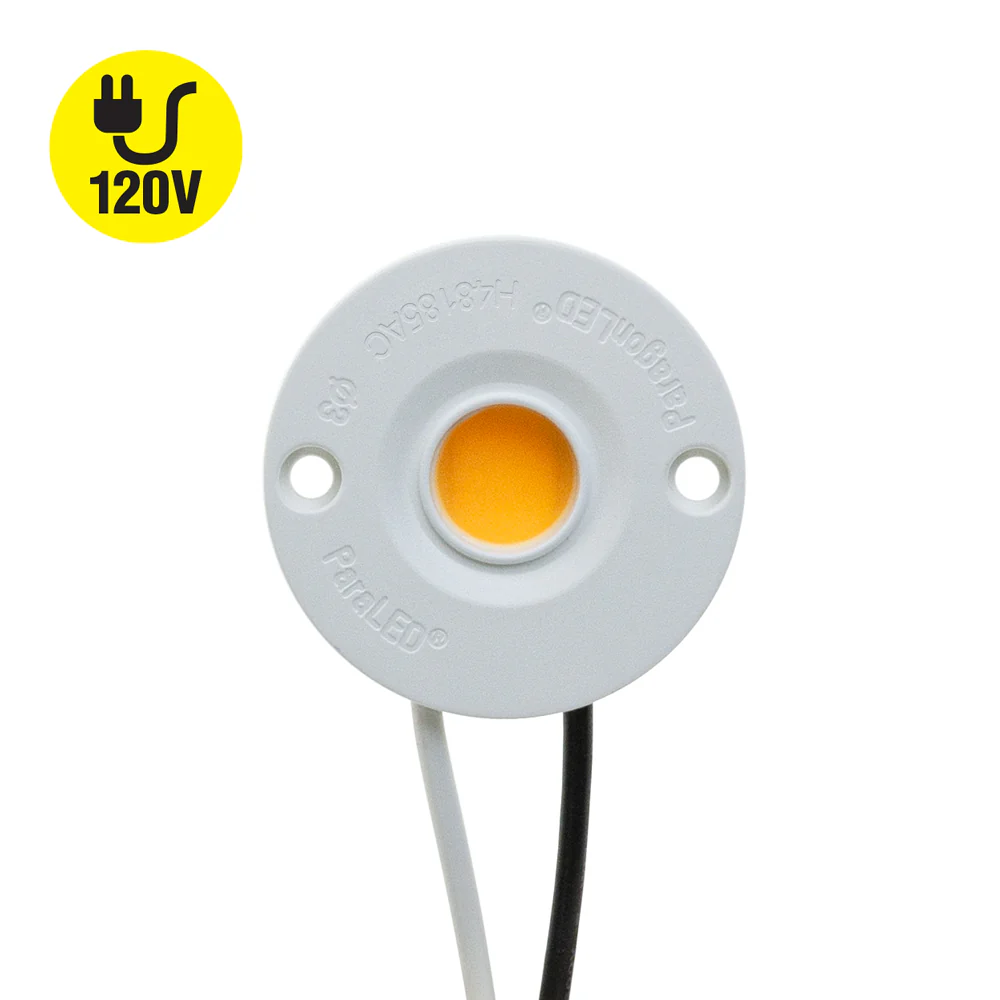

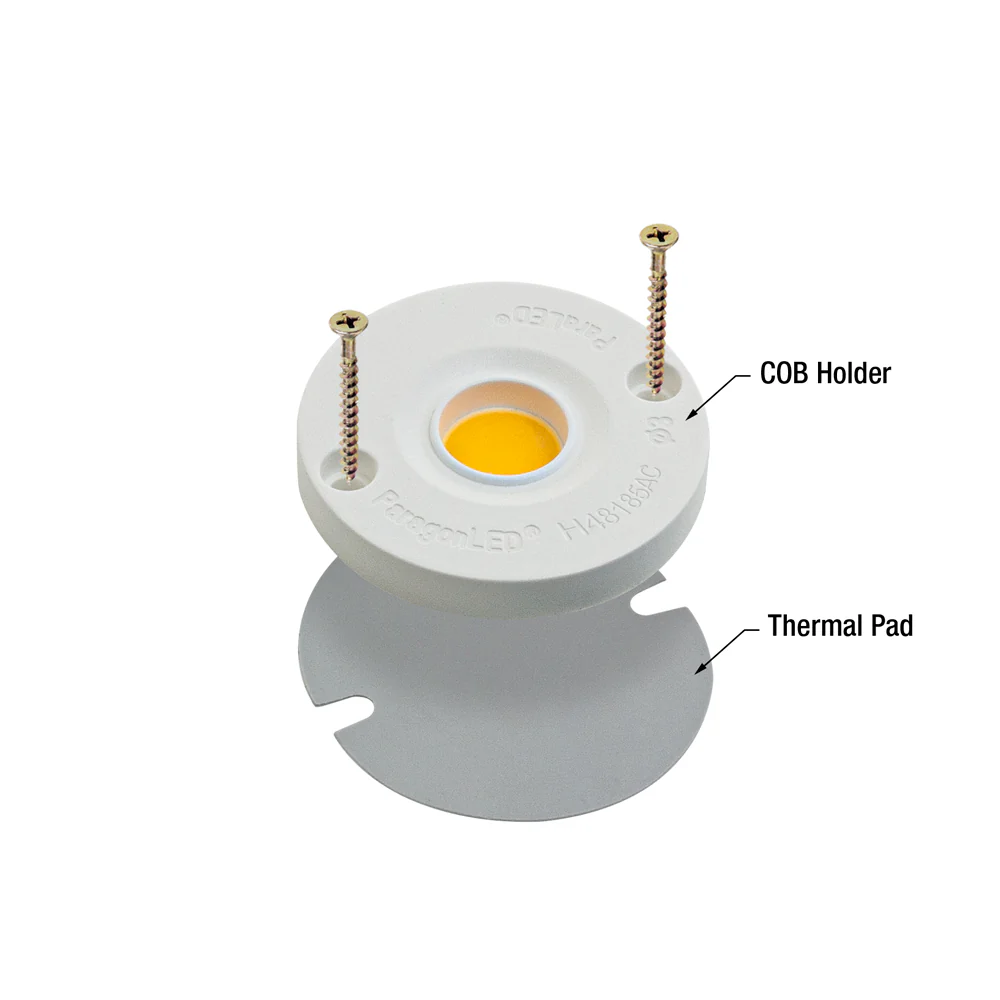

• Comes with a H48185 COB LED holder that allows for easy mechanical and electrical connections and secure attachment to a heat sink
• COB holder dimensions: ∅42.3mm (1.6 in) x H5.88mm (0.23 in)
• Recommended to use an aluminum heat sink and silicone grease thermal pad to prevent overheating and ensure longevity of the module
• Includes a polycarbonate diffuser that can be easily attached or detached to protect the module, reduce glare, and refract light in a wider beam
• Certified by UL and suitable for use in damp locations
• Important to ground light fixtures when designing lamps to ensure safe operation
• Operating temperature range: -40 ~ +105℃, storage temperature range: -40 ~ +105℃
• Assembly process temperature should not exceed 300℃ and the solder joint point temperature should not exceed 105℃
• Dielectric breakdown voltage of the thermal pad is greater than 4KV
