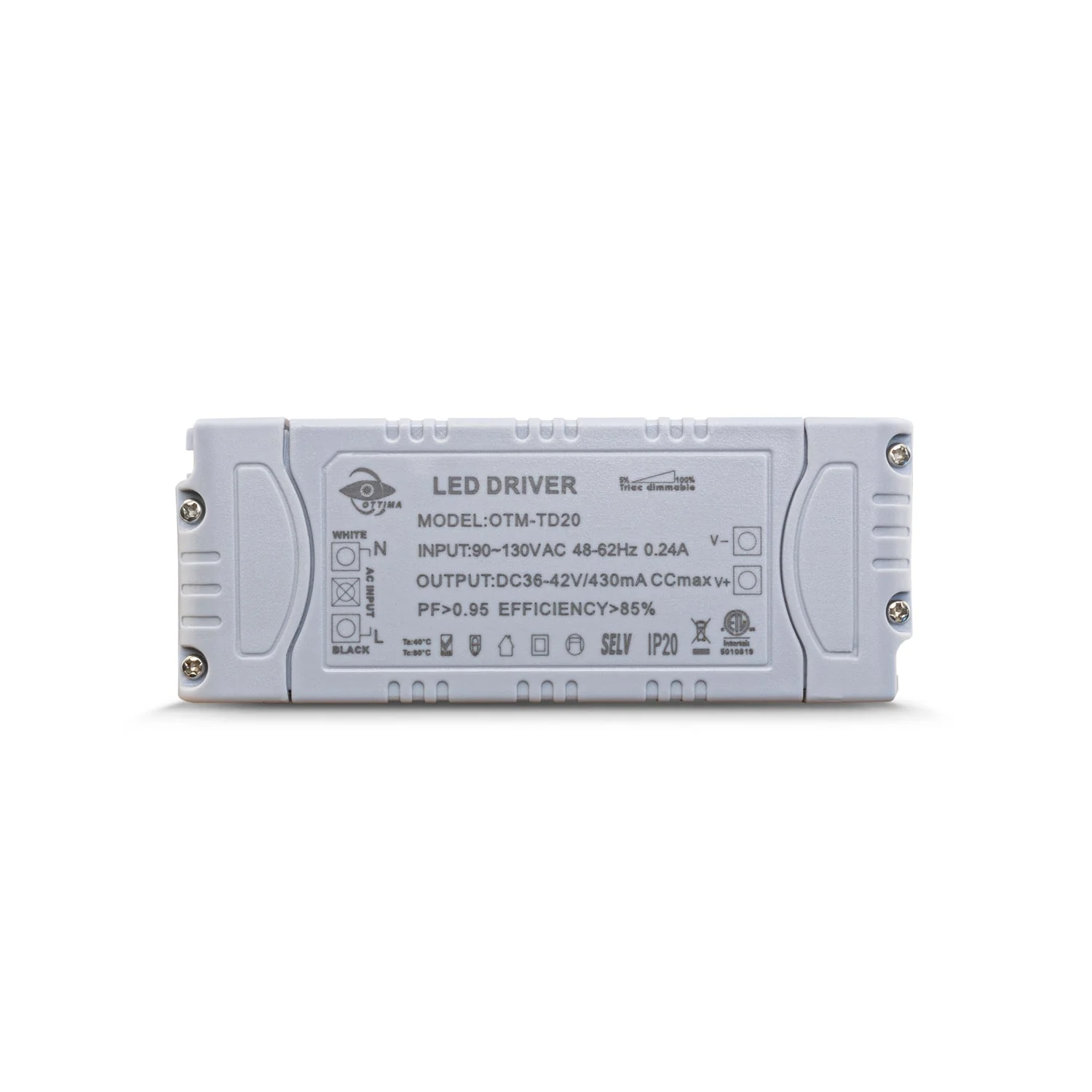

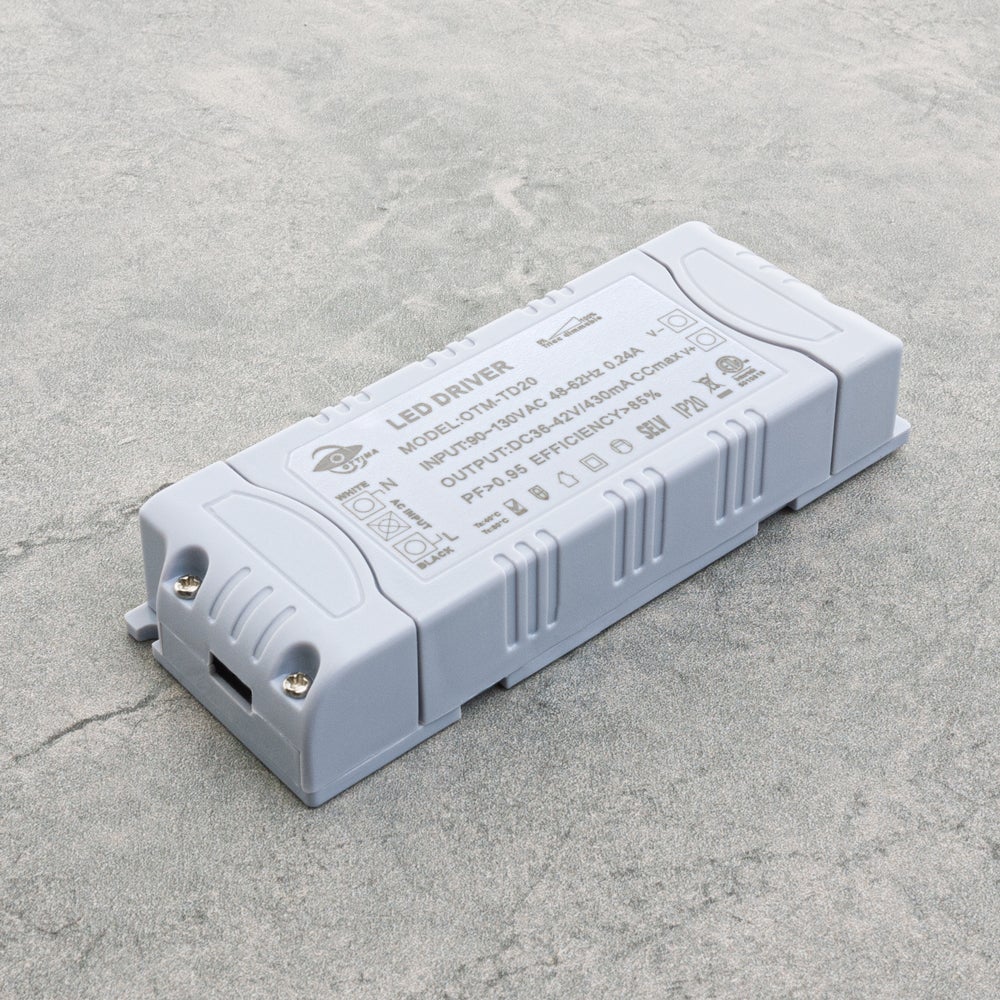

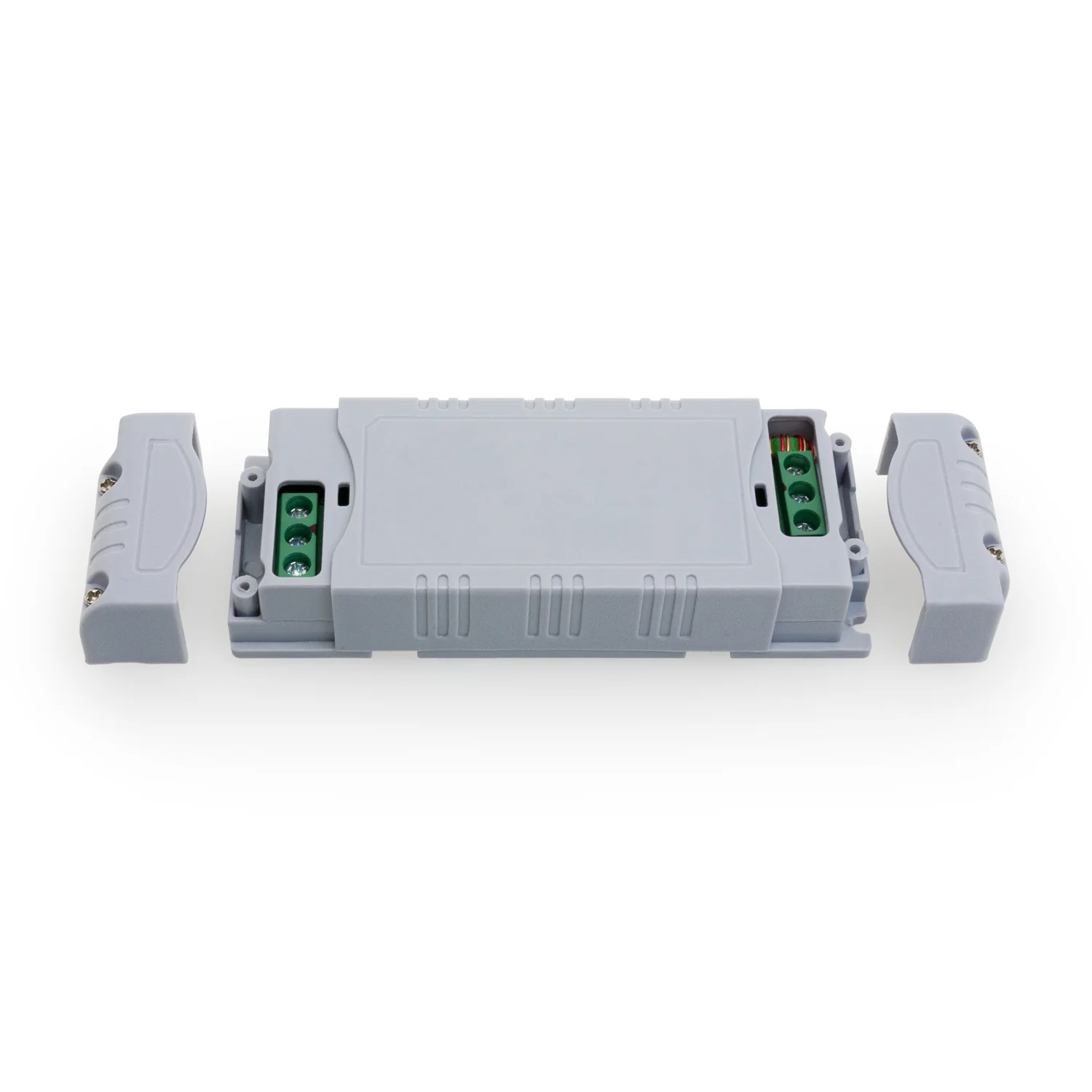

OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver, 430mA 36-42V 18W
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 430mA |
| Output max Power | 18W |
| Output Max Voltage | 36-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:
- OTTIMA OTM-TD20 Constant Current LED Driver
- Provides a regulated output current of 430mA and a maximum output power of 18W
- Suitable for powering LED lights within the specified current and power range
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (> 0.95) for efficient power conversion
- Efficiency rating over 85% to minimize power loss
- Output voltage range: 36-42V DC, compatible with a wide range of LED lights
- Dimmable using Triac Dimming for adjustable lighting intensity
- Designed for indoor use, IP20 rating for protection against solid objects (>12.5mm)
- Operating ambient temperature up to 40°C, maximum case temperature: 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification with double insulation for added safety.
$35.24
OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver, 430mA 36-42V 18W—
$35.24
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 430mA |
| Output max Power | 18W |
| Output Max Voltage | 36-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |
|
Features:
- OTTIMA OTM-TD20 Constant Current LED Driver
- Provides a regulated output current of 430mA and a maximum output power of 18W
- Suitable for powering LED lights within the specified current and power range
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (> 0.95) for efficient power conversion
- Efficiency rating over 85% to minimize power loss
- Output voltage range: 36-42V DC, compatible with a wide range of LED lights
- Dimmable using Triac Dimming for adjustable lighting intensity
- Designed for indoor use, IP20 rating for protection against solid objects (>12.5mm)
- Operating ambient temperature up to 40°C, maximum case temperature: 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification with double insulation for added safety.
