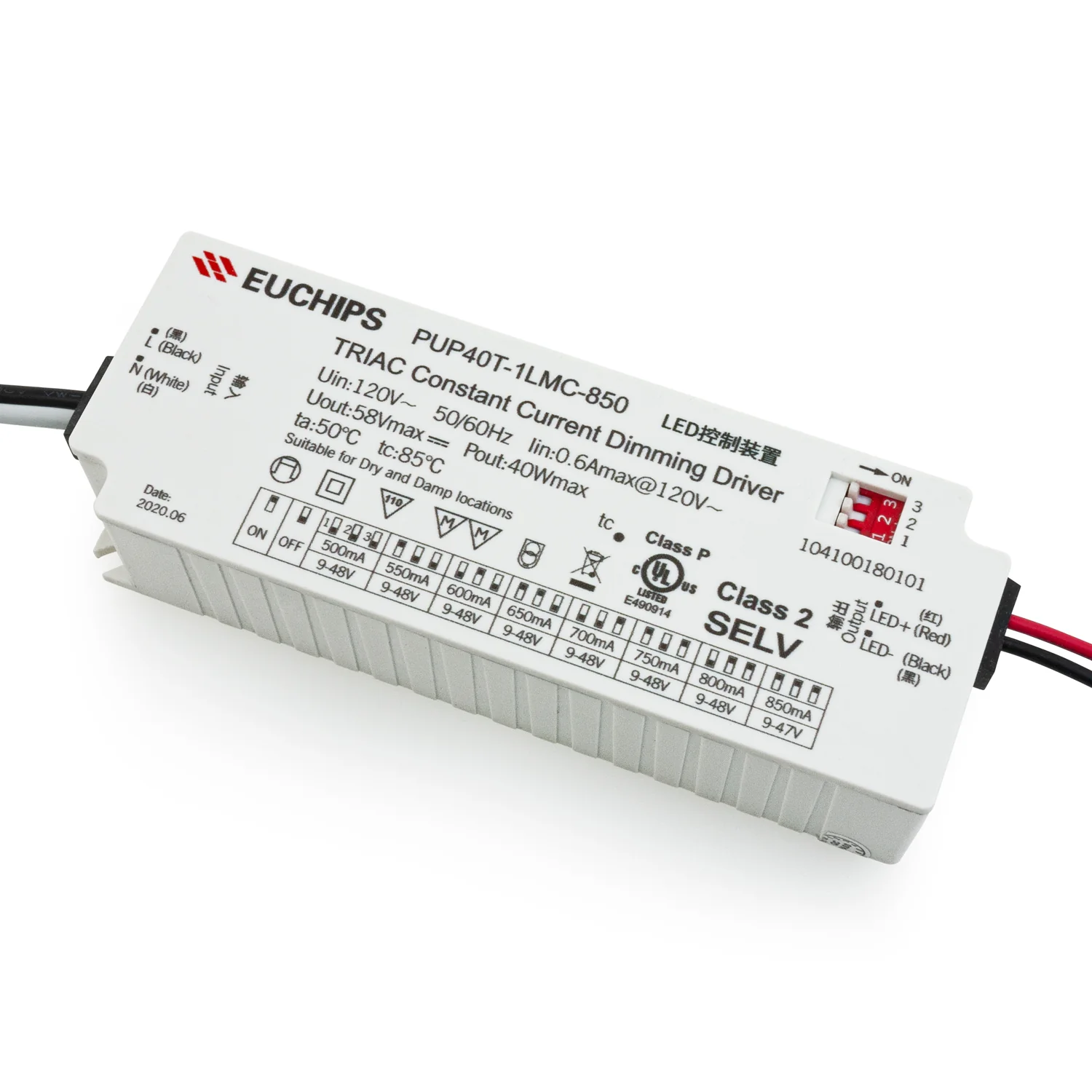

PUP40T-1LMC-850 Constant Current Driver with Selectable Current, 120V 500 to 850MA
| Model | PUP40T-1LMC-850 |
| Input Voltage | 120VAC(108-132VAC) |
| Input Current (AC) | 0.6Amax@120VAC |
| Output Current/Voltage/Power |
500mA/9-48VDC/24W 550mA/9-48VDC/26.4W 600mA/9-48VDC/28.8W 650mA/9-48VDC/31.2W 700mA/9-48VDC/33.6W |
| No-load Output Voltage | 58V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency | >84%@120VAC,850mA ,Full load >83%@120VAC,1200mA ,Full load |
| Working Temperature | -20℃~50℃ |
| Lifetime | 50,000h @ Tc:85℃ |
| Dimensions | 121 x 44 x 26.5mm (4.7 x 1.7 x 1in) |
| Certifications |   |
Features:

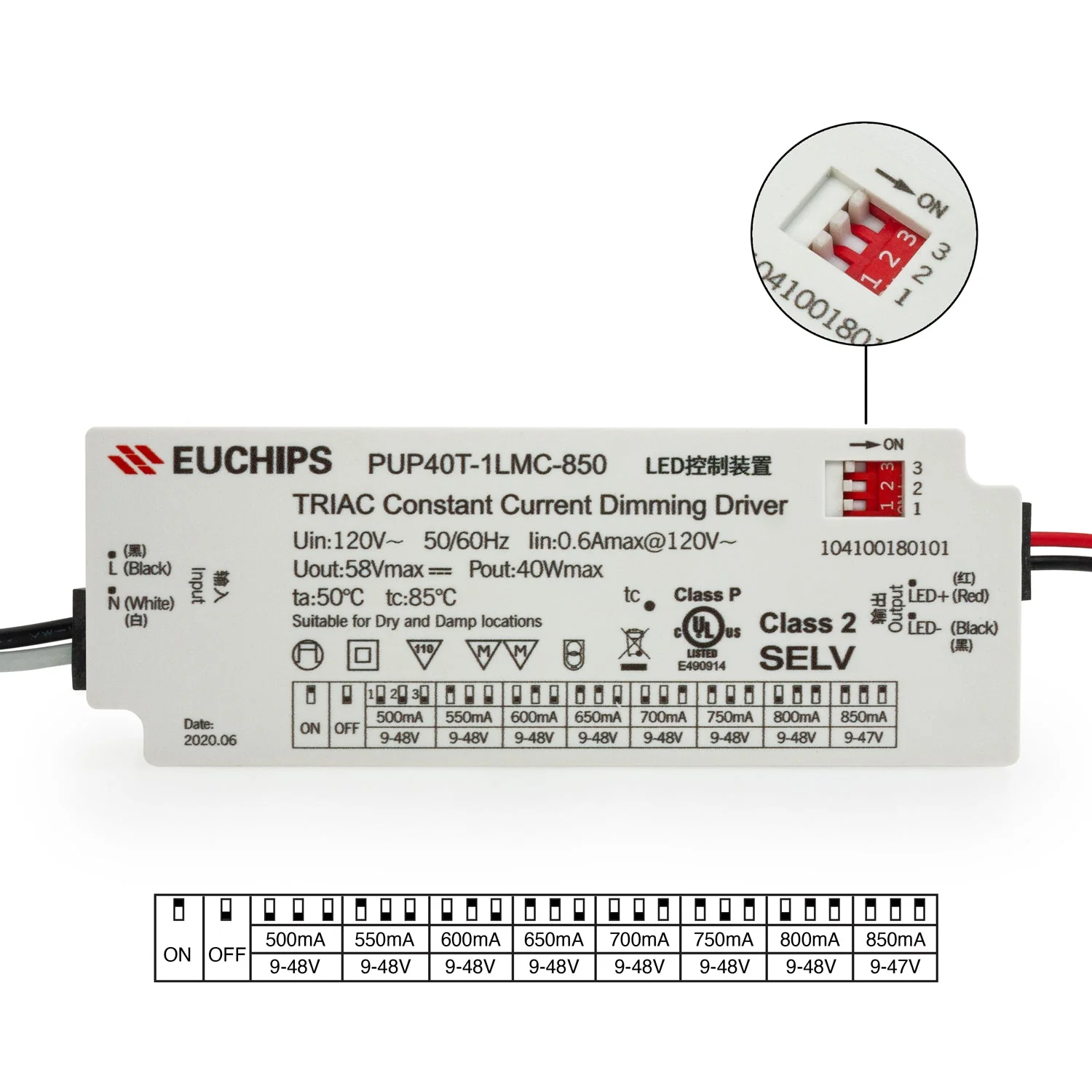

- PUP40T-1LMC-850 is a multi-current dimming driver, output current level selectable by DIP switch.
- The driver is compatible with Triac and ELV dimmers to achieve a smooth dimming effect.
- The dimming voltage range of this driver is from 108V to 132VAC
- This driver has a built-in active PFC function
- Suitable for all indoor lighting applications (Dry and Damp locations)
- PVC or rubber cord of 0.75-2.5mm² is recommended for input and output terminals
- Open/Short/Over-Voltage/Over Temp. protection.
- Contact us for more assistance.
- This multi-current dimming driver, output current level selectable by DIP switch.
- Customized current (power) options from 500ma-850mA.
- Open/Short/Over-Voltage/Over Temp protection.
- Applicable for dry and damp locations
- PUP40T-1LMC is a constant current output mode LED driver.
