Model	PUP10A-1WMC-350
Input Voltage	120-277VAC
Input Current	0.6Amax@120VAC
Output Current/Voltage/Power	120mA/9-42V/5.04W 150mA/9-42V/6.3W 180mA/9-42V/7.56W 210mA/9-42V/8.82W 260mA/9-38V/9.88W 290mA/9-34V/9.86W 320mA/9-31V/9.92W 350mA/9-28V/9.8W
No-load Output Voltage	50V Max
Input Frequency	50/60Hz
Dimming Type	0/1-10V(Type A)
Dimming Range	0.1%-100% Dimming to off
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	>87%@120VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃

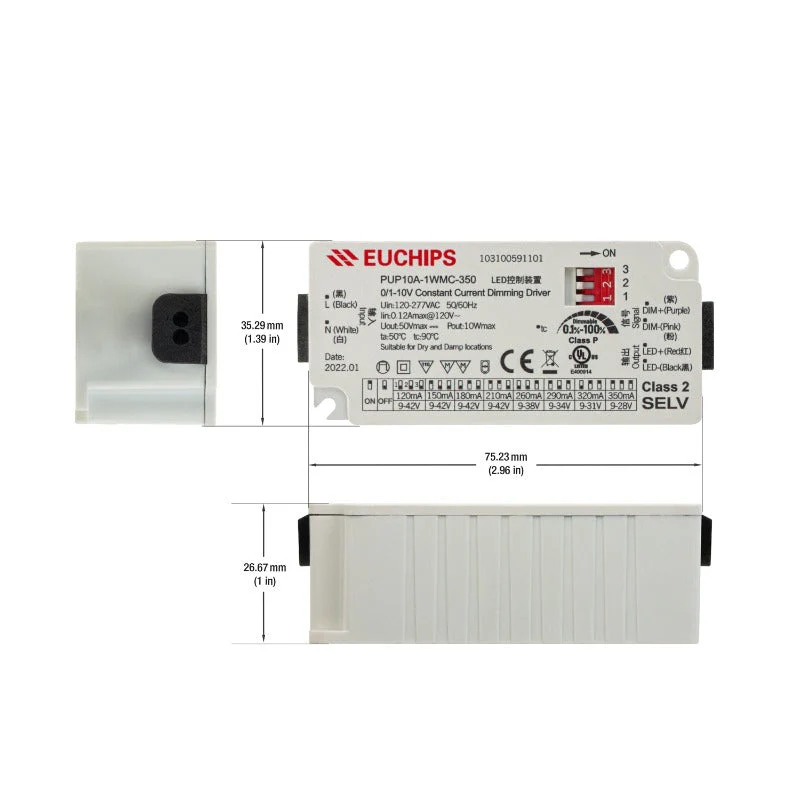

Dimensions	75.23 x 35.29 x 26.67mm (2.9 x 1.3 x 1in)
Certifications

Features:

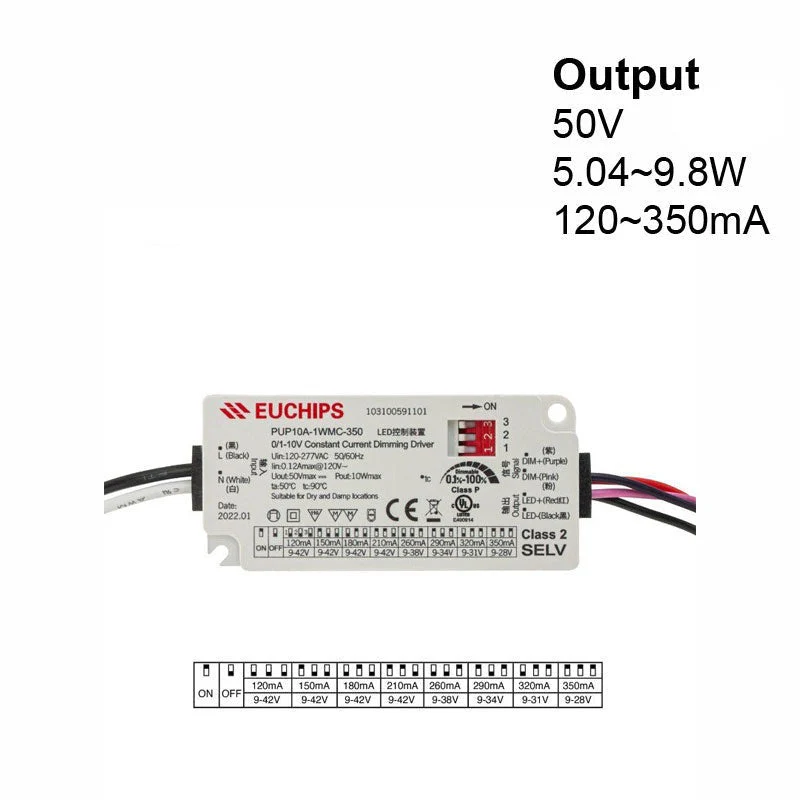

• The PUP10A-1WMC-350 is a selectable constant current LED driver designed for powering LED lighting systems.
• It accepts a wide range of input voltages from 120-277VAC and can deliver a constant current output of 120mA to 350mA, with output voltages ranging from 9V to 42V and output power ranging from 5.04W to 9.8W depending on the selected current.
• The driver supports 0/1-10V(Type A) dimming, enabling precise control over the brightness of connected LEDs with a dimming range of 0.1%-100% and dimming them to off.
• The driver is rated IP20, making it suitable for use in dry and damp indoor locations.
• The PUP10A-1WMC-350 offers high efficiency (>87% at 120VAC, full load) and has a working temperature range of -20℃ to 50℃, ensuring stable and reliable operation in various environments.
