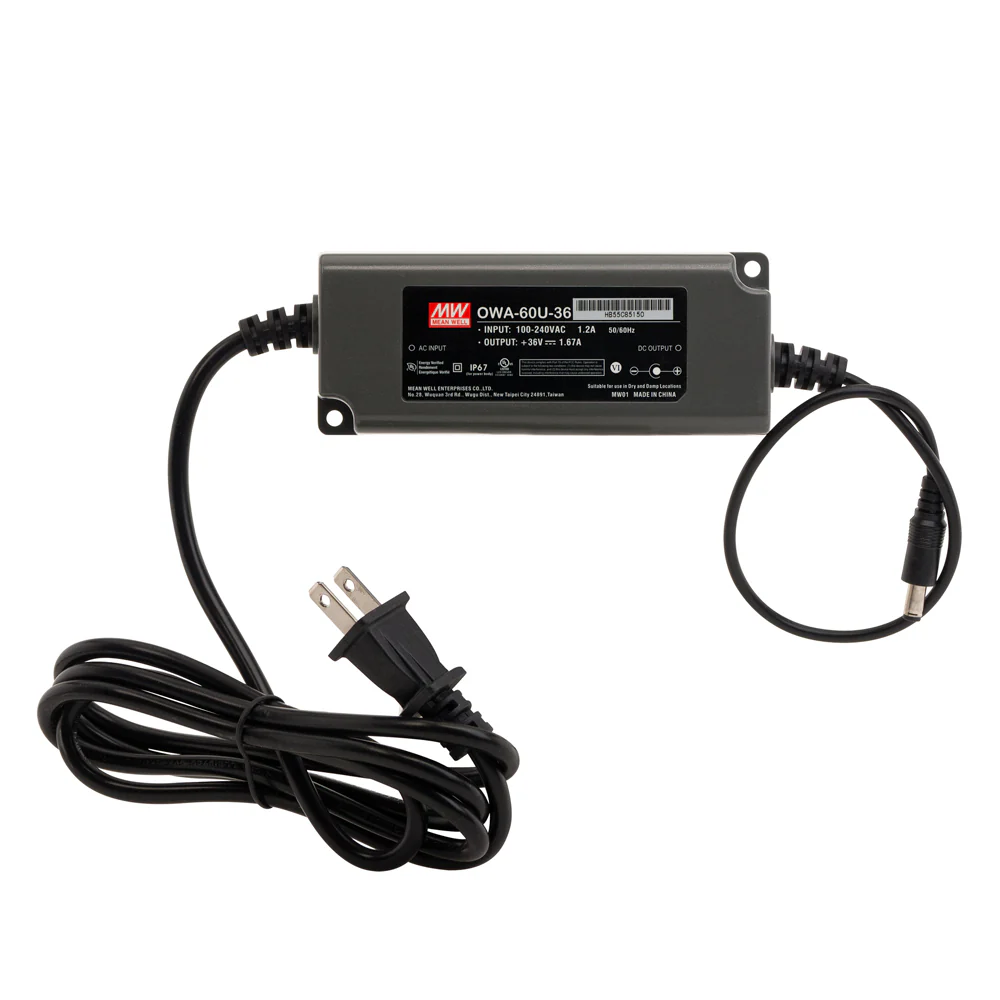

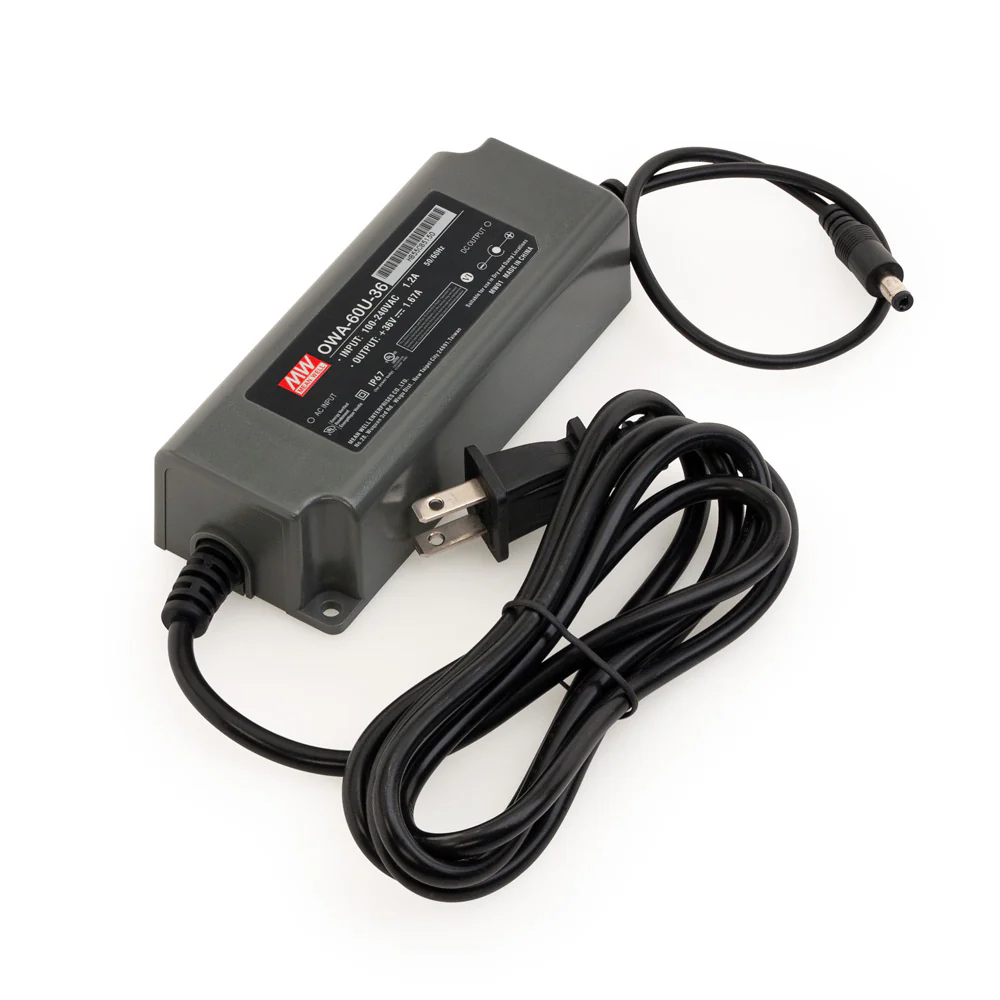

Mean Well OWA-60U-36 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage

Product image 1
1 / 4

Mean Well OWA-60U-36 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage


Model OWA-60U-36
Input Voltage 100-240V AC
Input Current 1.2A
Efficiency 91%
Output Voltage (CV Mode) 36V
Output  Current (CC Mode) 1.67A
Output Power 60.12W
IP Rating IP 67
Dimmable No
Dimensions 131.75 x 53.3 x 35.1 mm (5.2 x 2.1 x 1.38 in)
Class Certification Class 2/ Class II
 Certification



Features

  • High efficiency up to 91%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • The Class Ⅱ power unit, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • Suitable for Dry and Damp locations
    • $14.32

    Original: $47.72

    -70%
    Mean Well OWA-60U-36 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage—

    $47.72

    $14.32

    Product Information

    Shipping & Returns

    Description


    Model OWA-60U-36
    Input Voltage 100-240V AC
    Input Current 1.2A
    Efficiency 91%
    Output Voltage (CV Mode) 36V
    Output  Current (CC Mode) 1.67A
    Output Power 60.12W
    IP Rating IP 67
    Dimmable No
    Dimensions 131.75 x 53.3 x 35.1 mm (5.2 x 2.1 x 1.38 in)
    Class Certification Class 2/ Class II
     Certification



    Features

  • High efficiency up to 91%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • The Class Ⅱ power unit, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • Suitable for Dry and Damp locations
