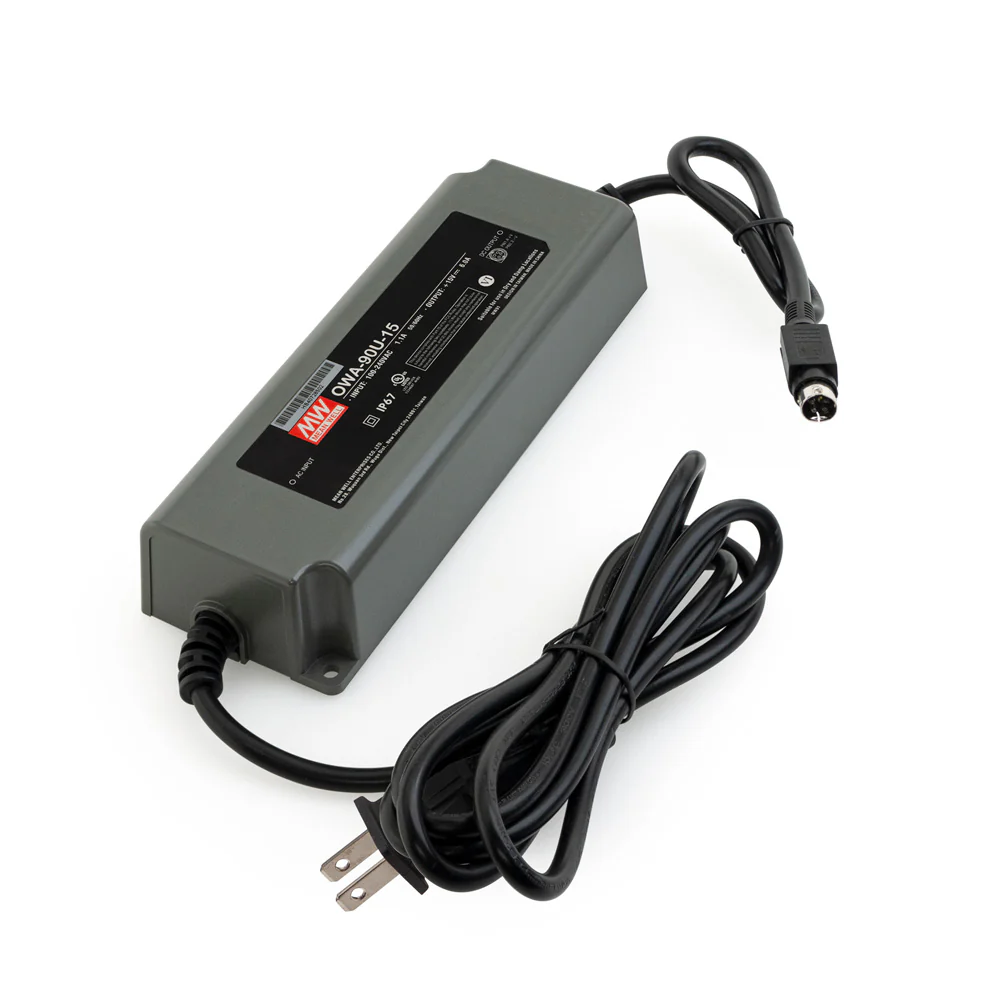

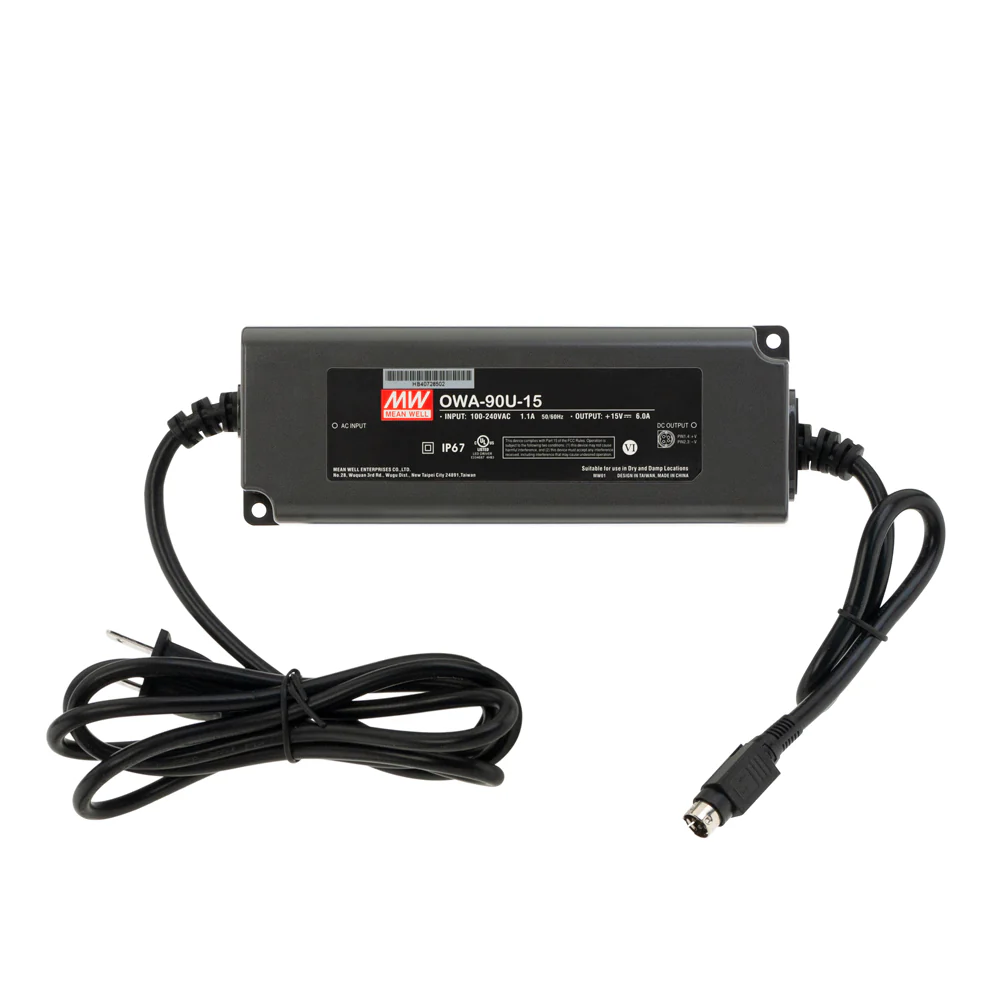

Mean Well OWA-90U-15 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage

Product image 1
1 / 4

Mean Well OWA-90U-15 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage


Model OWA-90U-15
Input Voltage 100-240V AC
Input Current 1.1A
Efficiency 91%
Output Voltage (CV Mode) 15V
Output  Current (CC Mode) 6.0A
Output Power 90W
IP Rating IP67
Dimmable No
Dimensions 175 x 64 x 38mm (6.8 x 2.5 x 1.5 in)
Class Certification Class 2/ Class II
Certification

Features

  • High efficiency up to 91%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • The class Ⅱ power unit, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • Suitable for Dry and Damp locations
    • $20.93

    Original: $69.75

    -70%
    Mean Well OWA-90U-15 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage—

    $69.75

    $20.93

    Product Information

    Shipping & Returns

    Description


    Model OWA-90U-15
    Input Voltage 100-240V AC
    Input Current 1.1A
    Efficiency 91%
    Output Voltage (CV Mode) 15V
    Output  Current (CC Mode) 6.0A
    Output Power 90W
    IP Rating IP67
    Dimmable No
    Dimensions 175 x 64 x 38mm (6.8 x 2.5 x 1.5 in)
    Class Certification Class 2/ Class II
    Certification

    Features

  • High efficiency up to 91%
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • The class Ⅱ power unit, no FG
  • Fully isolated plastic case
  • Fanless design, cooling by free air convection
  • Suitable for Dry and Damp locations
