Model No	CBAC-84-30135-120V-40
COB Holder Model No	GPH48135AC
LED Type	COB LED
Wattage	16W
Voltage	120V AC
Brightness	1280 Lumens
Color Temperature	4000K (Natural White)
Dimmable	Yes
Rendering Index	CRI>80
IP Rating	IP20 (Indoor rated)
COB Holder Dimensions	∅54.6 x ∅38 x H10.20 mm (2.15 x 1.5 x 0.4 in)
COB Module Outer Diameter	∅27mm (1.06 in)
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV
Included Content	COB Module, COB Holder with Glass Protection, Thermal Pad
Certifications

Features:

• Low power consumption and high energy efficiency.
• Suitable for damp locations.
• Requires an aluminum heat sink to prevent overheating, which can lead to serious luminous decay.
• COB LEDs are brighter, consume less power, and provide a higher quality beam output compared to older LED technologies.
• Ensure proper grounding of light fixtures during the lamp design process.
• COB LEDs are commonly used in a wide variety of luminaires.

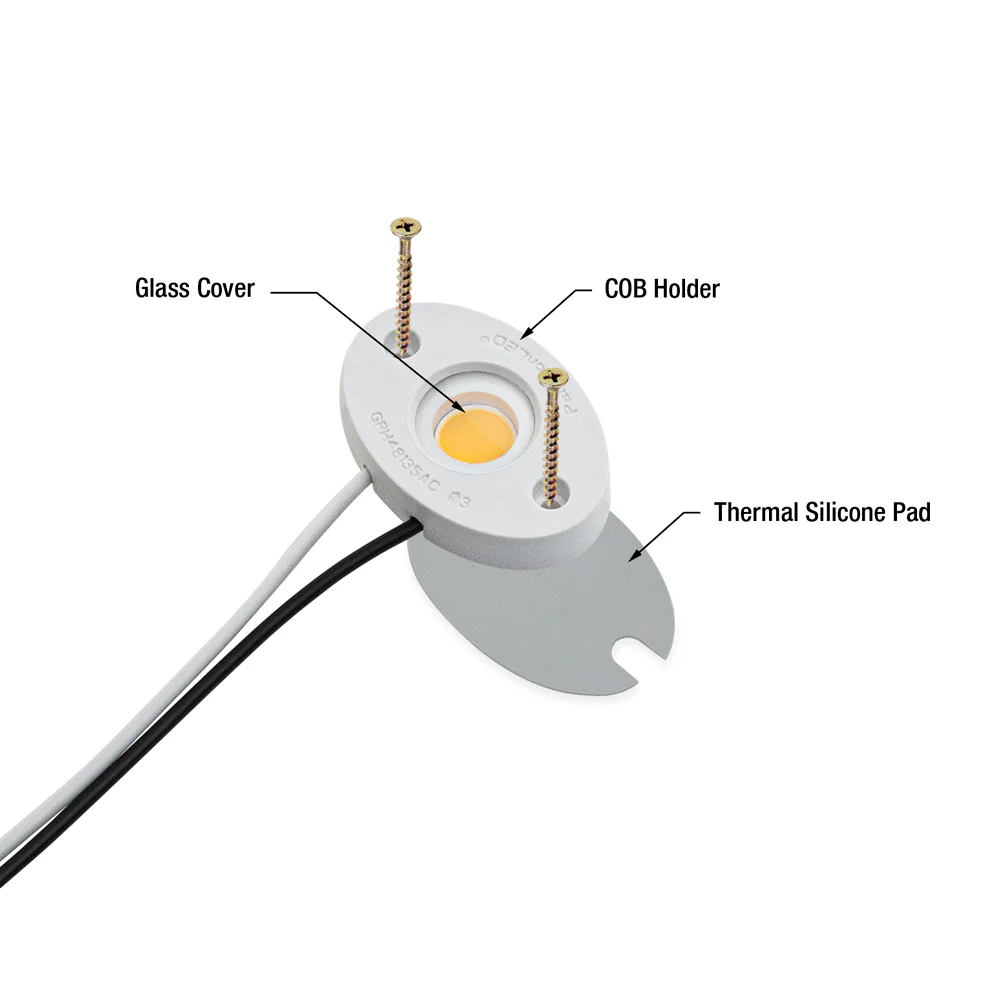

• The COB LED holder, with its glass protection, enables secure mechanical installation, electrical connection, and attachment to a heat sink.
• The silicone grease thermal pad provides effective heat dissipation, thereby increasing the module's lifespan.
