CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 10W 5000K

Product image 1
1 / 6

CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 10W 5000K



Model No CDAC-80-5028-120V-50
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 10W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 1100 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

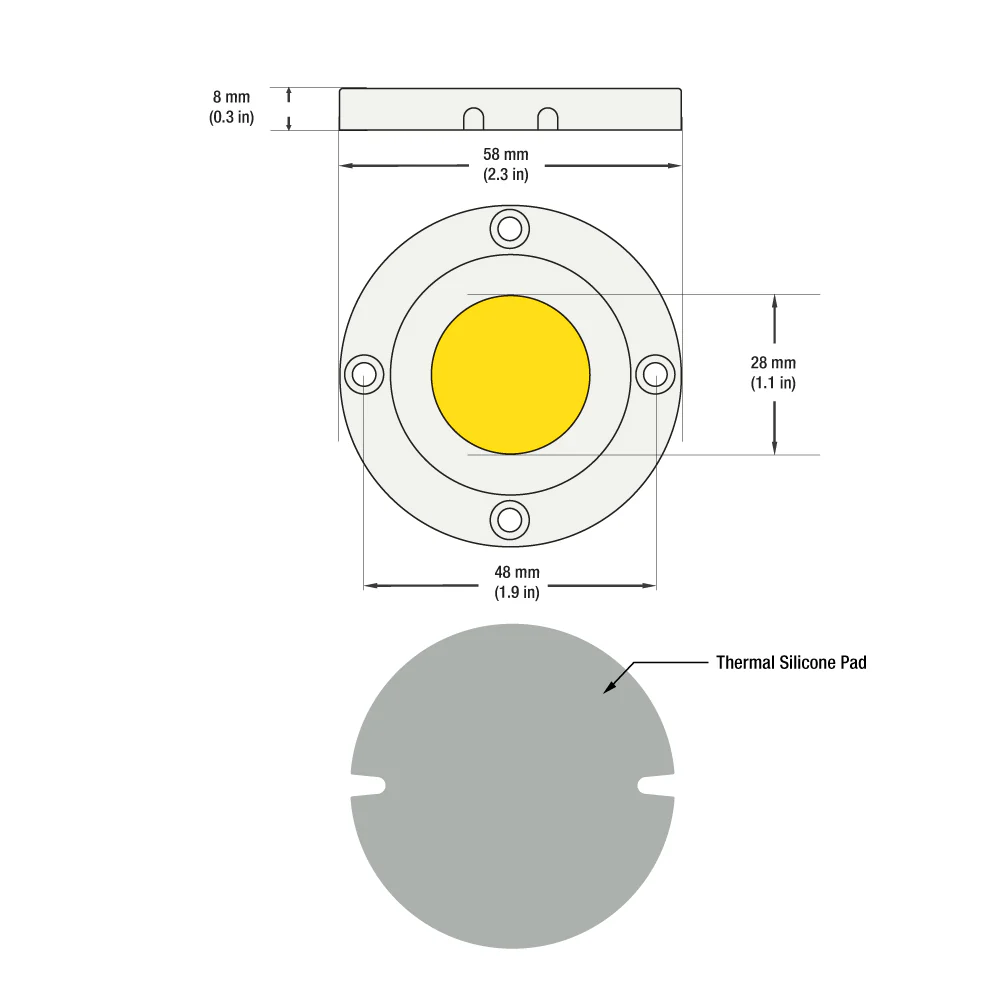

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Array Holder, Thermal Pad
Certifications


Features:

  • Low power consumption and high energy efficiency.
  • Suitable for damp locations.
  • Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
  • COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
  • It is important to ground light fixtures during the lamp design process for safety.
  • COB LEDs are commonly used in a wide range of luminaires.

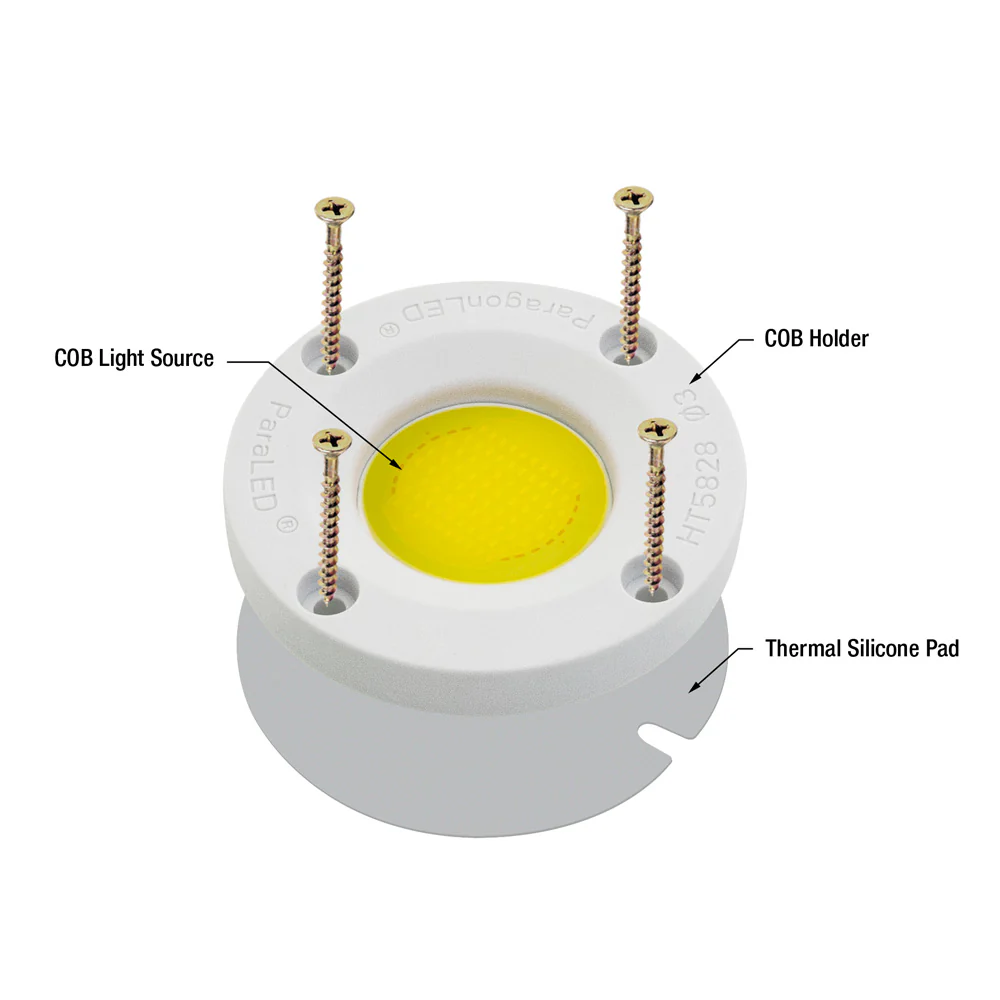

  • The COB holder, equipped with a glass diffuser, allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
  • The silicone grease thermal pad acts as a heat sink and aids in better heat dissipation, thereby increasing the module's lifespan.
$20.04

Original: $66.81

-70%
CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 10W 5000K—

$66.81

$20.04

Product Information

Shipping & Returns

Description



Model No CDAC-80-5028-120V-50
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 10W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 1100 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)
COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Array Holder, Thermal Pad
Certifications


Features:

  • Low power consumption and high energy efficiency.
  • Suitable for damp locations.
  • Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
  • COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
  • It is important to ground light fixtures during the lamp design process for safety.
  • COB LEDs are commonly used in a wide range of luminaires.
  • The COB holder, equipped with a glass diffuser, allows for secure mechanical installation, electrical connection, and attachment to a heat sink.
  • The silicone grease thermal pad acts as a heat sink and aids in better heat dissipation, thereby increasing the module's lifespan.
