CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K

Product image 1
1 / 6

CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K

Model No CDAC-80-5028-120V-50
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 20W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 2200 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)

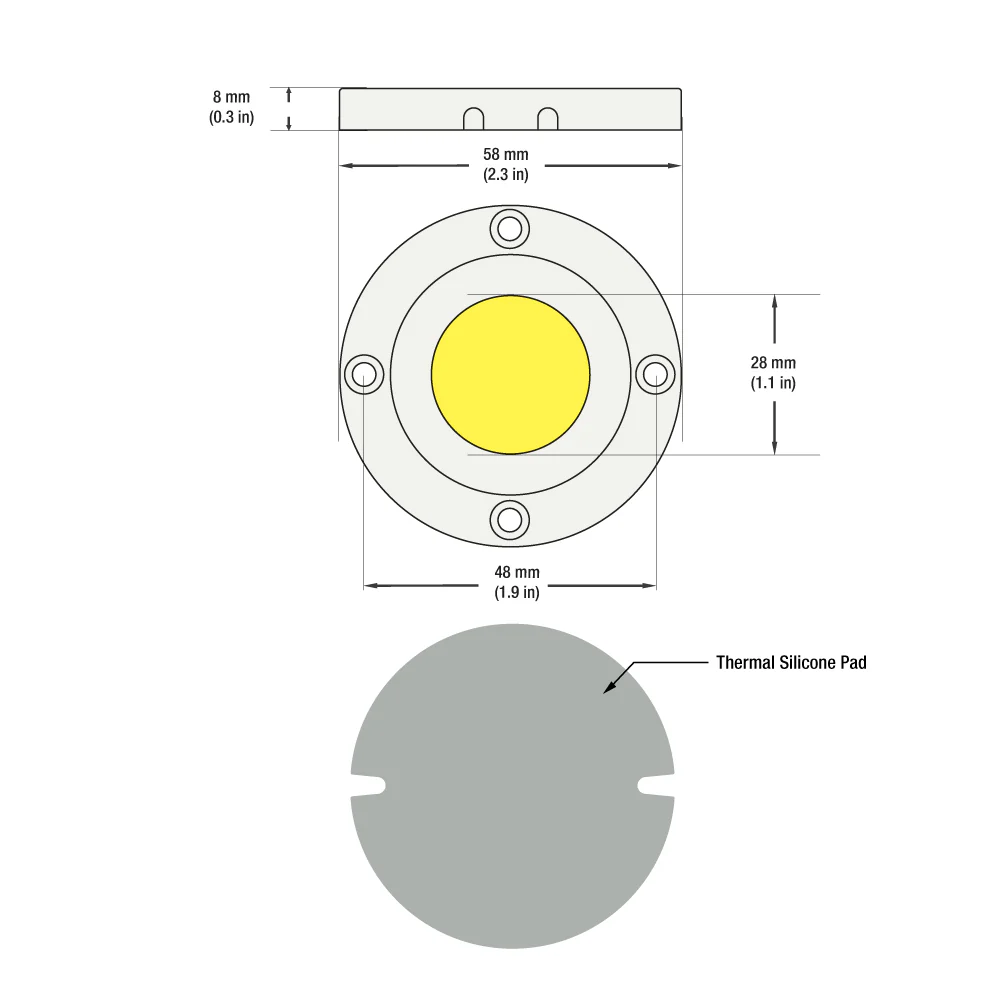

COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Array Holder, Thermal Pad
Certifications



Features:

  • Low power consumption and high energy efficiency.
  • Suitable for damp locations.
  • Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
  • COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
  • It is important to ground light fixtures during the lamp design process for safety.
  • COB LEDs are commonly used in various types of luminaires.

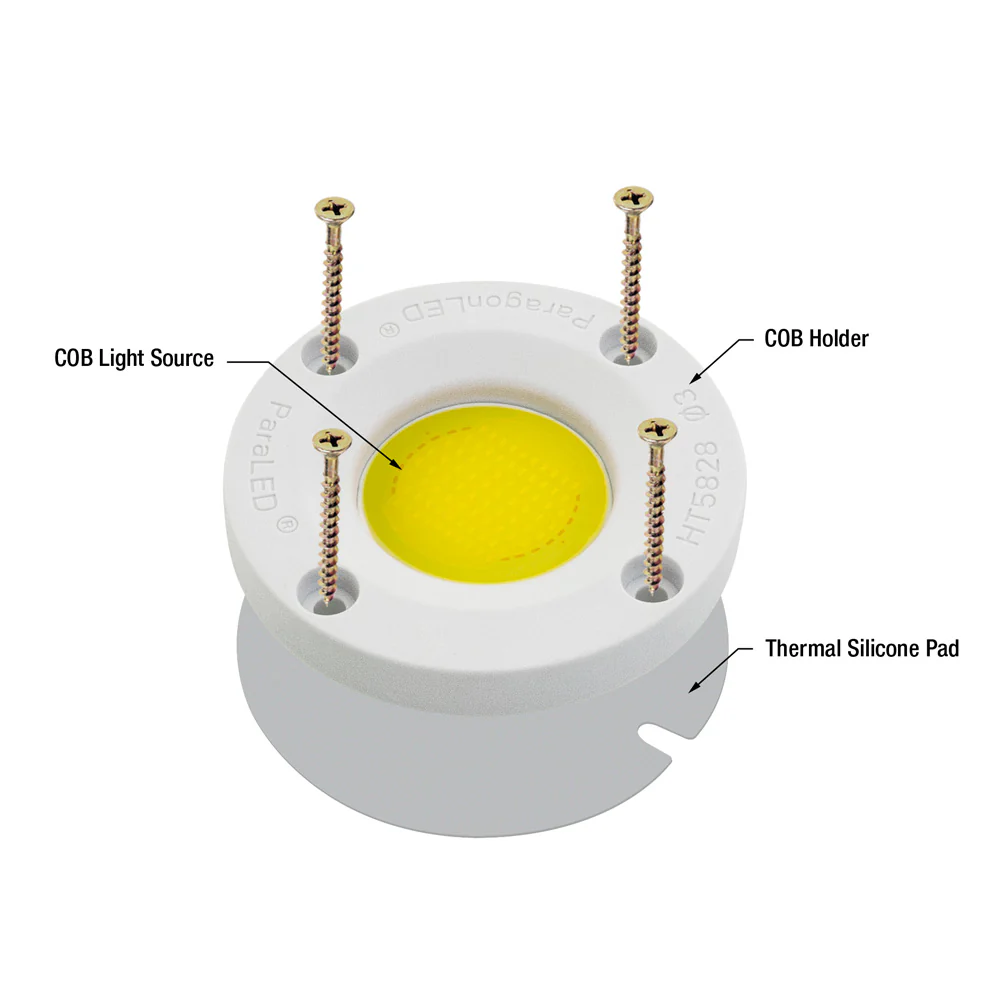

  • The COB holder with the glass diffuser allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
  • The silicone grease thermal pad provides effective heat dissipation, thereby increasing the module's lifespan.
$20.93

Original: $69.75

-70%
CDAC-80-5028-120V-50 COB Paragon LED Module with HT5828 LED Holder, 120V 20W 5000K—

$69.75

$20.93

Product Information

Shipping & Returns

Description

Model No CDAC-80-5028-120V-50
COB Holder Model No HT5828
LED Type
 COB LED
No LED chips 80
Wattage 20W
Voltage 120V AC
Power Factor PF>0.85
Luminous Intensity 2200 lumens
Color Temperature 5000K (Daylight)
Dimmable Yes
Rendering Index CRI>80
IP Rating IP20 (Indoor rated)
COB Holder Dimensions ∅58mm (2.3in) x H8mm (0.3 in)
COB Module Outer Diameter ∅28mm (1.1 in)
Operating Temperature -40 ~ +105℃
Storage Temperature -40 ~ +105℃
Included Content COB Module, COB LED Array Holder, Thermal Pad
Certifications



Features:

  • Low power consumption and high energy efficiency.
  • Suitable for damp locations.
  • Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
  • COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
  • It is important to ground light fixtures during the lamp design process for safety.
  • COB LEDs are commonly used in various types of luminaires.
  • The COB holder with the glass diffuser allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
  • The silicone grease thermal pad provides effective heat dissipation, thereby increasing the module's lifespan.
