SP901E LED Pixel SPI Signal Amplifier Repeater Addressable LED Strip and Dream Color Programmable LED Matrix Panel, 5V~24V
1 / 4
SP901E LED Pixel SPI Signal Amplifier Repeater Addressable LED Strip and Dream Color Programmable LED Matrix Panel, 5V~24V
| Model | SP901E |
| Voltage | 5V~24V DC |
| Working current | 3mA-6mA |
| Working temperature | -20 ~ +60℃ |
| Output | 8 channels / 4 channels |
| Compatible IC type | WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102 |
| Static power consumption | <1W |

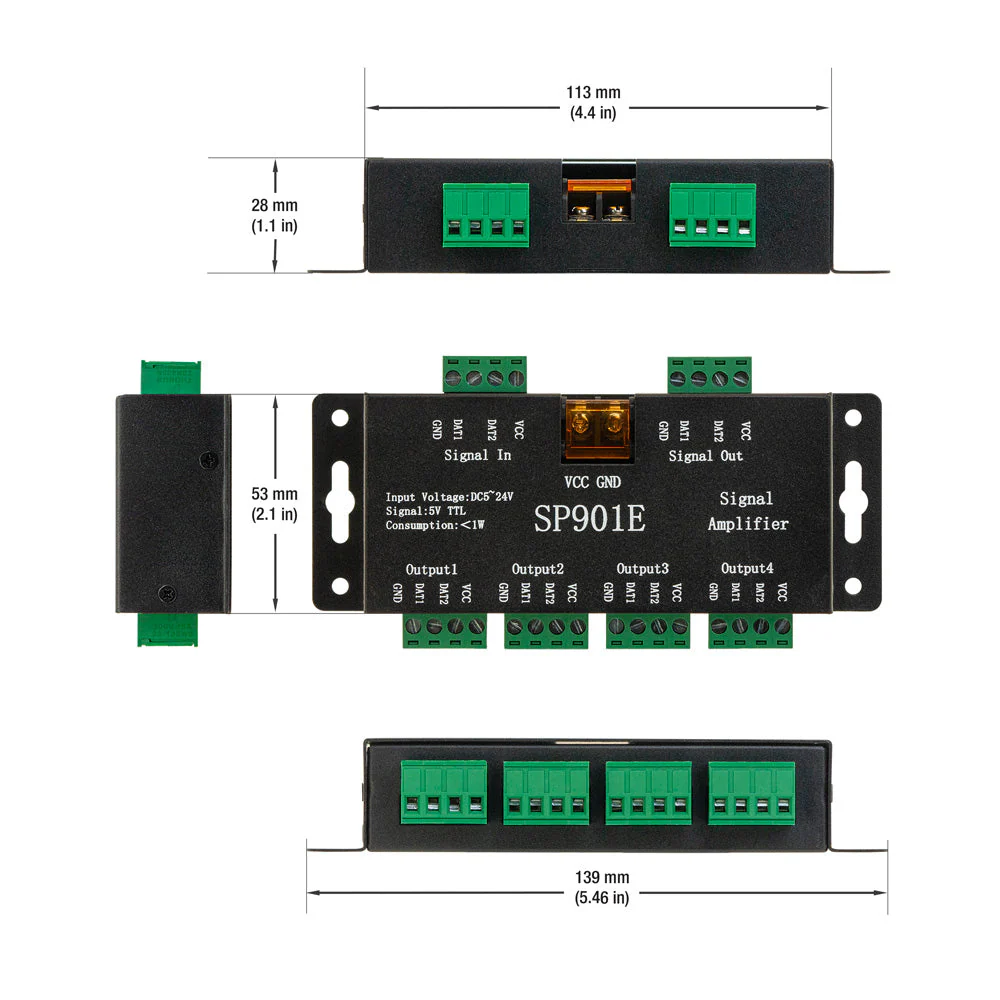

| Dimensions | 139 x 53 x 28mm (5.4 x 2.1 x 1.1in) |
Features:
- Multi-Channel Output: Generates 4 or 8 channels of signals from a single input, offering precise control for LED pixels.
- Versatile LED Strip Support: Compatible with a wide range of LED strips, including single-data-wire types like WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, and those with data and clock wires such as WS2801, APA102, SK9822, and dual data wires like WS2813 and WS2815.
- Simplified Setup: Allows control of multiple LED strip types with a single controller, streamlining your setup.
- Broad Voltage Range: Operates across a wide voltage range from DC5V to DC24V, but it does not regulate the output voltage.
- Expandable and Synchronous: Multiple units can be cascaded together for synchronous operation, making it ideal for small and medium dream color lighting projects.
- Enhanced Control: Augments LED lighting control capabilities, extending your lighting setup and supporting diverse LED strip types.
$15.20
Original: $50.66
-70%SP901E LED Pixel SPI Signal Amplifier Repeater Addressable LED Strip and Dream Color Programmable LED Matrix Panel, 5V~24V—
$50.66
$15.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | SP901E |
| Voltage | 5V~24V DC |
| Working current | 3mA-6mA |
| Working temperature | -20 ~ +60℃ |
| Output | 8 channels / 4 channels |
| Compatible IC type | WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703, WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102 |
| Static power consumption | <1W |
| Dimensions | 139 x 53 x 28mm (5.4 x 2.1 x 1.1in) |
Features:
- Multi-Channel Output: Generates 4 or 8 channels of signals from a single input, offering precise control for LED pixels.
- Versatile LED Strip Support: Compatible with a wide range of LED strips, including single-data-wire types like WS2812B, WS2811, SK6812RGB, SK6812-RGBW, SM16703, and those with data and clock wires such as WS2801, APA102, SK9822, and dual data wires like WS2813 and WS2815.
- Simplified Setup: Allows control of multiple LED strip types with a single controller, streamlining your setup.
- Broad Voltage Range: Operates across a wide voltage range from DC5V to DC24V, but it does not regulate the output voltage.
- Expandable and Synchronous: Multiple units can be cascaded together for synchronous operation, making it ideal for small and medium dream color lighting projects.
- Enhanced Control: Augments LED lighting control capabilities, extending your lighting setup and supporting diverse LED strip types.
