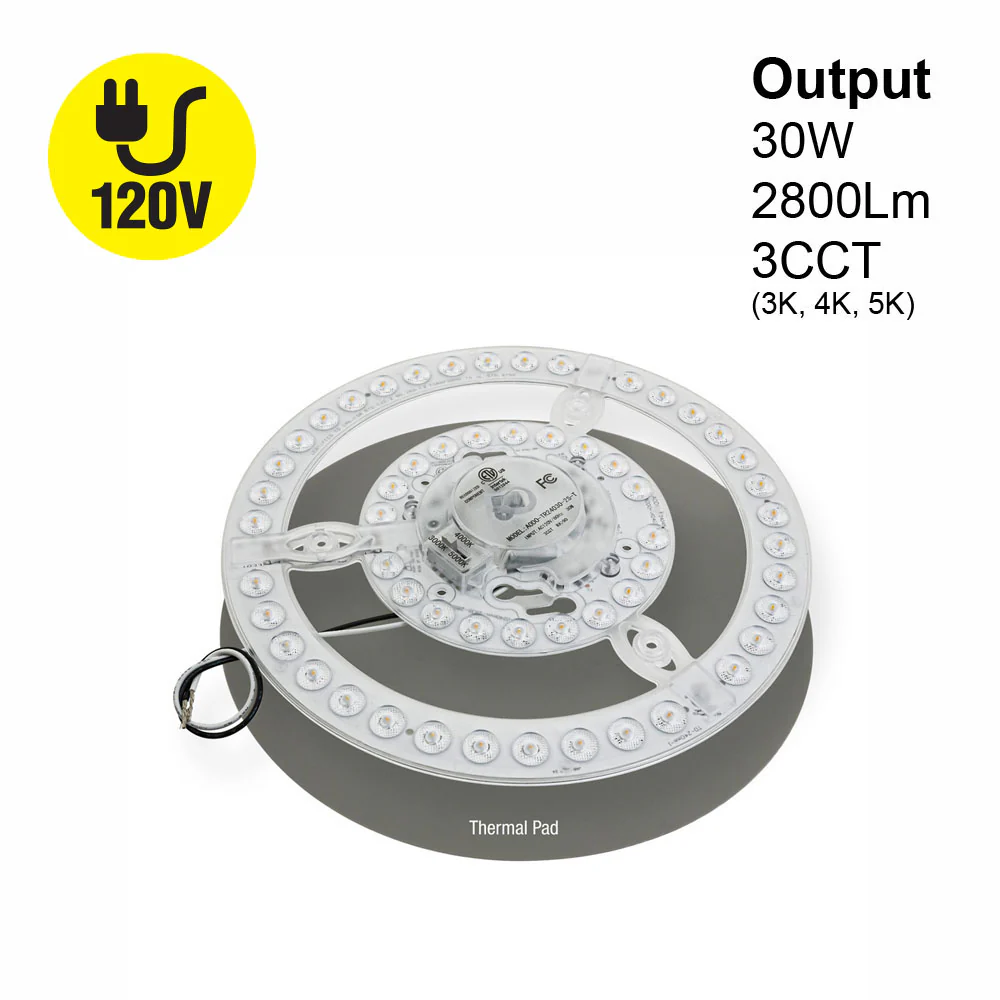

9.4 inch Round Disc LED Module TR24030-T, 120V 30W 3CCT(3K, 4K, 5K)
| Model No | TR24030-T |
| No of LEDs | 56 |
| Wattage | 30WĀ |
| Voltage | 120V AC |
| Luminous Flux | 2800 lumens @5000KĀ |
| Color Temperature | Selectable 3CCT 3000K (Warm White) 4000K (Natural White) 5000K (Daylight) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum (Metallic Base) |
| Package ComponentsĀ | LED Module Thermal Silicon Pad 10 inch Black and White power feed |
|

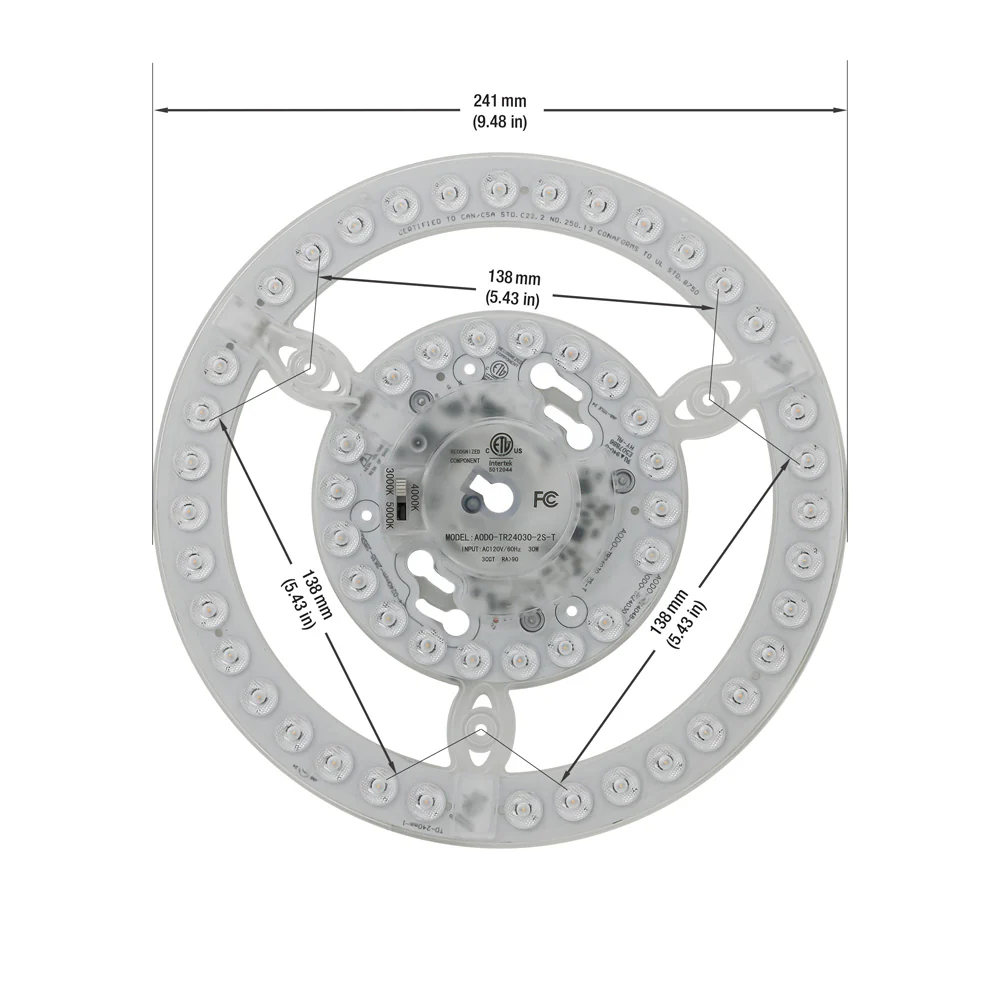

Outer Diameter |
ā 241mm (9.4 in)Ā |
| Distance between Screw holes | ā
138mm (5.4 in) |
| Height | 19mm (0.74 in) |
| Certification | Ā ![]() |
Ā
Features:
- 56 high-quality LEDs that produce 2800@5000K lumens of warm white light with a 3CCT(3K, 4K, 5K)
- Power consumption of 30W and high energy efficiency that saves on energy costs
- Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
- Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
- etl certified, ensuring that it meets high safety and quality standards
- High rendering index of CRI>90, making colors appear more vibrant and true-to-life
- Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- ApplyĀ ThermalĀ Silicon PadĀ evenly on the bottom of the light source and the contact surface of the heat sink when installation.
