Model	OTM-TD30
Input Voltage	90-130V AC
Input Current	0.35A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	1200mA
Output Power	24W
Output Voltage	14-20V DC
Dimmable:	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)

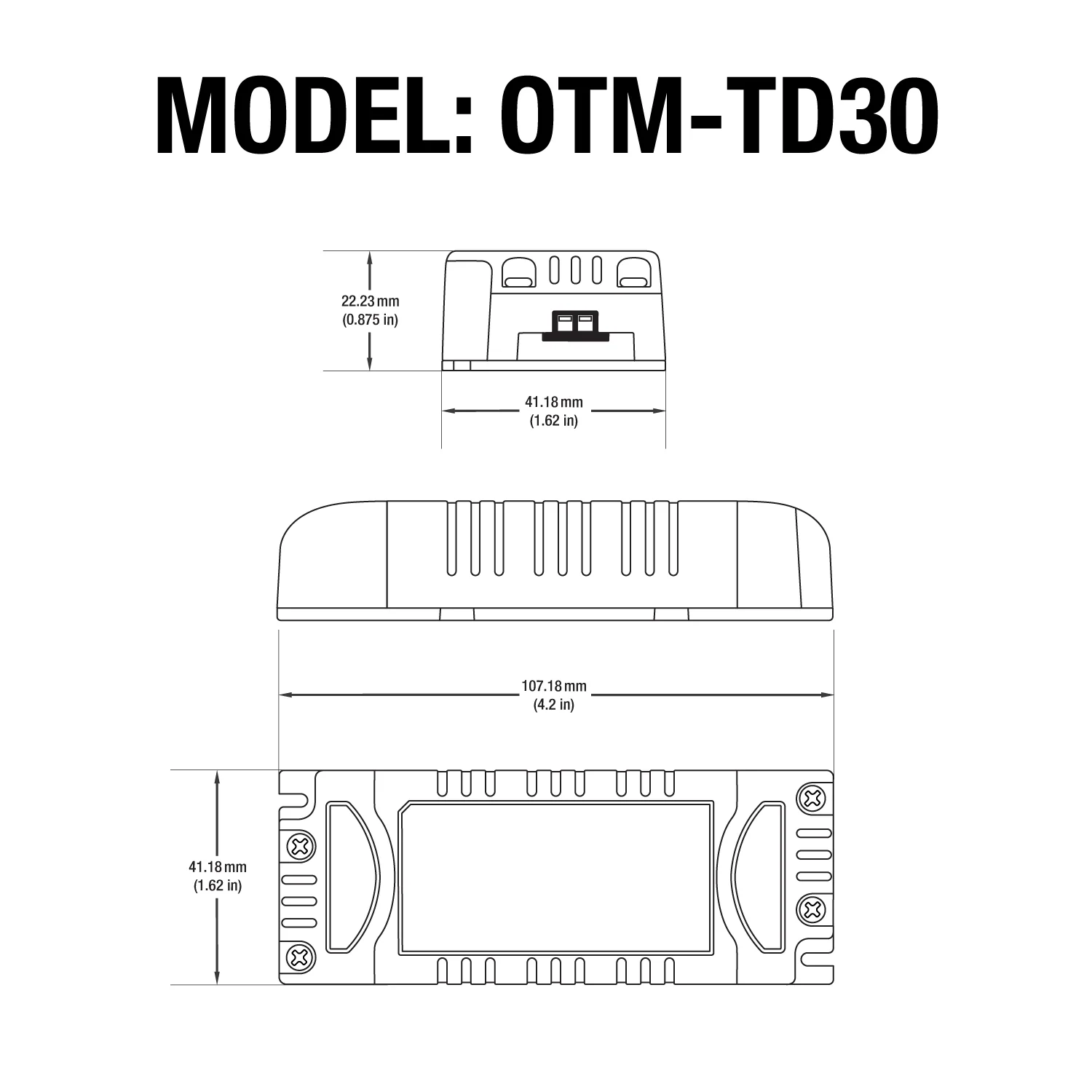

Dimensions	107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in)
Class Certification	Class II
Certification

Features:

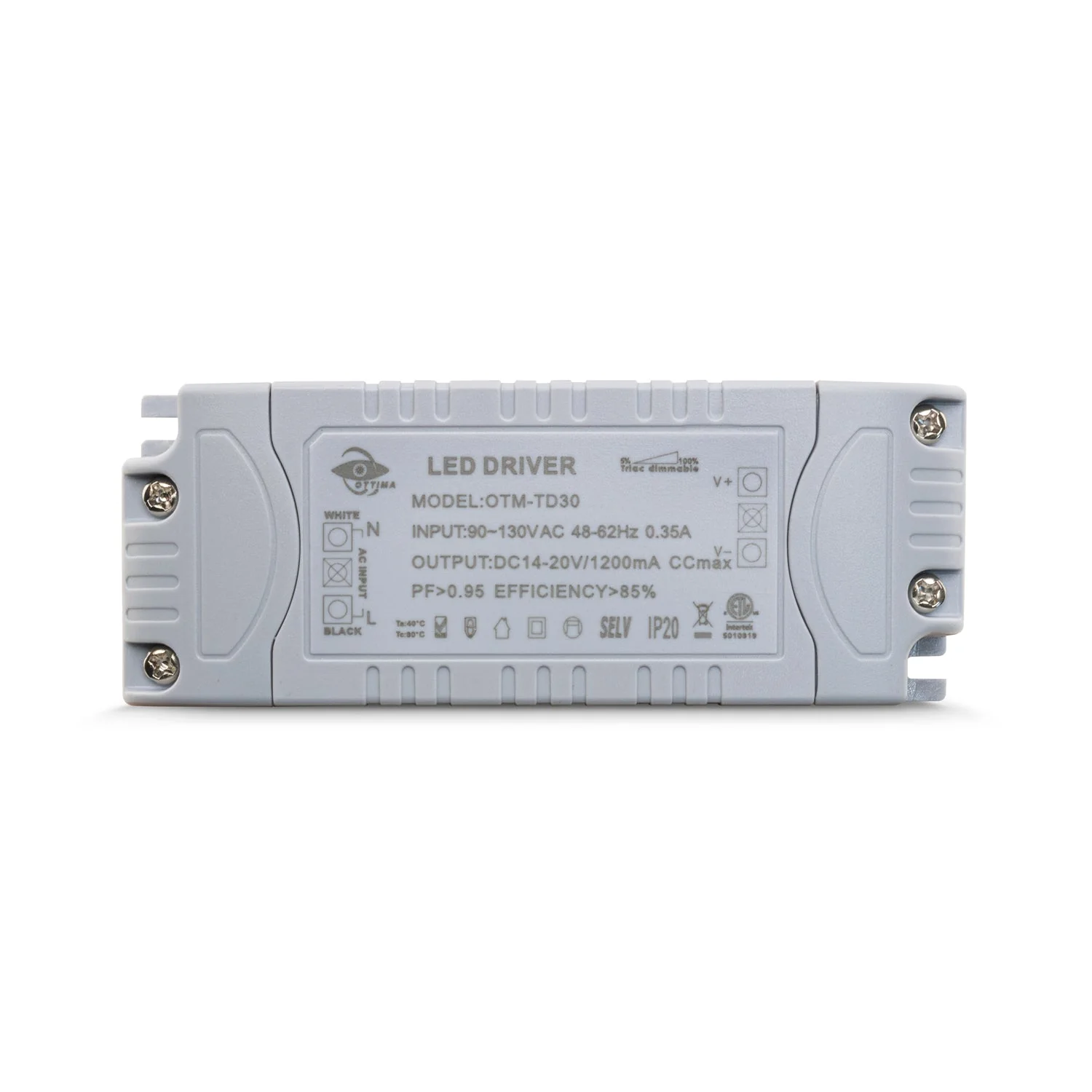

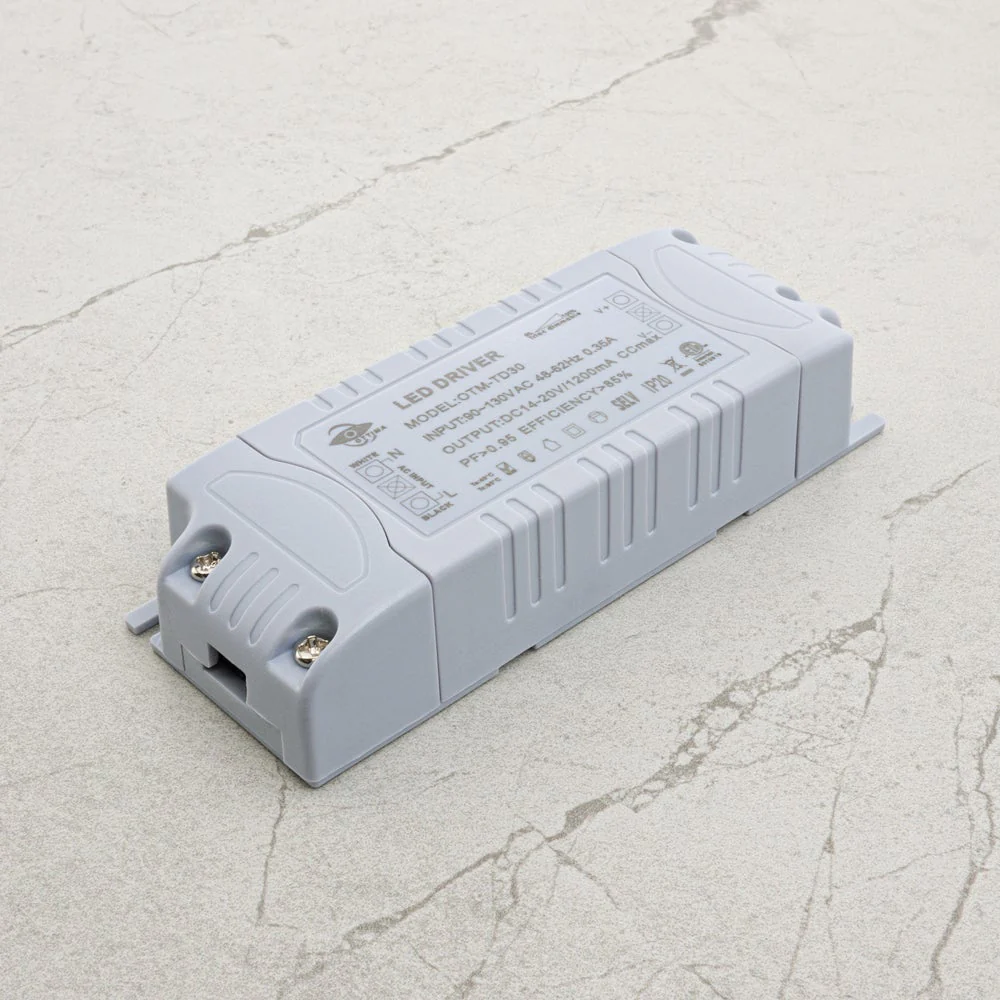

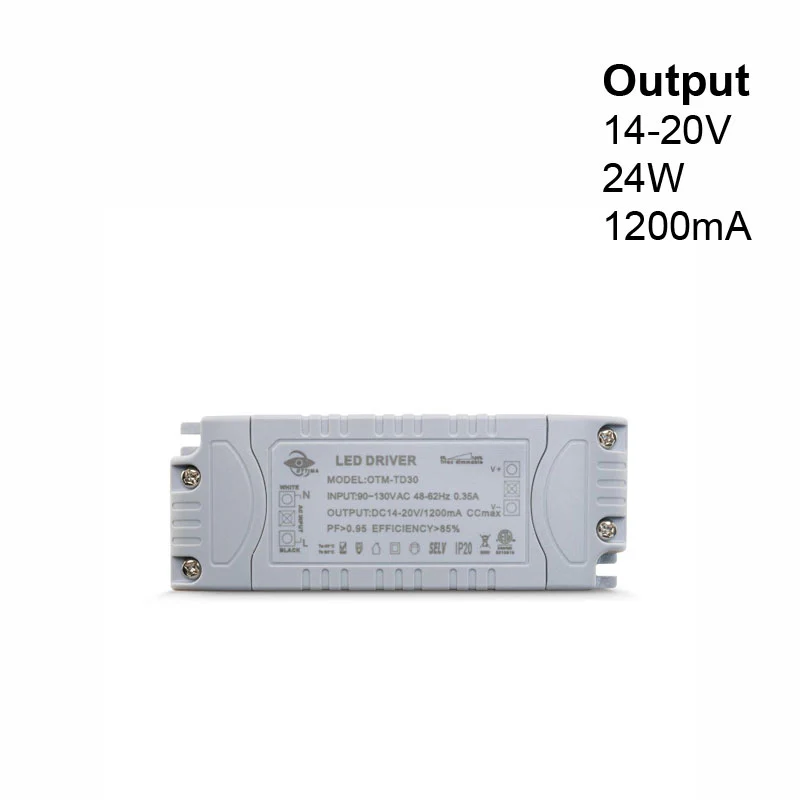

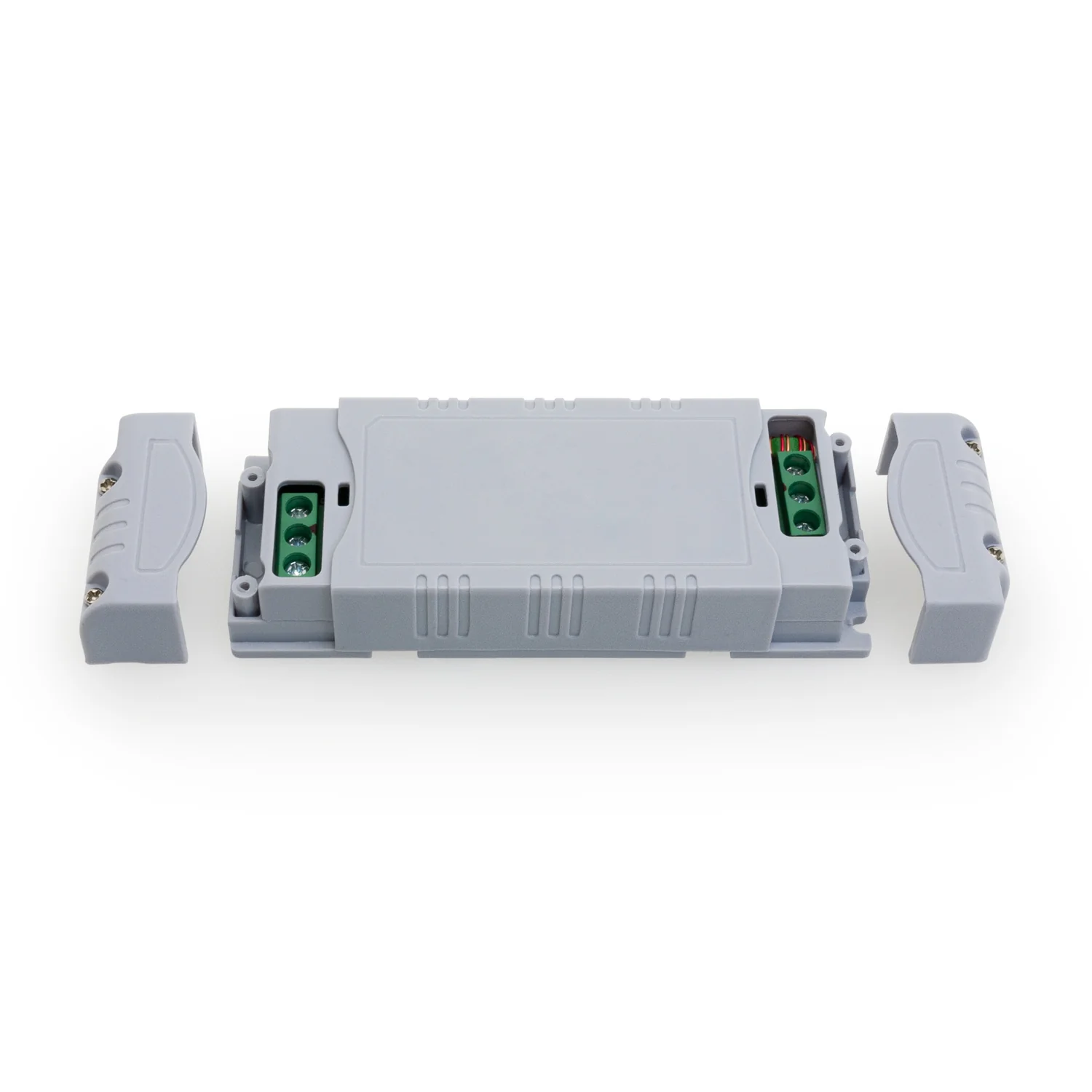

• OTTIMA OTM-TD30 Constant Current LED Driver
• Regulated output current of 1200mA for powering LED lighting systems
• Input voltage range: 90-130V AC, input current: 0.35A, input frequency: 48-62Hz
• High power factor (>0.95) and efficiency (>85%)
• Maximum output power: 24W, output voltage: 14-20V DC
• Dimmable with Triac dimming for adjustable lighting brightness
• IP20 rating for indoor use
• Operating ambient temperature: up to 40°C, maximum case temperature: 90°C
• Compact dimensions: 107.18 x 41.18 x 22.83 mm (4.2 x 1.62 x 0.875 in)
• Class II certified for double insulation protection
• Reliable and efficient constant current LED driver for indoor lighting applications requiring brightness control.
