Model	OTM-TD20
Input Voltage	90-130V AC
Input Current	0.24A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	1250mA
Output Power	15W
Output Voltage	8-12V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)

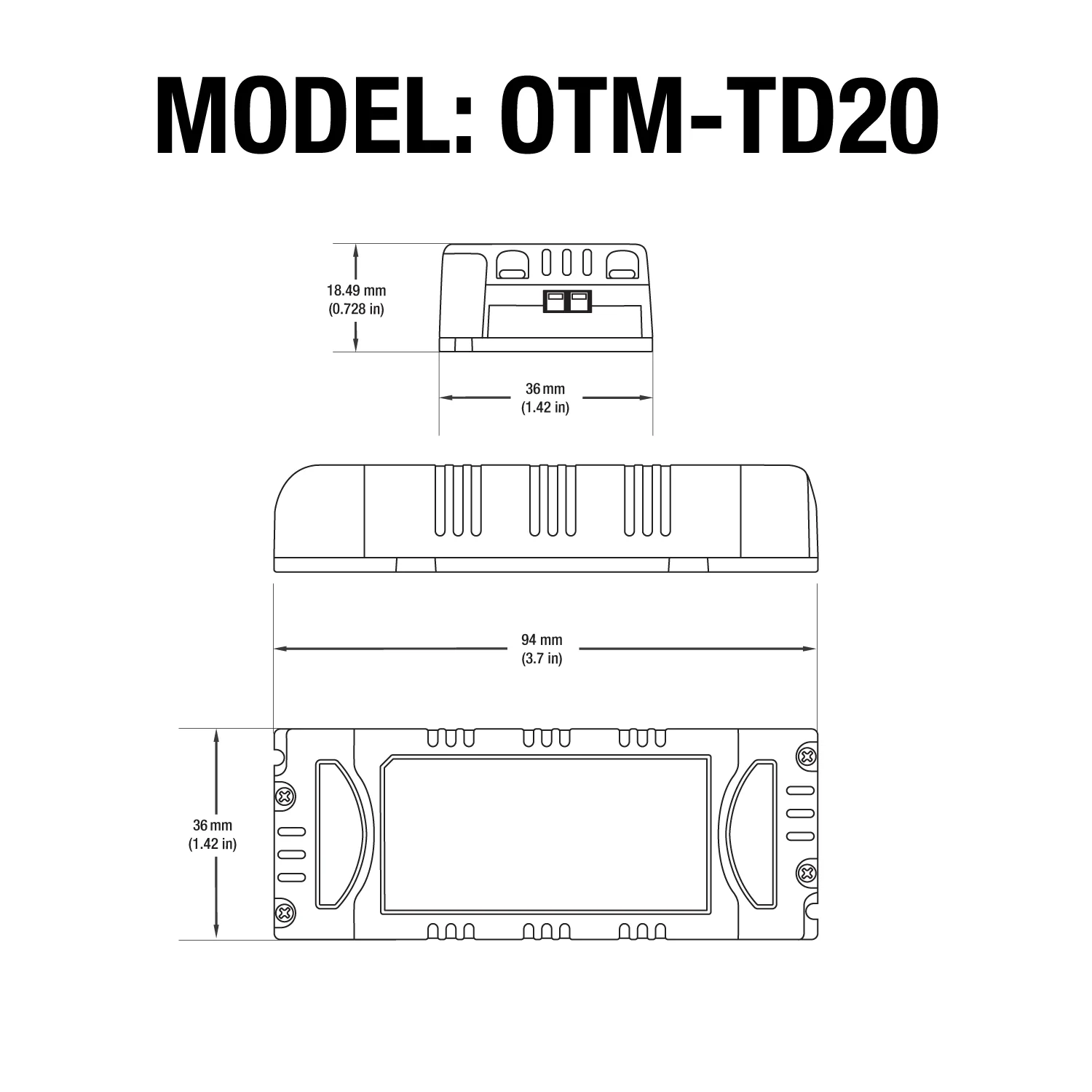

Dimensions	94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification	Class II
Certification

Features:

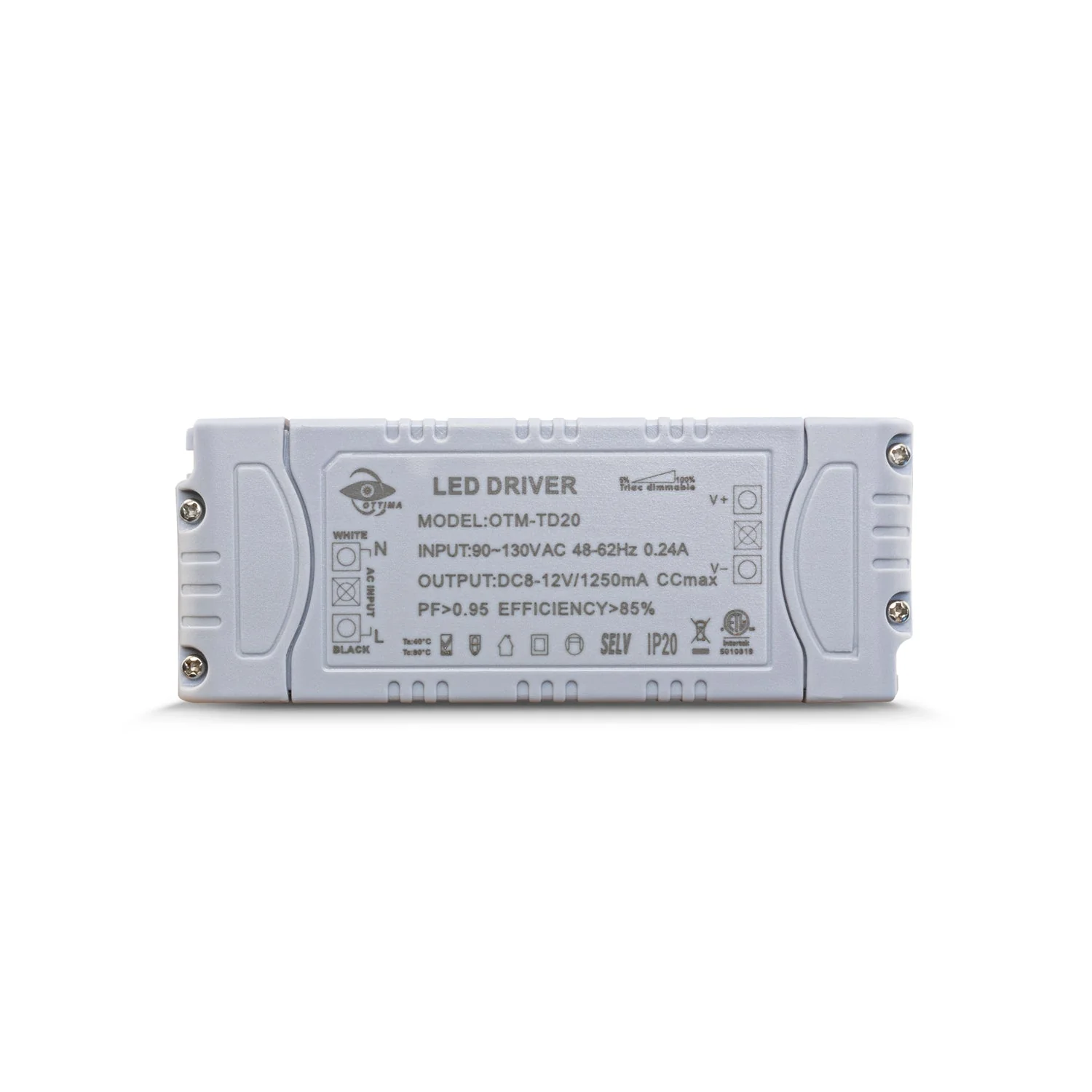

• OTTIMA OTM-TD20 Constant Current LED Driver

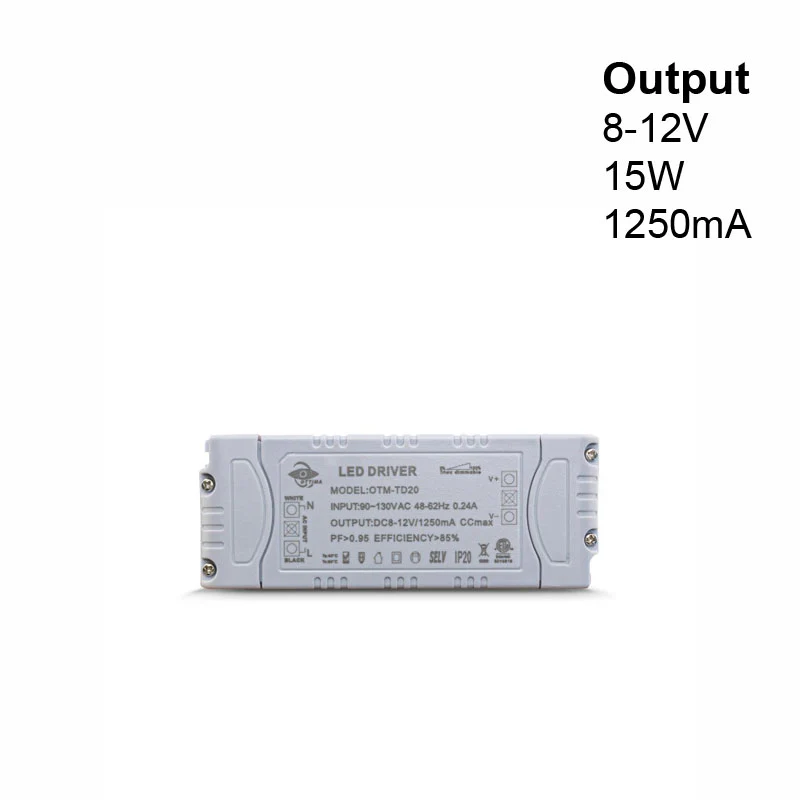

• Regulated output current: 1250mA, output power: 15W
• Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
• High power factor (PF>0.95) and efficiency (>85%)
• Dimmable using Triac dimming technology
• Output voltage range: 8-12V DC
• Ambient temperature rating: 40°C, case temperature rating: 90°C
• Designed for indoor use with an IP20 rating
• Compact dimensions: 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
• Class II certification for added safety
• Ideal for powering LED lights with a regulated current of 1250mA and an output power of 15W, suitable for indoor lighting applications. The driver's Triac dimming capability allows for adjustable light intensity.
