Selectable Constant Current 40W LED Driver Triac Dim PUP40T-1LMC-1200 , 120VAC 850 to 1200mA

Product image 1
1 / 4

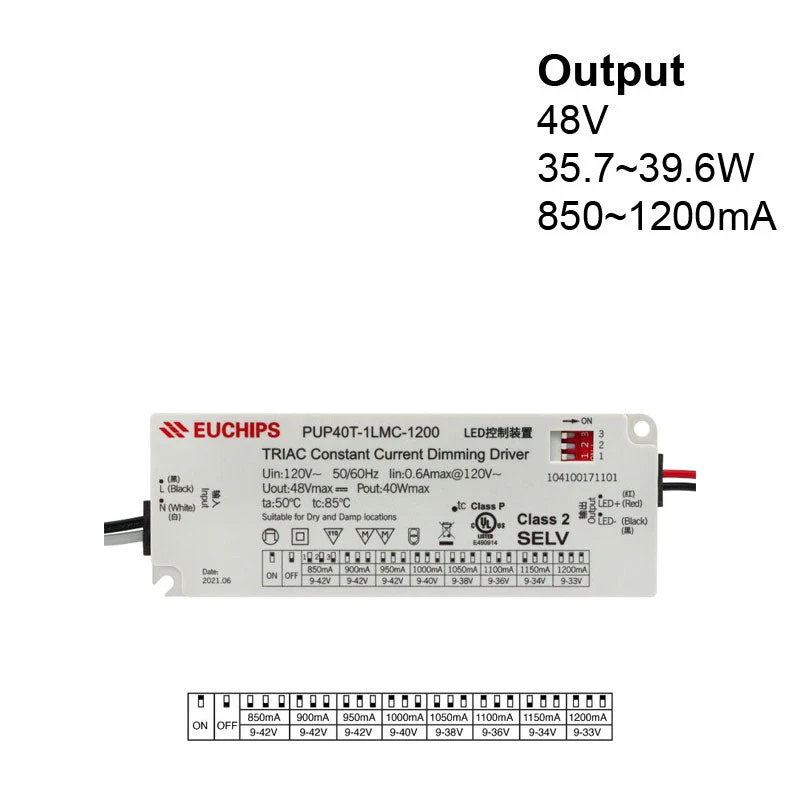

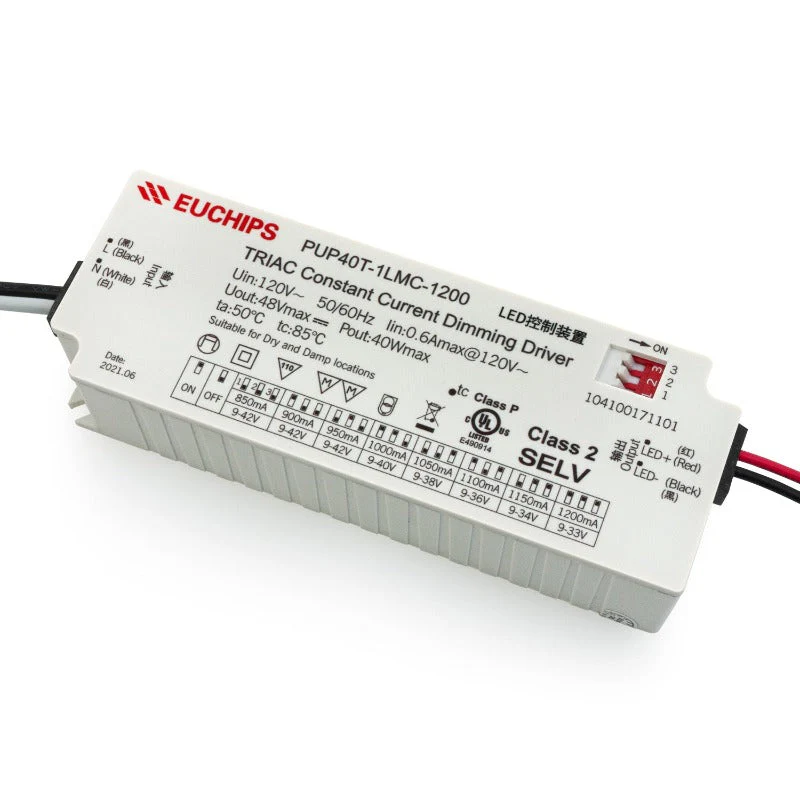

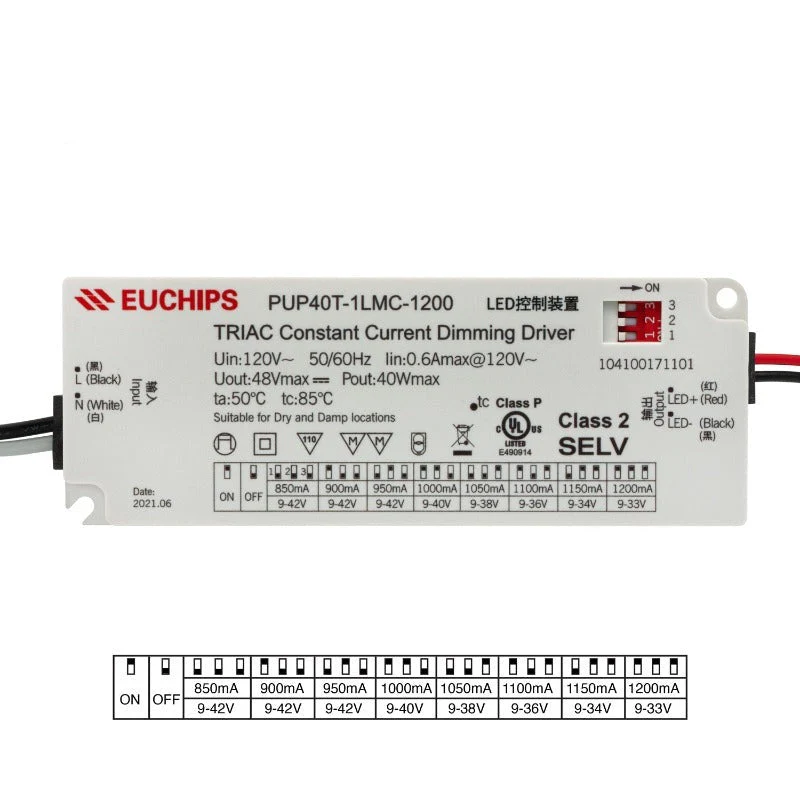

Selectable Constant Current 40W LED Driver Triac Dim PUP40T-1LMC-1200 , 120VAC 850 to 1200mA


Model PUP40T-1LMC-1200
Input Voltage 120VAC(108-132VAC)
Input Current 0.6Amax@120VAC
Output Current/Voltage/Power

850mA/9-42VDC/35.7W
900mA/9-42VDC/37.8W
950mA/9-42VDC/39.99W
1000mA/9-40VDC/40W
1050mA/9-38VDC/39.9W
1100mA/9-36VDC/39.6W
1150mA/9-34VDC/39.1W
1200mA/9-33VDC/39.6W
No-load Output Voltage 48V Max
Input Frequency 50/60Hz
Dimming Type Triac
Dimming Range 5%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency >84%@120VAC,850mA ,Full load >83%@120VAC,1200mA ,Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

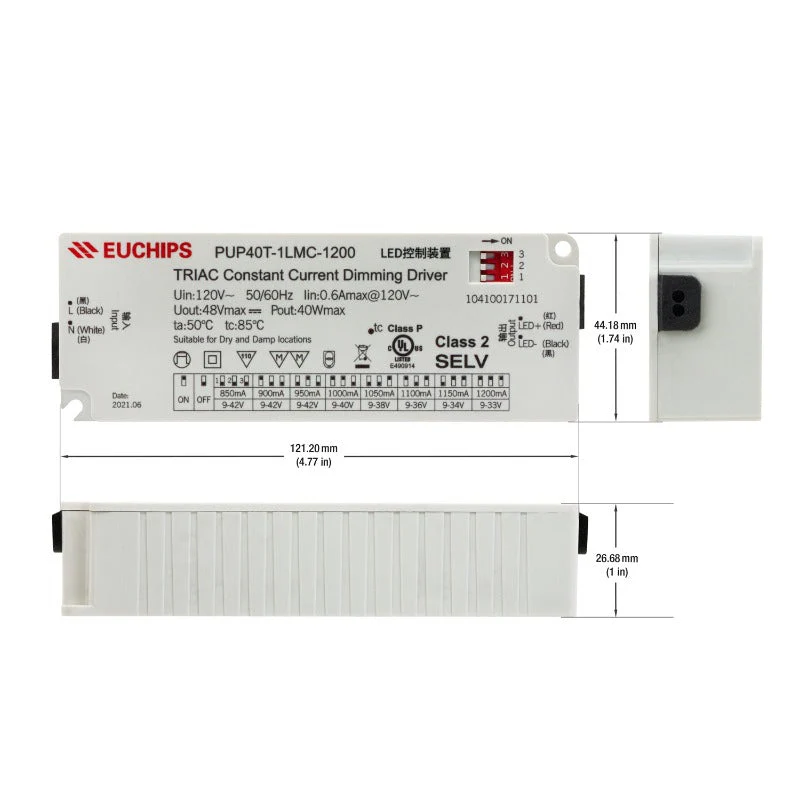

Dimensions 121.2 x 44.1 x 26.6mm (4.77 x 1.74 x 1in)
Certifications



Features:

  • The PUP40T-1LMC-1200 is a selectable constant current LED driver designed for LED lighting systems
  • Input voltage range of 120VAC (108-132VAC) and delivers a constant current output of 850mA to 1200mA
  • Output voltages ranging from 9V to 42V and output power ranging from 35.7W to 39.9W depending on selected current
  • Supports triac dimming with dimming range of 5%-100%, enabling precise control over brightness and dimming to off
  • Rated IP20, suitable for use in dry and damp indoor locations
  • High efficiency (>84% at 120VAC, 850mA full load and >83% at 120VAC, 1200mA full load)
  • Working temperature range of -20℃ to 50℃ and long lifetime of up to 50,000 hours at a maximum case temperature of 85℃
