Model	LD048H-CU13336-M48E
Input Voltage	110 - 277V AC
Input Current	0.55-0.22A
Frequency	50/60Hz
Output Voltage	24-36V DC
Output Regulated Current	1330mA
Output Power	47.8W max
Dimmable	Yes
Class Certification	Class 2

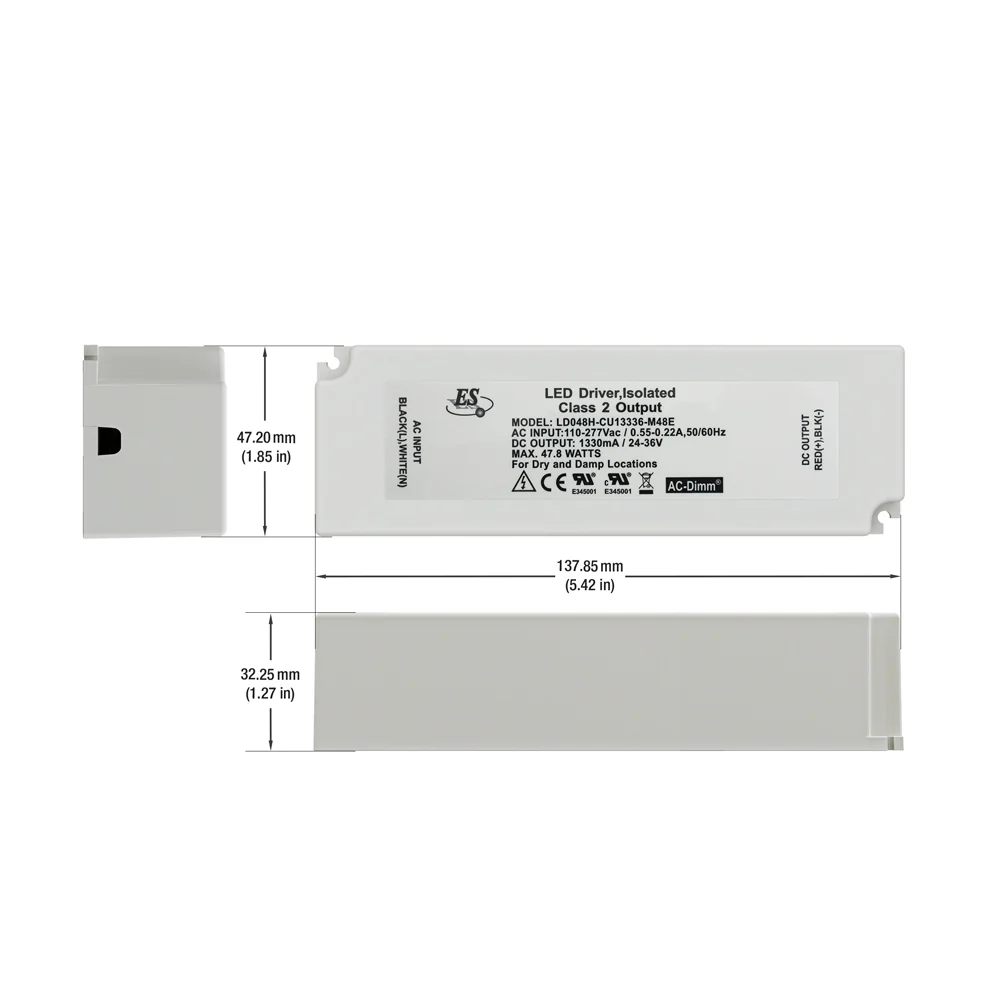

Dimensions	137.85 x 32.25 x 47.2mm (5.42 x 1.27 x 1.8 in)
Certifications

Applicable for dry and damp locations

Suitable for operation with main supply dimmer



Features:

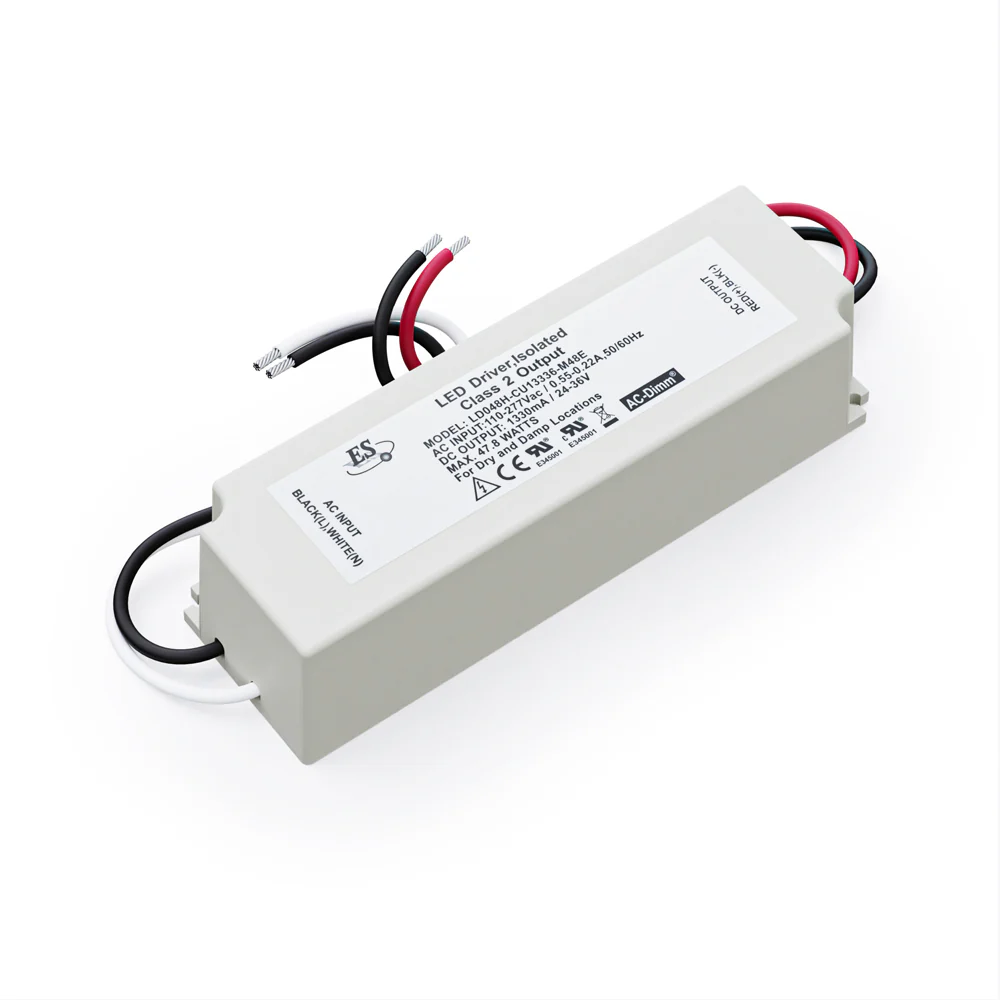

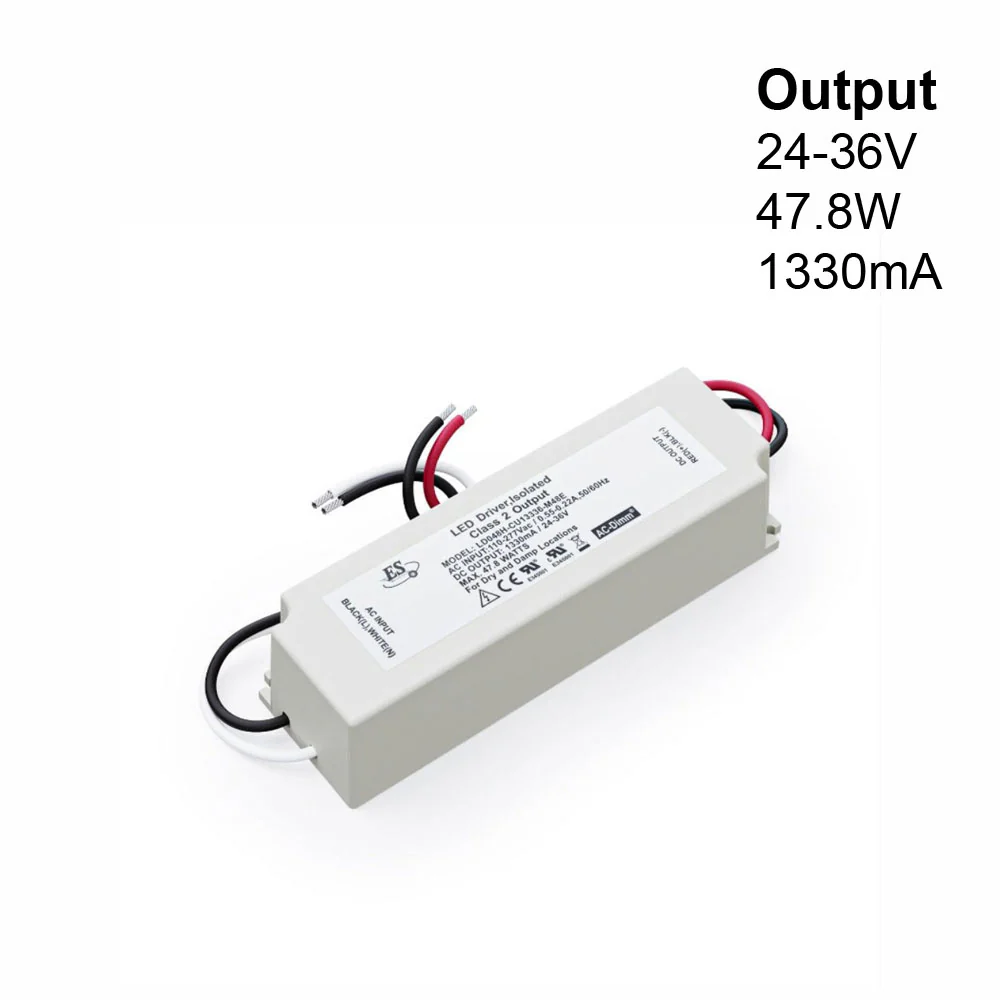

• ES LD048H-CU13336-M48E is a constant current LED driver
• Designed to power LED lights with a regulated output current of 1330mA and an output voltage of 24-36V DC
• Input voltage range: 110-277V AC
• Input current ranges from 0.55A to 0.22A
• Frequency: 50/60Hz
• Dimmable driver for controlling brightness
• Maximum output power: 48W
• Class 2 certified for indoor lighting applications
• Compact dimensions: 137.85 x 32.25 x 47.2mm (5.42 x 1.27 x 1.8 in)
• Provides reliable and efficient power supply to connected LED lights
• Suitable for LED lights with an output voltage between 24-36V DC and a maximum current of 1330mA.
