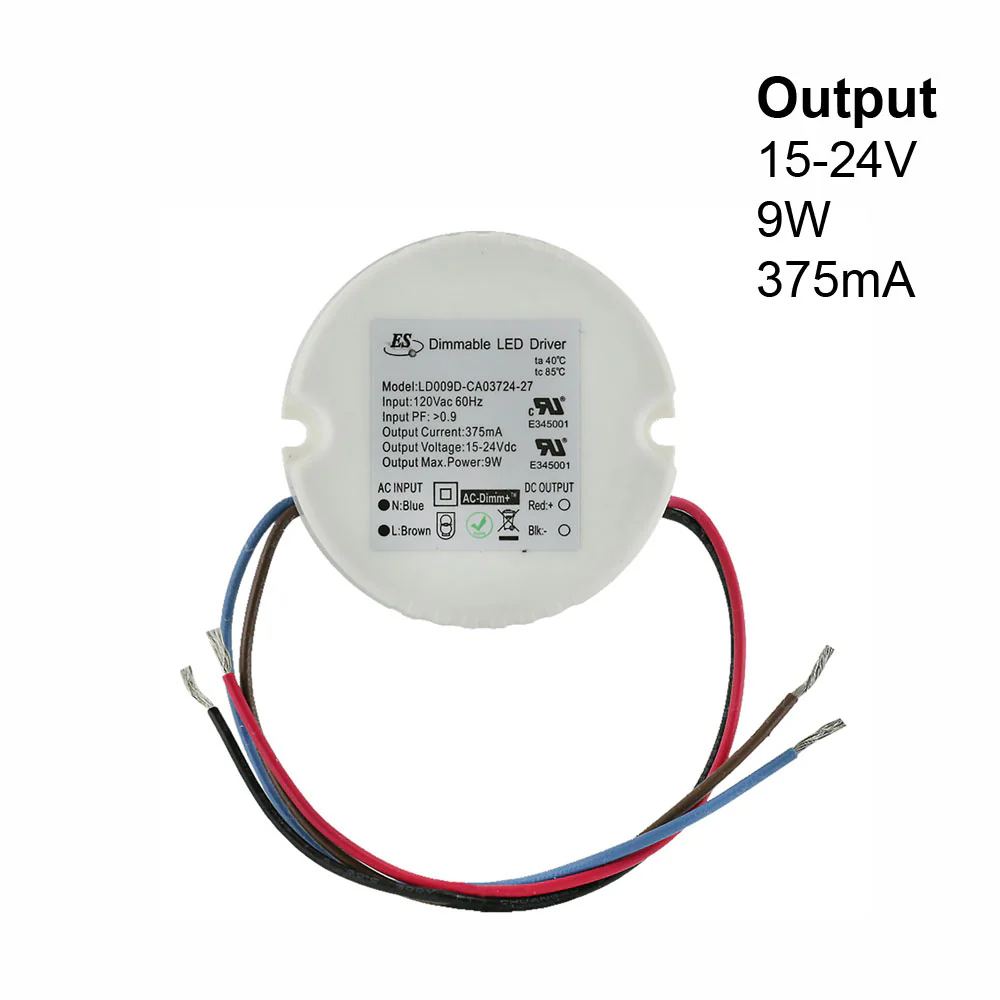

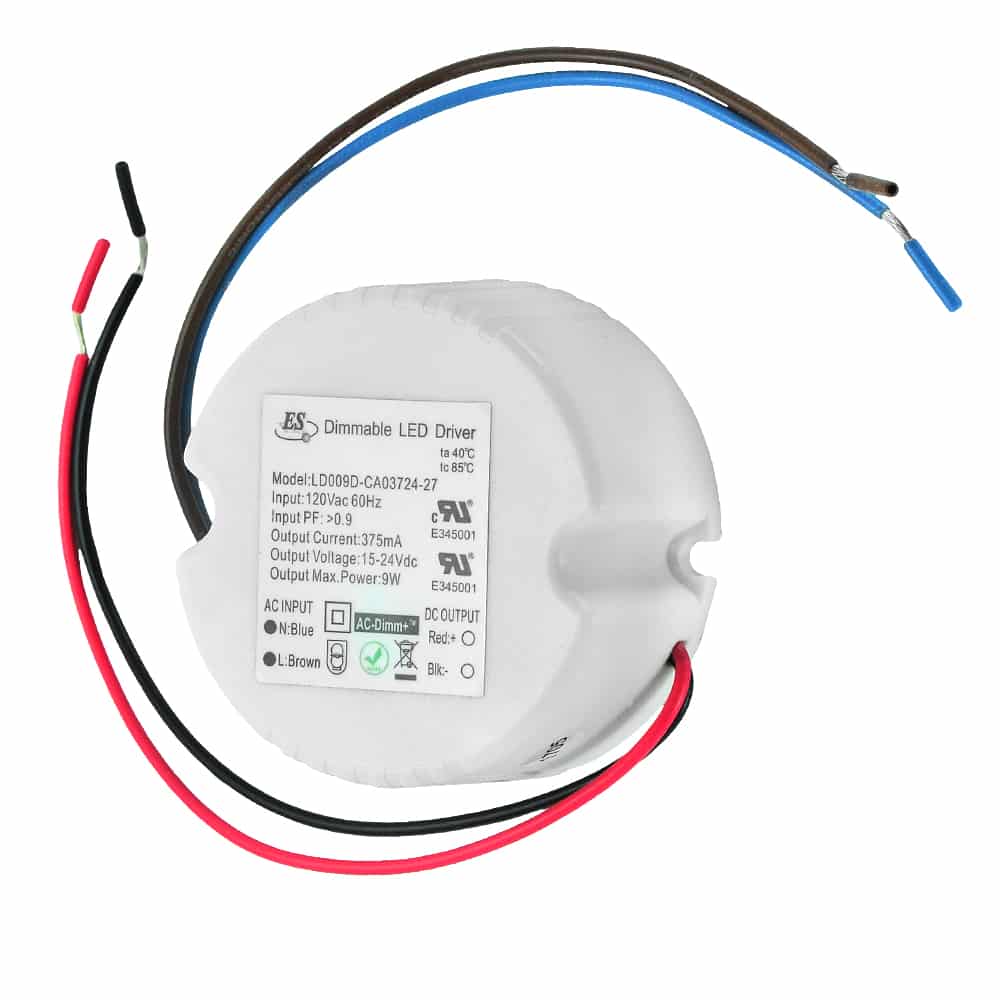

Model	LD009D-CA3724-27
Input Voltage	120V AC
Frequency	60Hz
Output Regulated Current	375mA
Power	9W
Output Voltage Max	15-24V DC
Dimmable	Yes
Class Certification	Class II

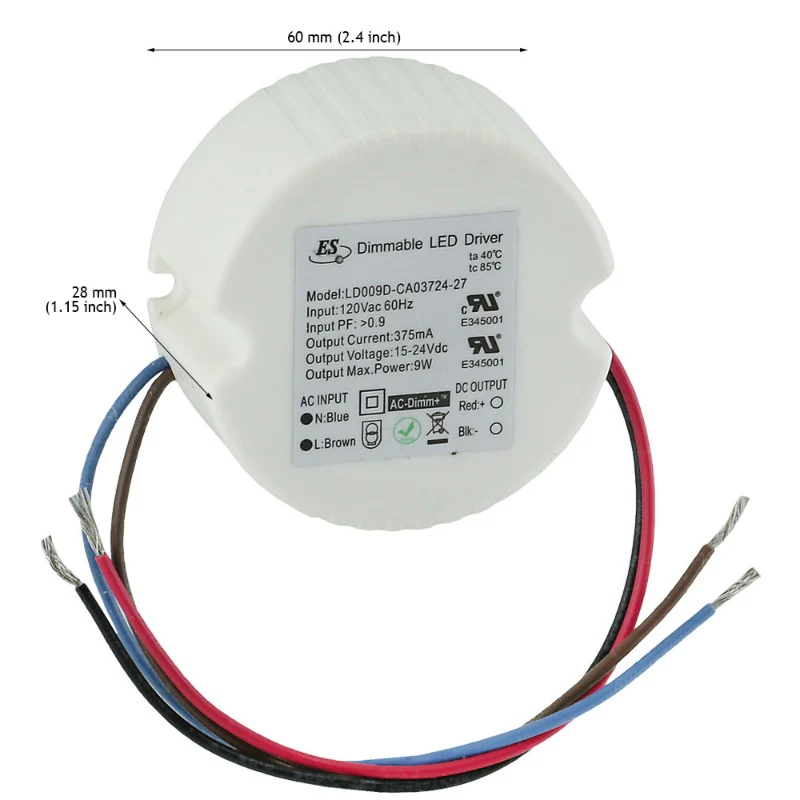

Dimensions	60mm (2.4 in) Dia x 28mm (1.15 in) Depth
Certification

Suitable for operation with main supply Dimmer

Suitable for DRY and DAMP locations



Features:

• ES LD009D-CA3724-27 Constant Current LED Driver designed for powering LED lighting fixtures
• Input voltage of 120V AC and frequency of 60Hz for compatibility with standard electrical systems
• Input current of 0.25A for efficient operation
• Regulated output current of 375mA for reliable power delivery to LED lighting fixtures
• Maximum power output of 9W, suitable for LED lighting fixtures up to 9 watts
• Output voltage range of 15-24V DC, accommodating various LED lighting fixtures with different voltage requirements
• Dimmable feature allows for adjustable brightness control of the LED lighting fixtures
• Class II certification for safe use in locations without a grounded electrical system
• Compact design with a diameter of 60mm (2.4 inches) and a depth of 28mm (1.15 inches) for easy installation in tight spaces
• Reliable and efficient solution for powering LED lighting fixtures in a variety of applications.
