Model	LD018H-CU04342-M18E
Input Voltage	120V AC
Input Current	0.23A
Frequency	60 Hz

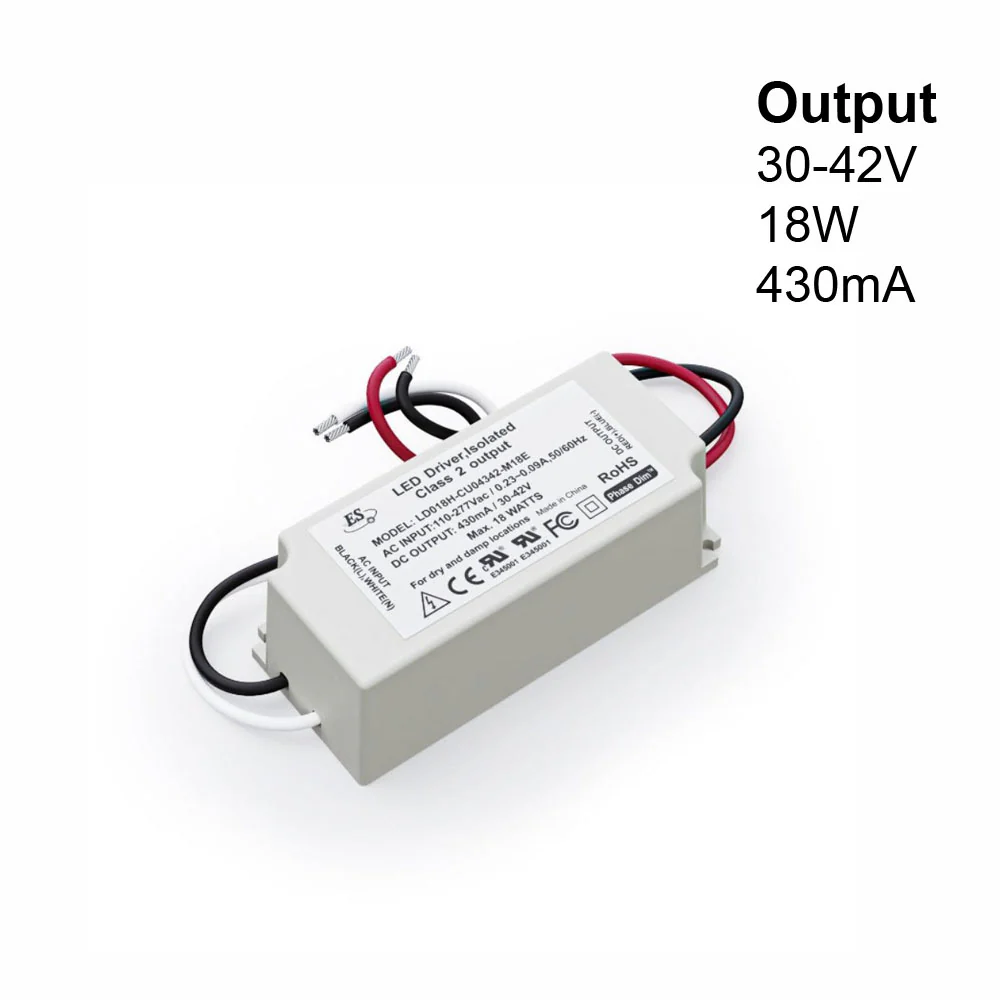

Output Regulated Current	430mA
Output Power	18W
Output Voltage	30-42V DC
Class Certification:	Class 2/ Class II

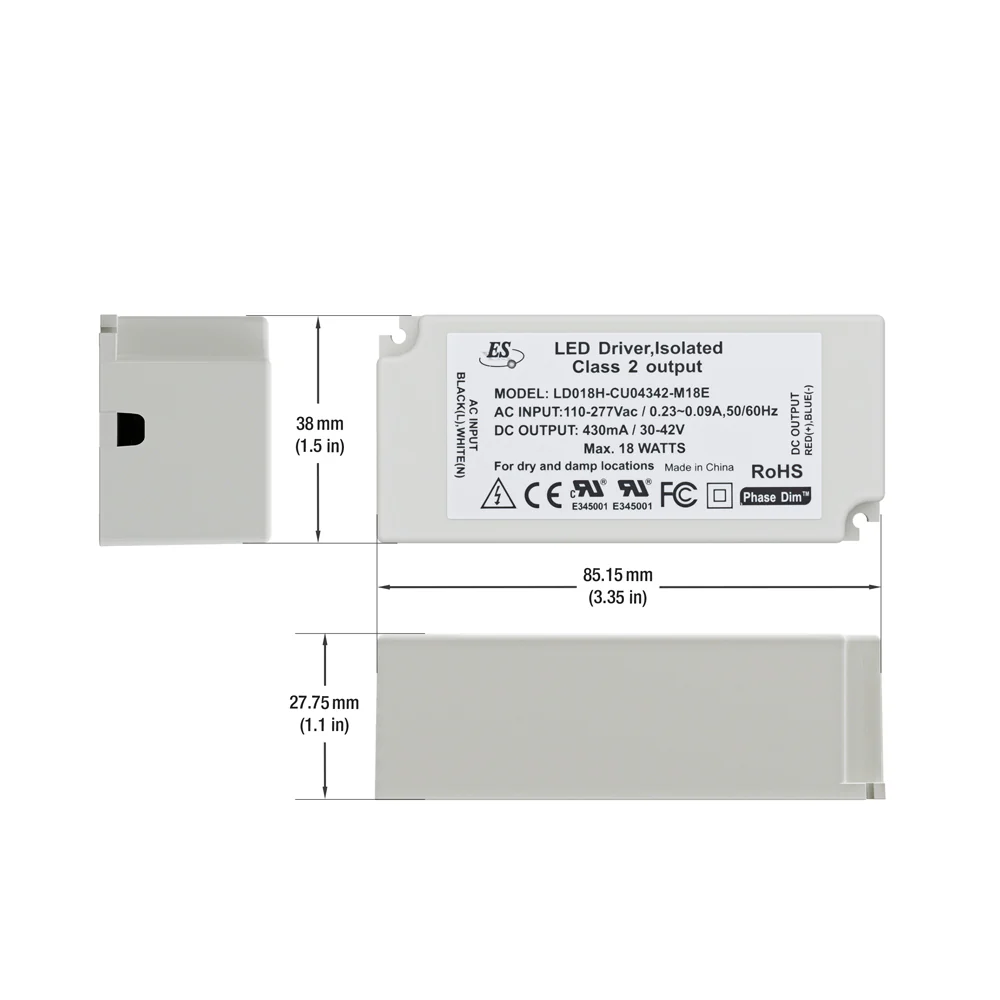

Dimensions	85.1 x 27.7 x 38mm (3.3 x 1.1 x 1.5in)
Certification

Suitable for operation with main supply Dimmer

suitable for DRY and DAMP locations



Features:

• Constant current LED driver for stable and reliable power supply to LED lighting applications
• Input voltage: 120V AC
• Input current: 0.23A at 60 Hz frequency
• Regulated output current: 430mA
• Maximum output power: 18W
• Output voltage range: 30-42V DC, suitable for various LED lights with different voltage requirements within this range
• Dimmable for precise brightness control
• Class 2/Class II certified for safety and reliability
• Compact dimensions: 85.1 x 27.7 x 38mm (3.3 x 1.1 x 1.5in)
• Easy installation
• Versatile and suitable for a wide range of lighting applications
