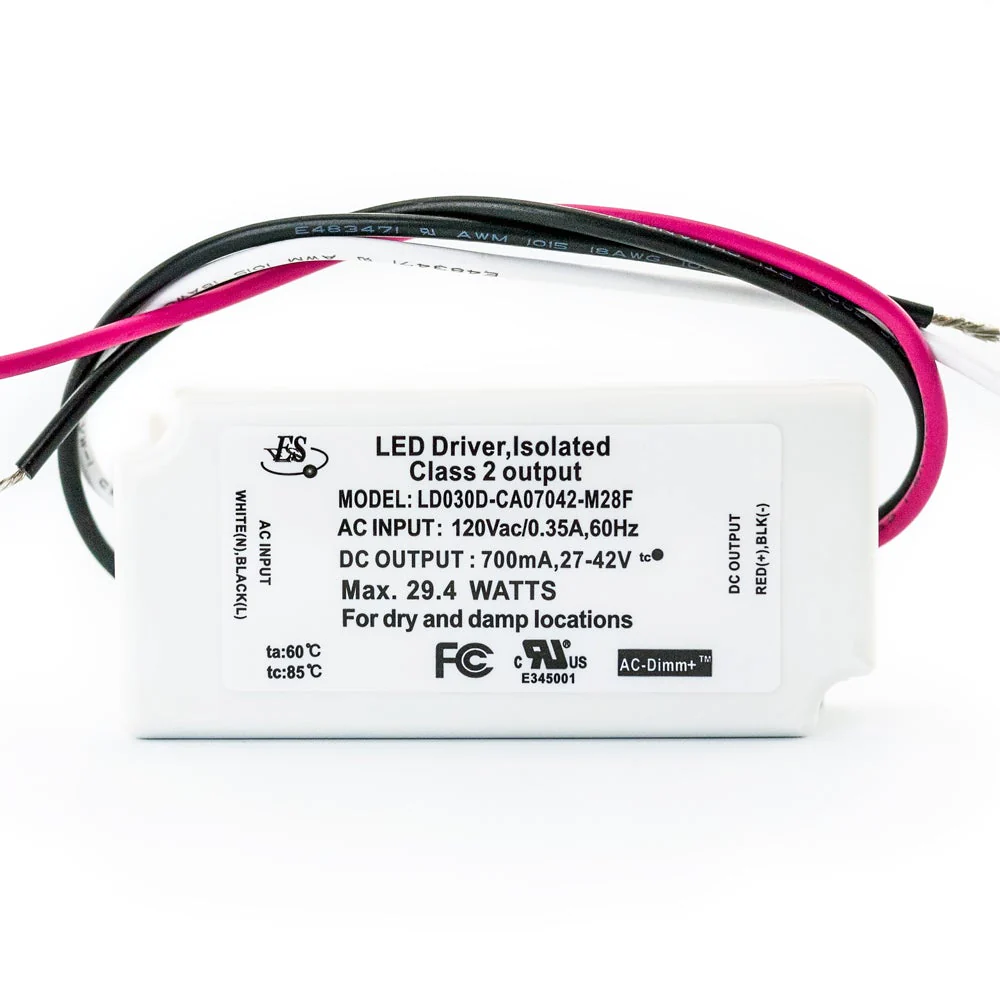

Model	LD030D-CA07042-M28F
Input Voltage	120V AC
Input Current	0.35A
Frequency	60Hz

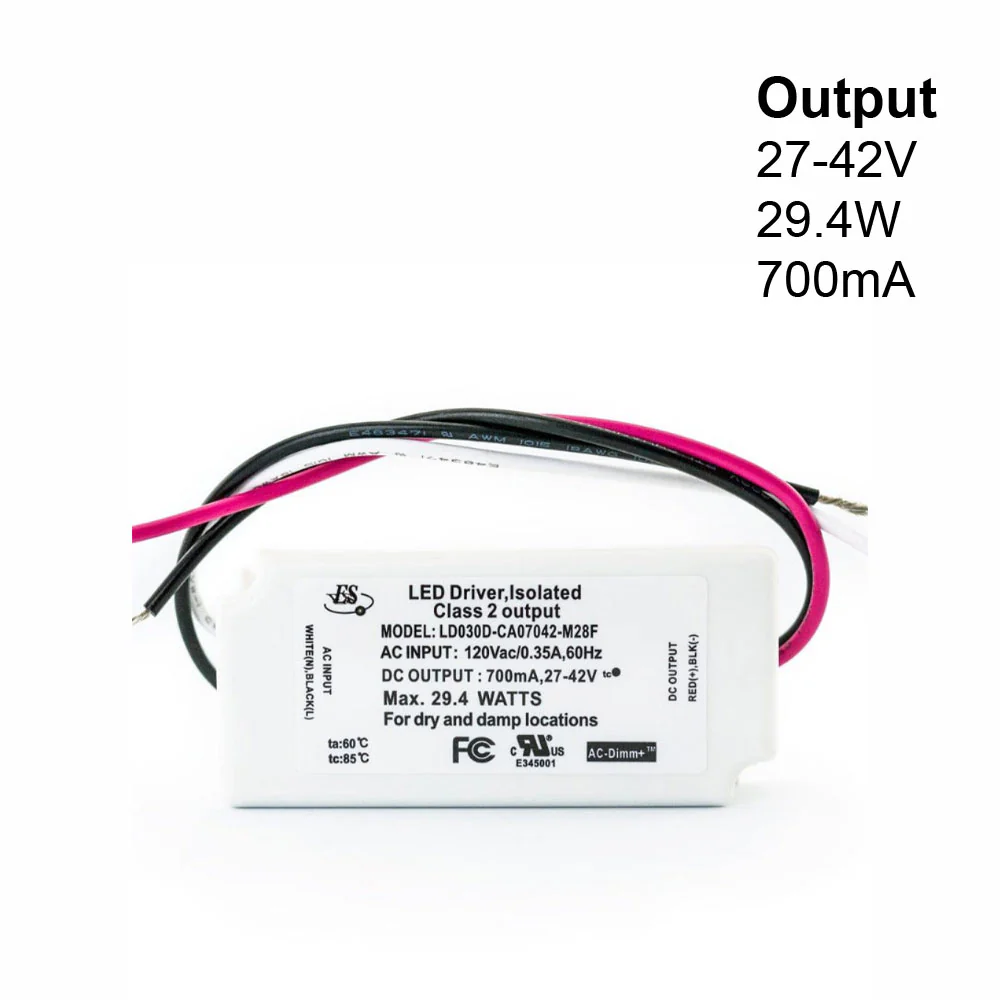

Output Voltage	27-42V DC
Output Regulated Current	700mA
Output Power	29.4W max
Dimmable	Yes

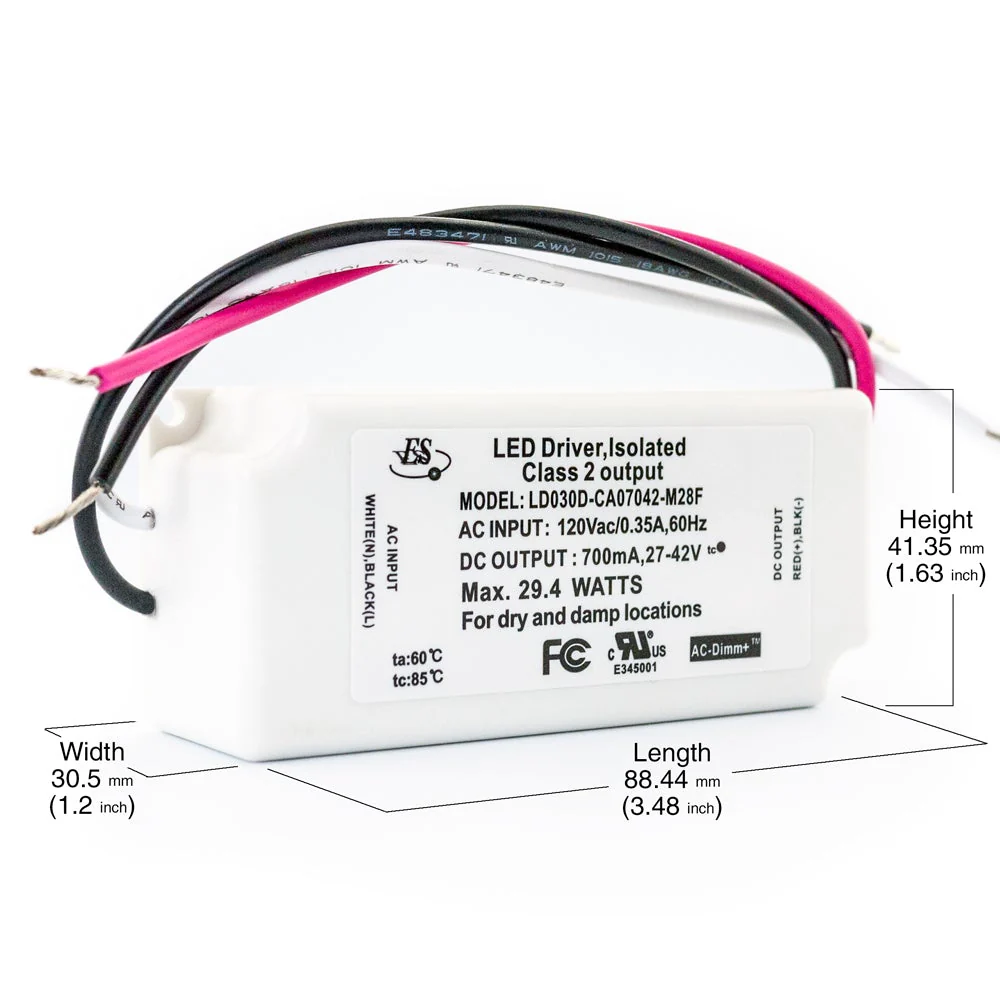

Dimensions	88.44 x 30.5 x 41.35mm (3.48x1.2x1.63 in)
Class Certification	Class 2 Power Supply
Certification

Features:

• The ES LD030D-CA07042-M28F Constant Current LED Driver is designed to provide constant current to LED lighting systems.
• It offers an output regulated current of 700mA and an output voltage range of 27-42V DC.
• The maximum output power of the driver is 29.4W.
• It operates with an input voltage of 120V AC and an input current of 0.35A.
• The driver supports dimming functionality, allowing for brightness control of the LED lights.
• With dimensions of 88.44 x 30.5 x 41.35mm (3.48x1.2x1.63 in), it is compact and space-saving.
• The driver is certified as Class 2 Power Supply, meeting safety standards for electrical equipment.
• It is suitable for various applications in commercial and residential settings.
