Model	PCD-16-700A
Input voltage	100-120 VAC
Input Current	0.40A
Output voltage	16-24V DC
Power	16W
Output regulated current	700mA
Dimmable	Yes
IP Rating	IP42
Class Certification	Class 2
Dimensions	83 x 56.84 x 29.30 mm (3.26x2.23x1.15 in)
Certification

Features:

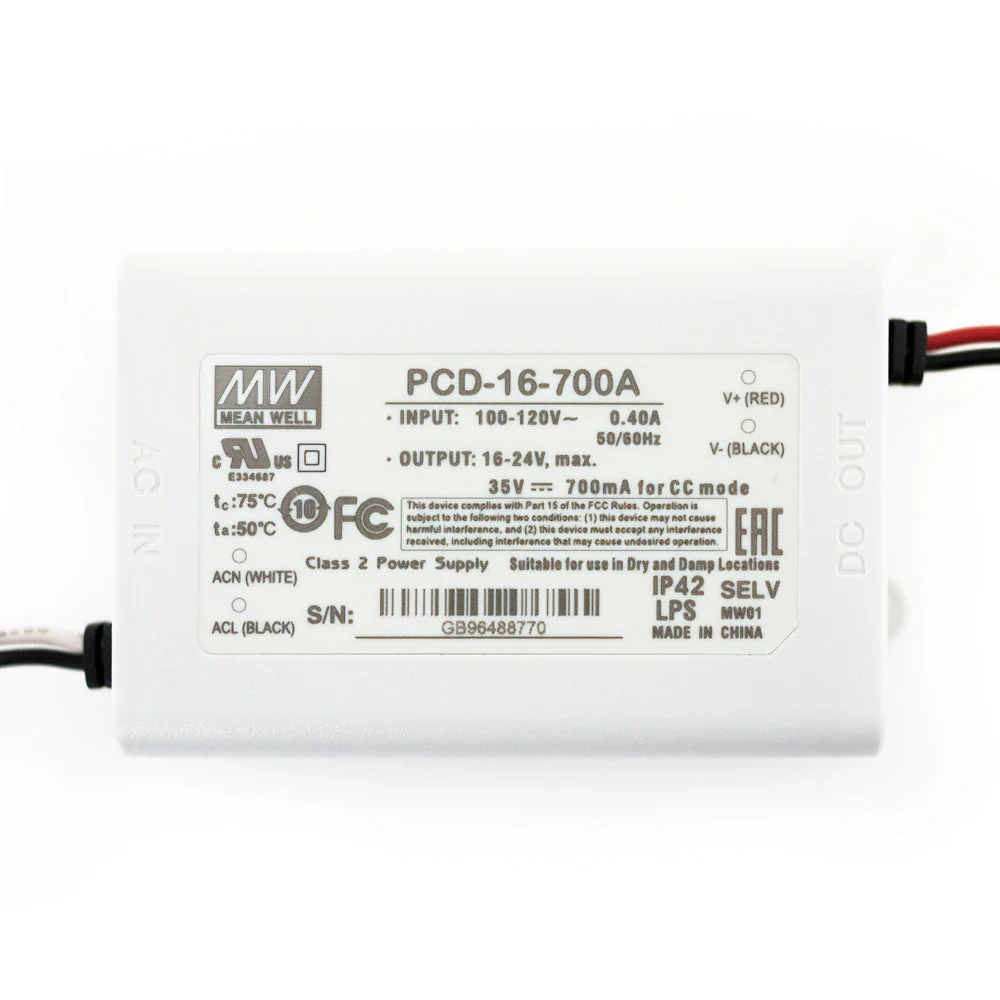

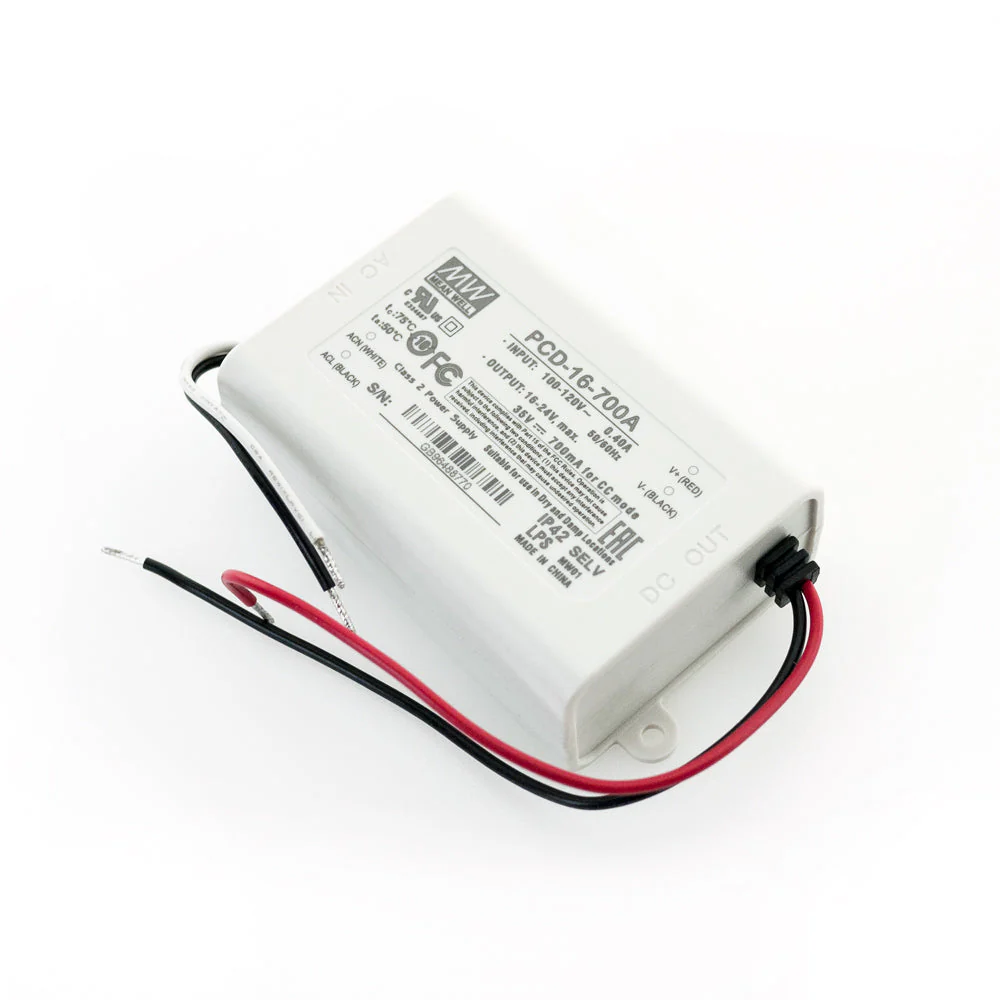

• The Mean Well PCD-16-700A is a constant current LED driver.
• The driver has an input voltage range of 100-120 VAC and an input current of 0.40A.
• It provides a regulated output current of 700mA with a selectable output voltage range of 16-24V DC.
• The maximum output power of the driver is 16W, which is suitable for a range of LED lighting applications.
• The PCD-16-700A is dimmable and can be used with a dimming system to adjust the brightness of the connected LED lighting system.
• The driver has an IP42 rating, making it protected against dust and water spray from any direction.
• It is also Class 2 certified, meeting safety standards for use in low voltage applications.
