Model	PCD-25-1400A
Input Voltage	100-120V AC
Input Current	0.60A
Frequency	50/60Hz
Output Voltage	12-18V DC
Output Regulated Current:	1400mA
Output Power	25W
Dimmable	Yes
IP Rating	IP30
Dimensions	83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
Class Certification	Class 2/ Class II
Certification

Features:

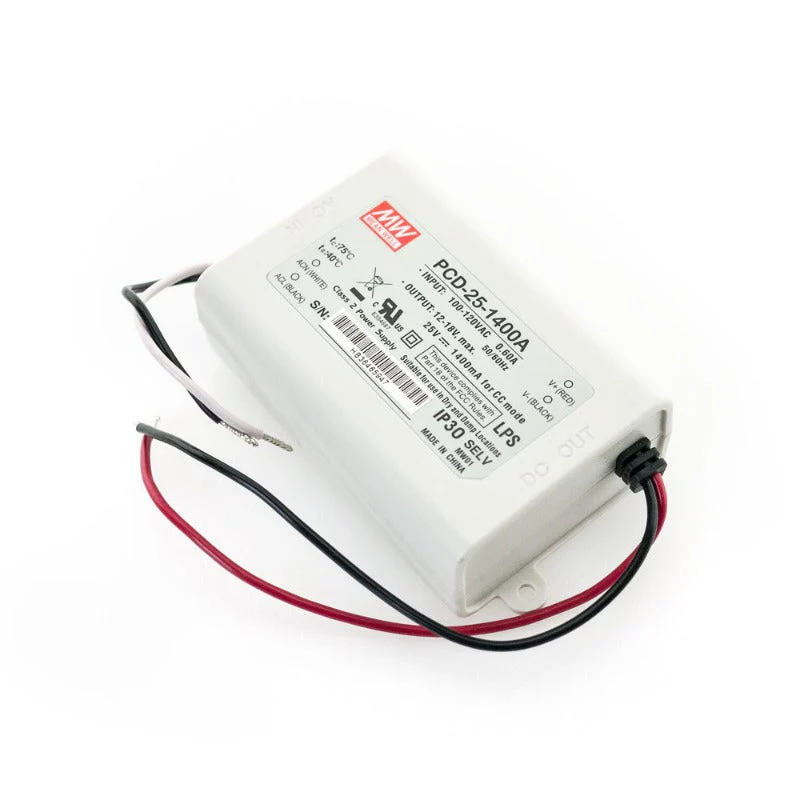

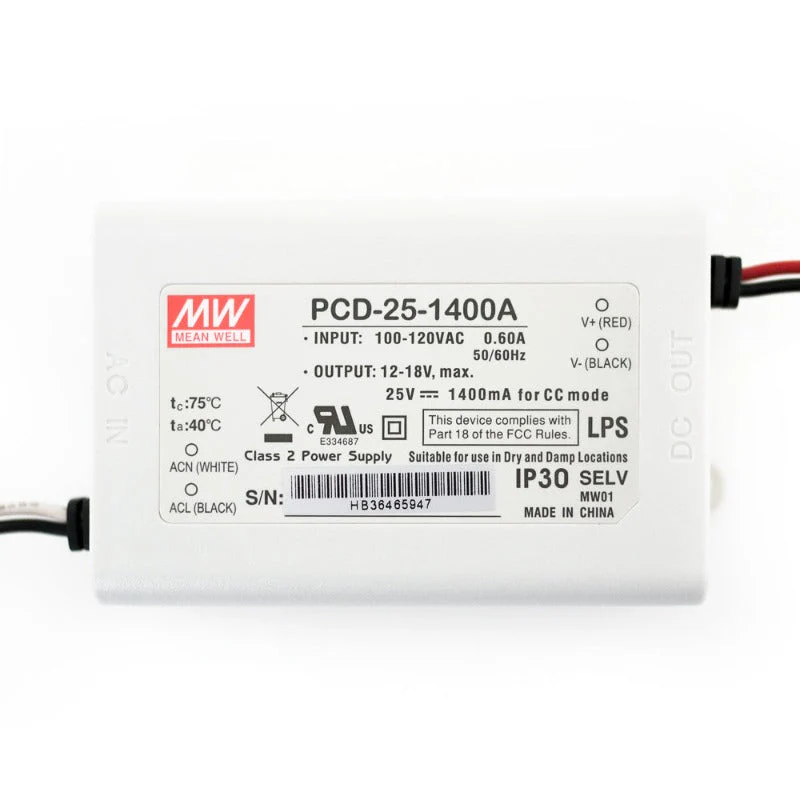

• The Mean Well PCD-25-1400A is a constant current LED driver that provides a regulated power supply to LED lights.
• It operates within an input voltage range of 100-120V AC, with an input current of 0.60A and a frequency of 50/60Hz.
• The output voltage of this LED driver ranges from 12-18V DC, providing a regulated current of 1400mA and an output power of 25W.
• It is dimmable, allowing users to adjust the brightness of their LED lights as desired.
• The PCD-25-1400A has an IP30 rating, making it suitable for indoor use and protected against dust.
