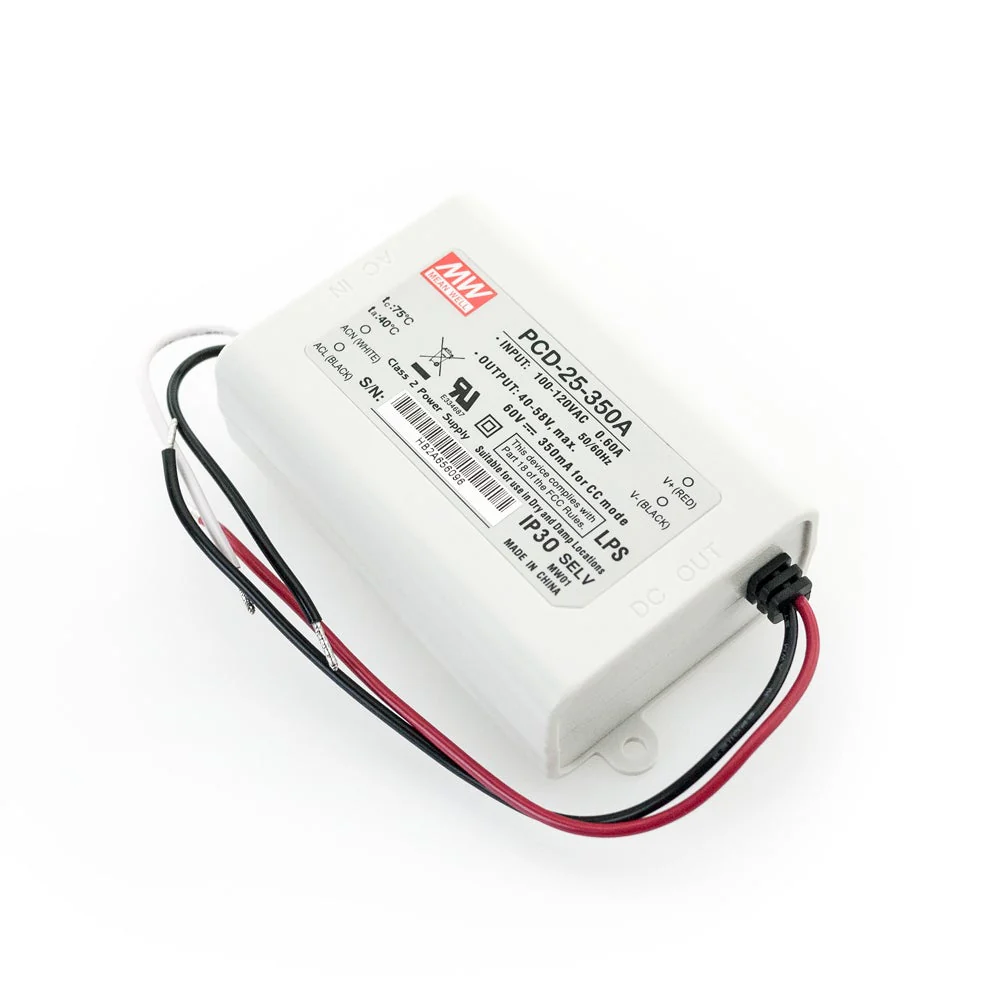

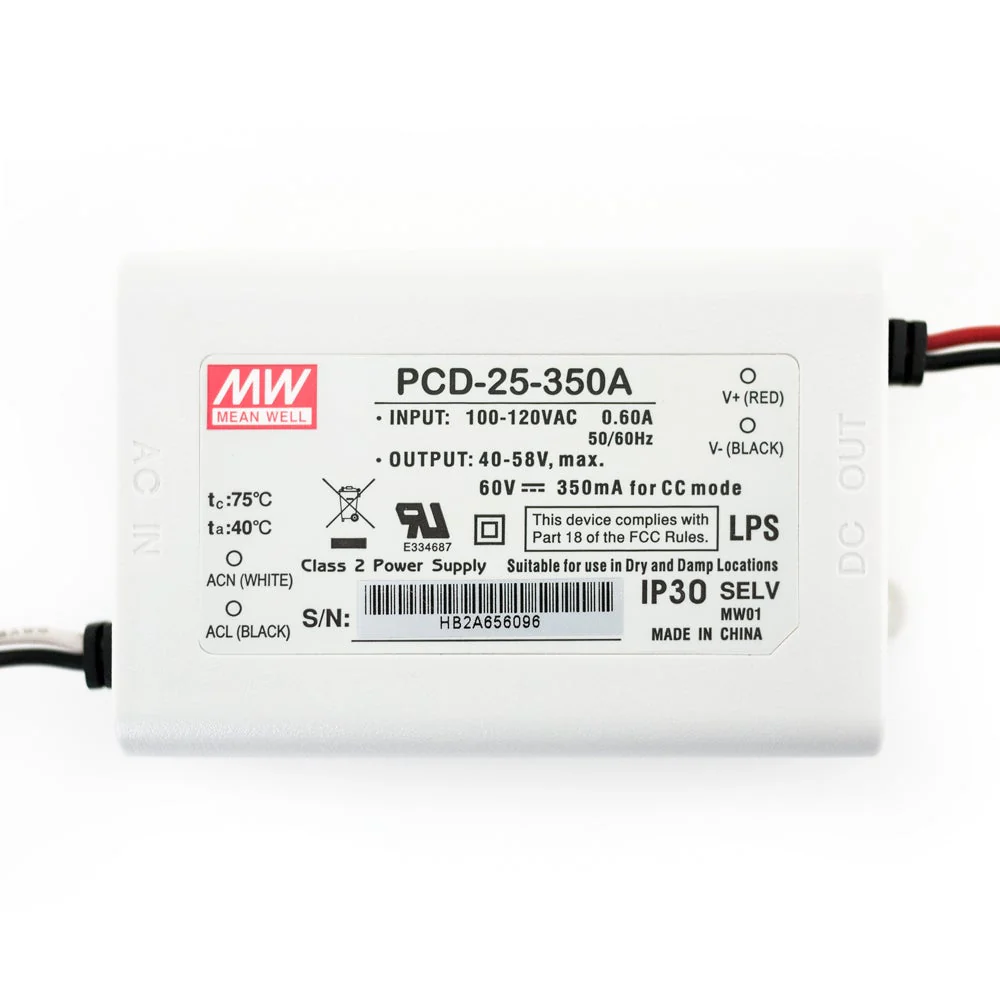

Mean well PCD-25-350A Constant Current LED Driver, 350mA 40-58V 20.3W

Product image 1
1 / 4

Mean well PCD-25-350A Constant Current LED Driver, 350mA 40-58V 20.3W


Model PCD-25-350A
Input Voltage 100-120V AC
Input Current 0.60A
Frequency 50/60Hz
Output Voltage 40-58V DC (60V max)
Output Regulated Current: 350mA
Output Power 20.3W
Dimmable Yes
IP Rating IP30 (Indoor Rated)
Ambient Temperature (Tc) 75°C
Case Temperature (Ta) 40°C
Dimensions 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
Class Certification Class 2/ Class II
Certification

Applicable for dry and damp locations
Works with AC phase-cut dimming,  Leading Edge and Trailing Edge Dimmers
Short-circuit and over-temperature protection


Features:

  • Mean Well PCD-25-350A Constant Current LED Driver
  • Regulated current: 350mA, output power: 20.3W
  • Input voltage range: 100-120V AC, input current: 0.60A, frequency: 50/60Hz
  • Output voltage range: 40-58V DC (max 60V DC)
  • Not dimmable, suitable for indoor use only (IP30 rating)
  • Ambient temperature rating: 40°C, case temperature rating: 75°C
  • Compact dimensions: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
  • Class 2/Class II certified for safety
  • Provides regulated current and power for LED lighting applications.
$10.57

Original: $35.24

-70%
Mean well PCD-25-350A Constant Current LED Driver, 350mA 40-58V 20.3W—

$35.24

$10.57

Product Information

Shipping & Returns

Description


Model PCD-25-350A
Input Voltage 100-120V AC
Input Current 0.60A
Frequency 50/60Hz
Output Voltage 40-58V DC (60V max)
Output Regulated Current: 350mA
Output Power 20.3W
Dimmable Yes
IP Rating IP30 (Indoor Rated)
Ambient Temperature (Tc) 75°C
Case Temperature (Ta) 40°C
Dimensions 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
Class Certification Class 2/ Class II
Certification

Applicable for dry and damp locations
Works with AC phase-cut dimming,  Leading Edge and Trailing Edge Dimmers
Short-circuit and over-temperature protection


Features:

  • Mean Well PCD-25-350A Constant Current LED Driver
  • Regulated current: 350mA, output power: 20.3W
  • Input voltage range: 100-120V AC, input current: 0.60A, frequency: 50/60Hz
  • Output voltage range: 40-58V DC (max 60V DC)
  • Not dimmable, suitable for indoor use only (IP30 rating)
  • Ambient temperature rating: 40°C, case temperature rating: 75°C
  • Compact dimensions: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
  • Class 2/Class II certified for safety
  • Provides regulated current and power for LED lighting applications.
