5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 96W

Product image 1
1 / 5

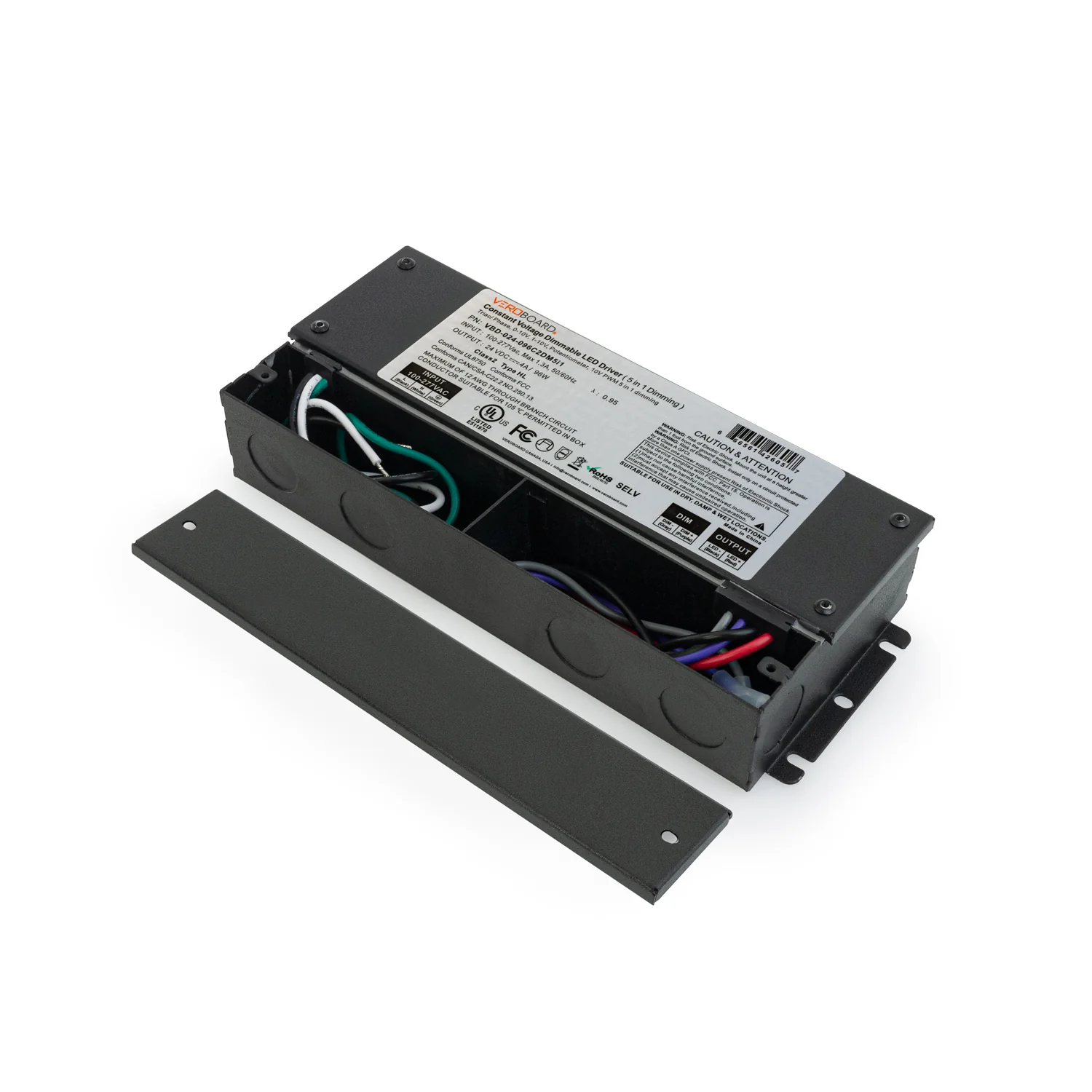

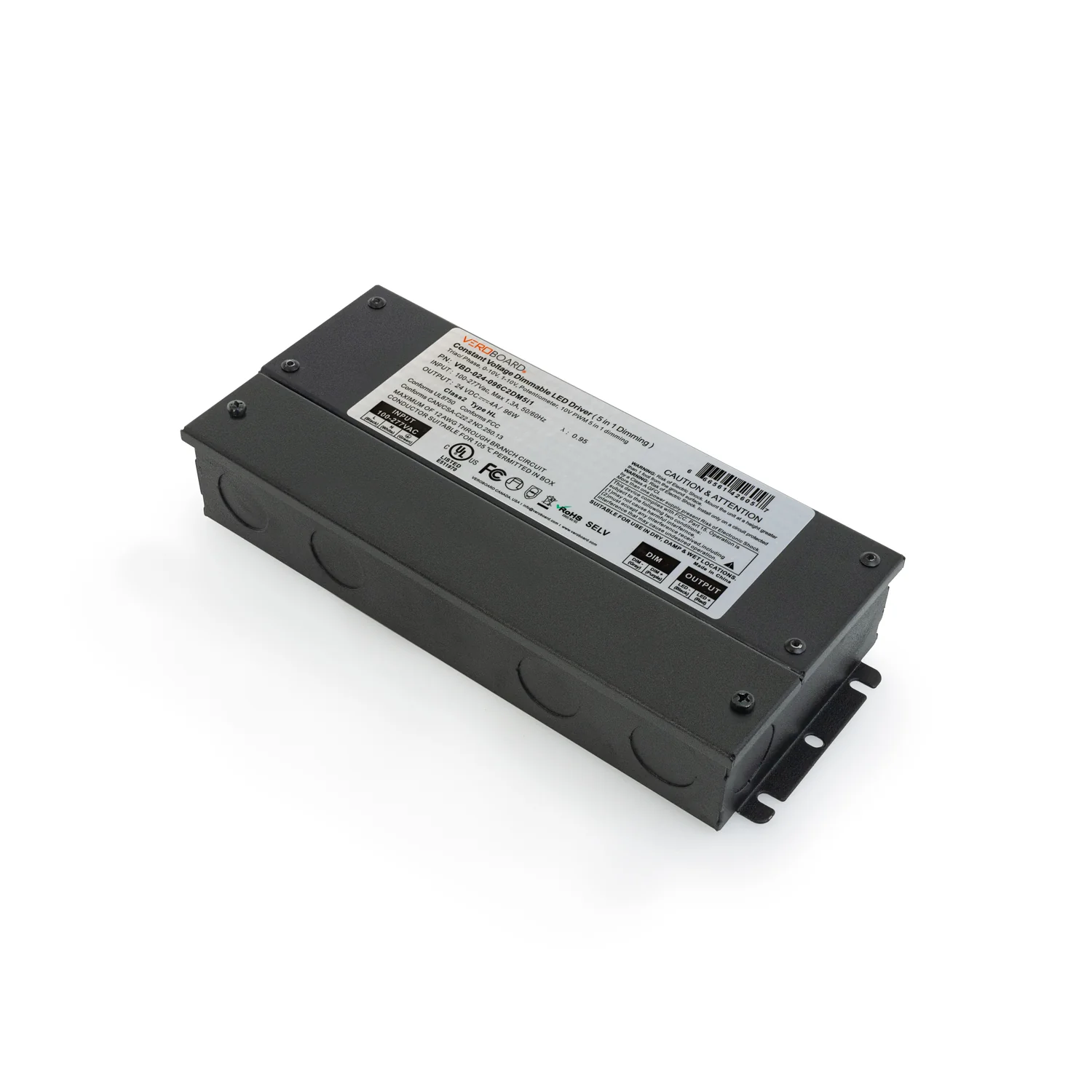

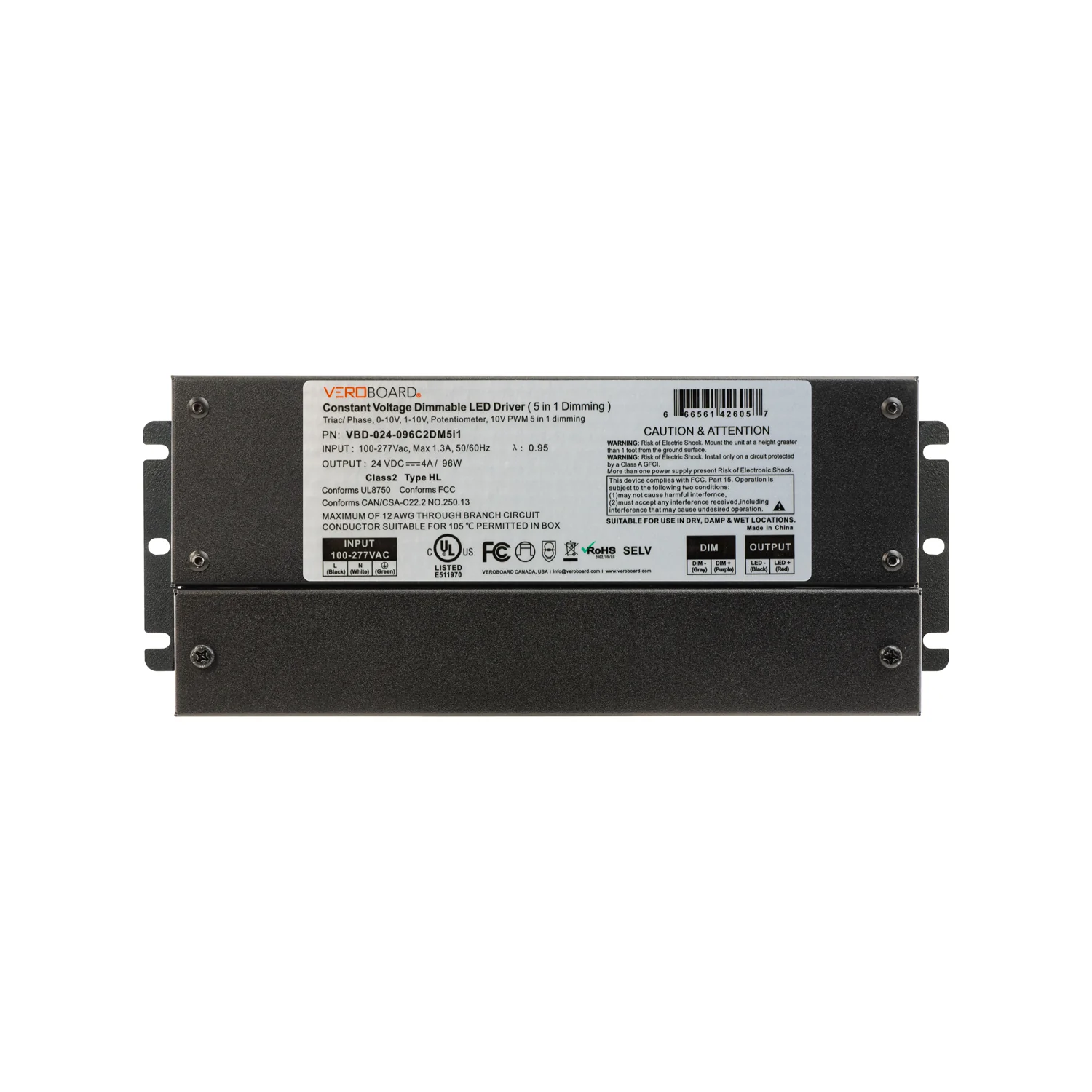

5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 96W

Model VBD-024-096C2DM5i1
Input Voltage 100-277V AC
Input Current 1.3A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 24V DC
Output regulated Current 4A
Output Power 96W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)
Dimensions  221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

  • 5-in-1 dimming LED driver supporting Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming methods
  • Input voltage range: 100-277V AC, input current: 1.3A, frequency range: 50-60 Hz
  • High power factor (>0.95) for efficient power utilization
  • Output voltage: 24V DC, regulated current: 4A
  • Maximum output power: 96W
  • Class 2 certified for safe operation in low voltage applications
  • IP67 rating for use in dry, damp, and wet locations
  • Compact dimensions: 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
  • UL and FCC certified for electrical safety and compliance with electromagnetic interference standards.



$37.89

Original: $126.29

-70%
5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 96W—

$126.29

$37.89

Product Information

Shipping & Returns

Description

Model VBD-024-096C2DM5i1
Input Voltage 100-277V AC
Input Current 1.3A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 24V DC
Output regulated Current 4A
Output Power 96W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)
Dimensions  221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
Class Certification Class 2
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers



Features:

  • 5-in-1 dimming LED driver supporting Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming methods
  • Input voltage range: 100-277V AC, input current: 1.3A, frequency range: 50-60 Hz
  • High power factor (>0.95) for efficient power utilization
  • Output voltage: 24V DC, regulated current: 4A
  • Maximum output power: 96W
  • Class 2 certified for safe operation in low voltage applications
  • IP67 rating for use in dry, damp, and wet locations
  • Compact dimensions: 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
  • UL and FCC certified for electrical safety and compliance with electromagnetic interference standards.
