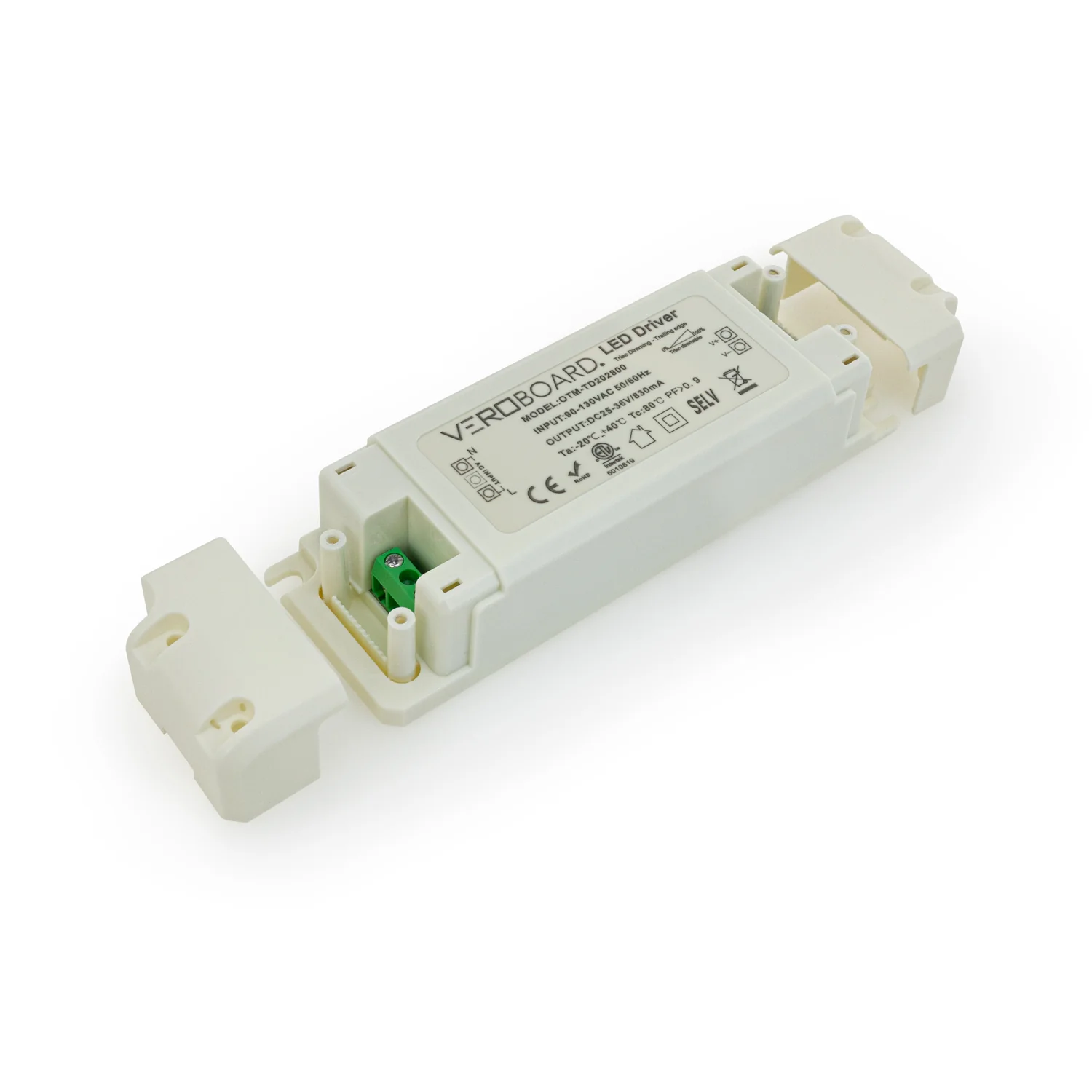

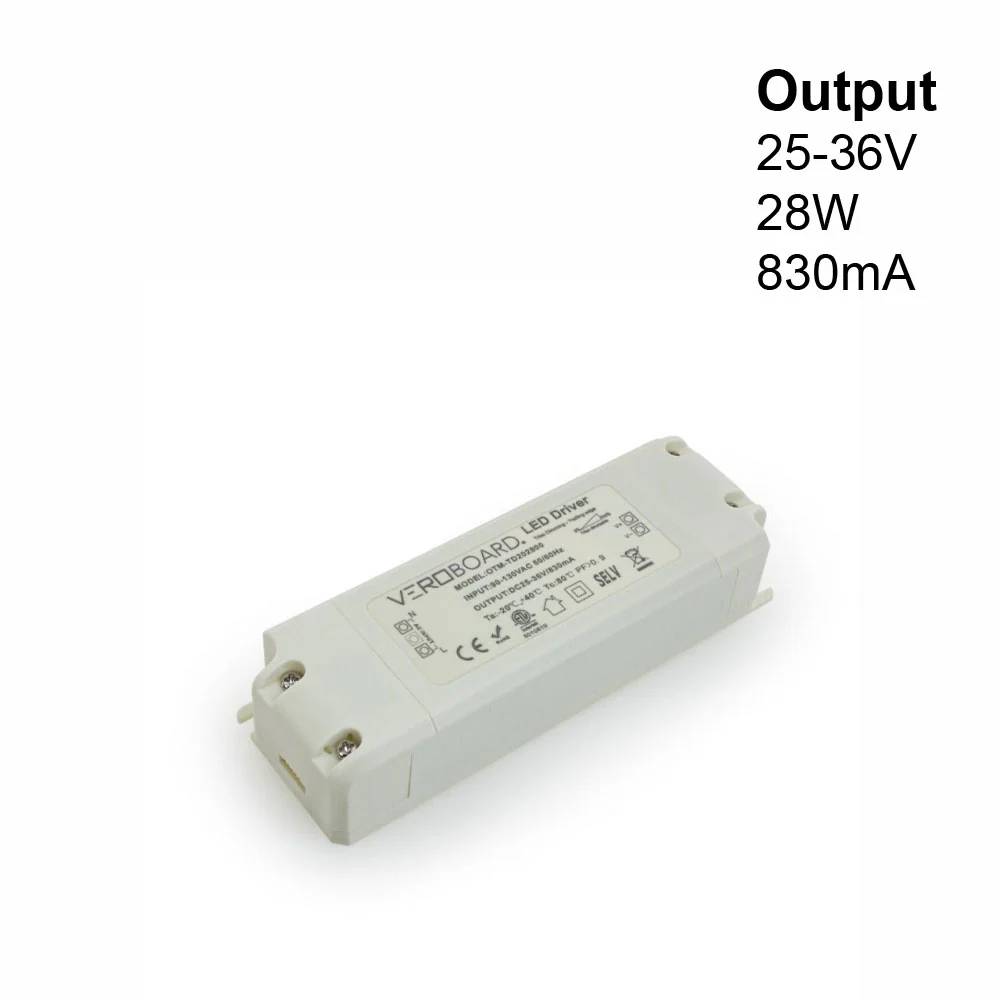

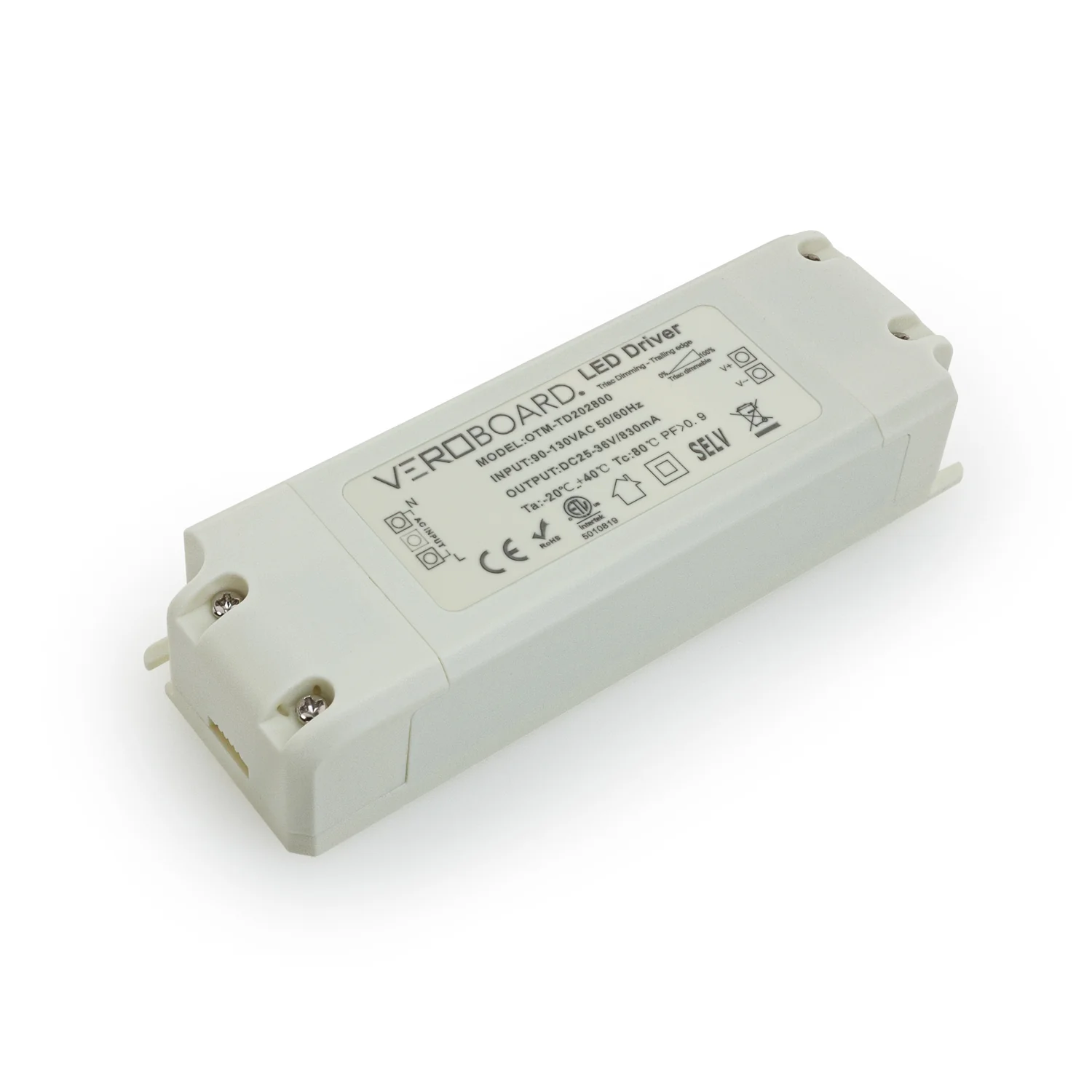

OTM-TD202800-830-28 Constant Current Triac Dimming LED Driver, 830mA 25-36V 28W
| Model | OTM-TD202800-830-28 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 830mA |
| Output Power | 28W |
| Output Voltage | 25-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |

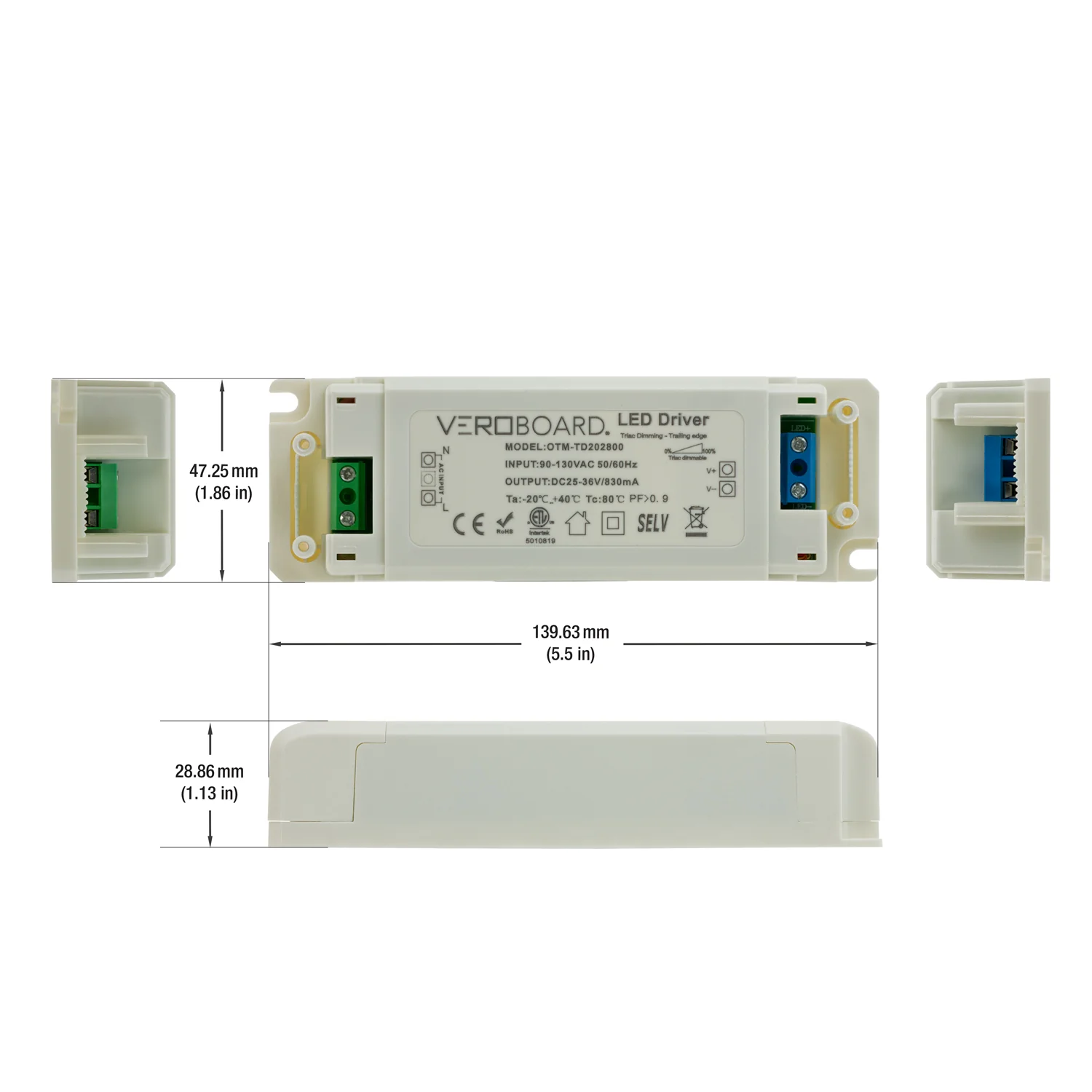

| Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- Constant Current LED Driver (Model: OTM-TD202800-830-28)
- Regulates current for LED light sources, provides constant current of 830mA
- Output power: 28W
- Compatible with LED light sources operating at 25-36V DC
- Input voltage: 90-130V AC, input current: 0.9A, input frequency: 50-60Hz
- High power factor (PF > 0.95) and efficiency (> 85%) for effective operation
- Dimmable driver compatible with Triac dimming systems
- Operating temperature: up to 40°C (ambient), case temperature: up to 90°C
- IP20 rating, suitable for dry and damp locations
- Dimensions: 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in)
- Class 2 certified for low voltage safety standards
- Suitable for various LED lighting applications.
$34.51
OTM-TD202800-830-28 Constant Current Triac Dimming LED Driver, 830mA 25-36V 28W—
$34.51
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | OTM-TD202800-830-28 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 830mA |
| Output Power | 28W |
| Output Voltage | 25-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |
| Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
| Class Certification | Class 2 |
| Certification |
|
Features:
- Constant Current LED Driver (Model: OTM-TD202800-830-28)
- Regulates current for LED light sources, provides constant current of 830mA
- Output power: 28W
- Compatible with LED light sources operating at 25-36V DC
- Input voltage: 90-130V AC, input current: 0.9A, input frequency: 50-60Hz
- High power factor (PF > 0.95) and efficiency (> 85%) for effective operation
- Dimmable driver compatible with Triac dimming systems
- Operating temperature: up to 40°C (ambient), case temperature: up to 90°C
- IP20 rating, suitable for dry and damp locations
- Dimensions: 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in)
- Class 2 certified for low voltage safety standards
- Suitable for various LED lighting applications.
